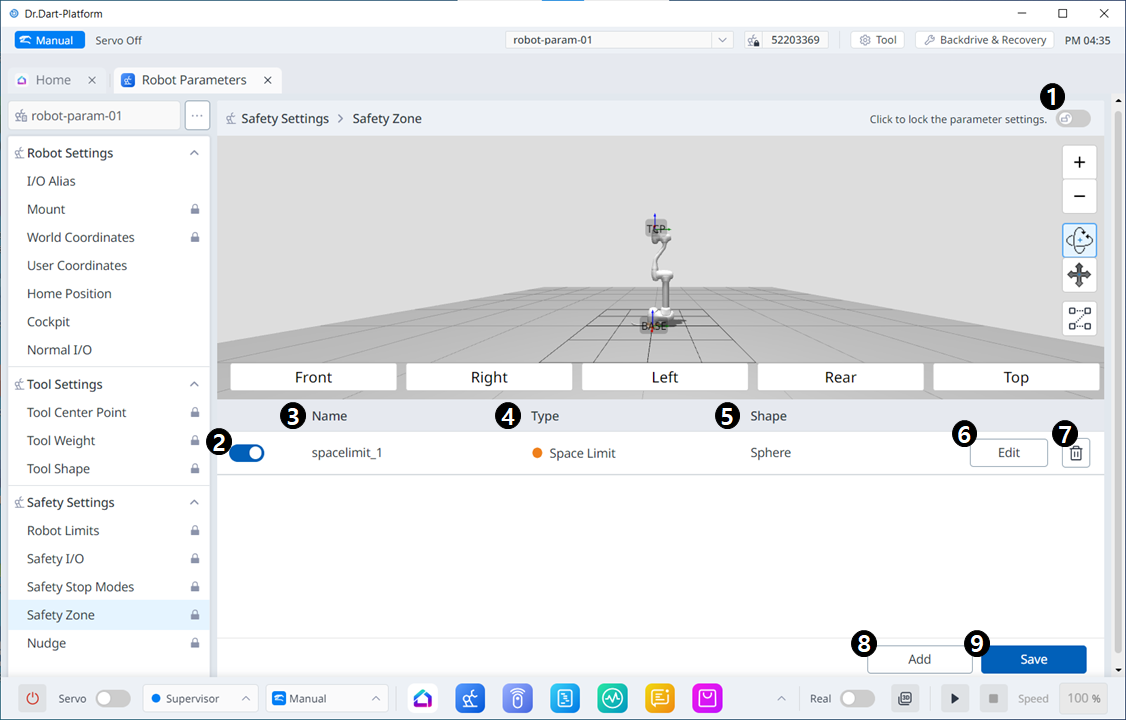

Safety Zone

Menu Items

	Item	Description
1	Lock Toggle Button	Used to lock the set value. The safety password is required for modifying the set value.
2	Choose Whether to Enable	This button allows you to apply/unapply the created Safety Zone.
3	Zone Name	The name given by the user when creating the Safety Zone
4	Zone Type	Safety Zone types (each type has different parameters to set) Space Limit Collaborative Zone Crushing Prevention Zone Collision Sensitivity Reduction Zone Tool Orientation Limit Zone Custom Zone
5	Zone Shape	Safety Zone shapes Cuboid Cylinder Sphere Tilted Cuobid Multi-plane Box
6	Edit	This button allows the settings of the created Safety Zone to be edited. Pressing this button brings up a pop-up that allows the Safety Zone to be edited.
7	Delete	This button allows the safe zone to be deleted.
8	Add	This button allows the safe zone to be added. This button brings up a pop-up that allows the safe zone to be added.
9	Save	This button allows any changes to the settings in relation to the Safety Zone to be saved.

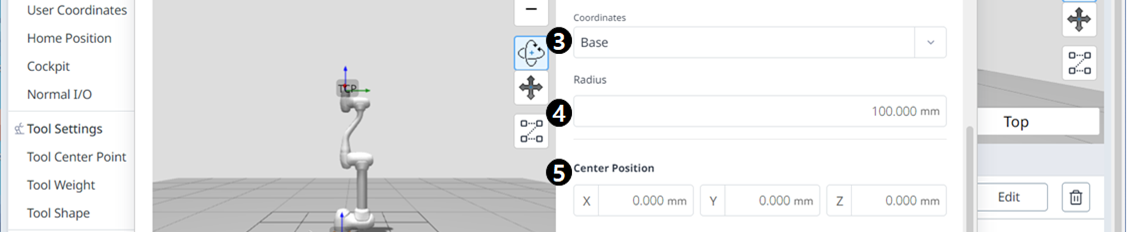

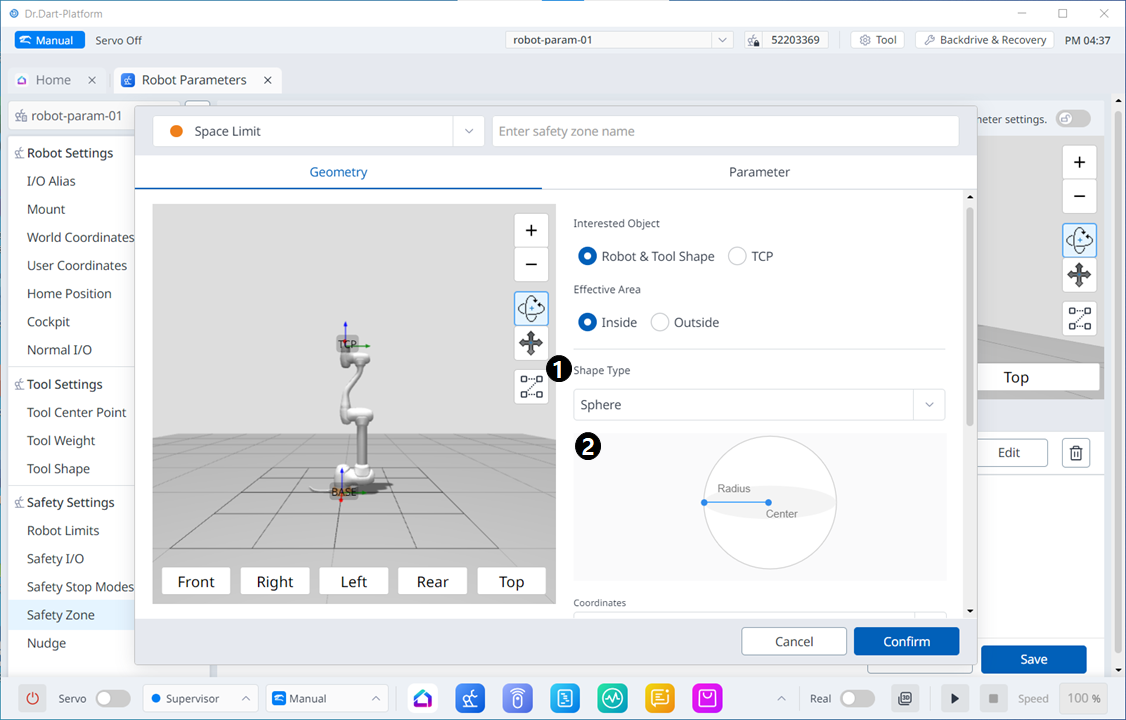

Sphere

Menu Items

	Item	Description
1	Shape Type	The desired Shape type can be selected from this drop-down.
2	Shape Image	This is the area where the image of the selected type is seen.
3	Coordinates	Either Base or World coordinates can be selected from this drop-down.
4	Radius	This is where the radius value is entered.
5	Center Position	The center value can be set in these fields for each of the X-, Y-, and Z-axes.

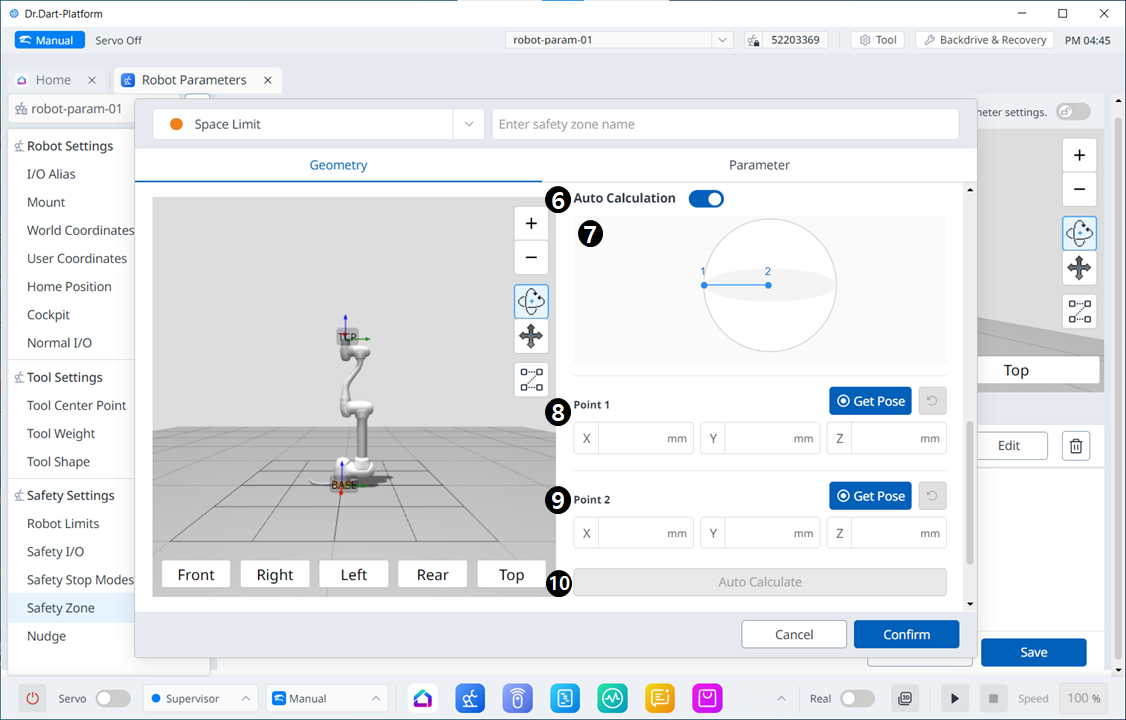

6	Auto Calculation	This button allows the Auto Measure option to be enabled.
7	Auto Calculation Image	This area is where the image required for Auto Measure is seen. This appears when the Auto Measure option is enabled.
8	Point 1	Each field is where the value for Point 1 is entered.
9	Point 2	Each field is where the value for Point 2 is entered.
10	Auto Calculate	This button allows Auto Measure to be triggered.

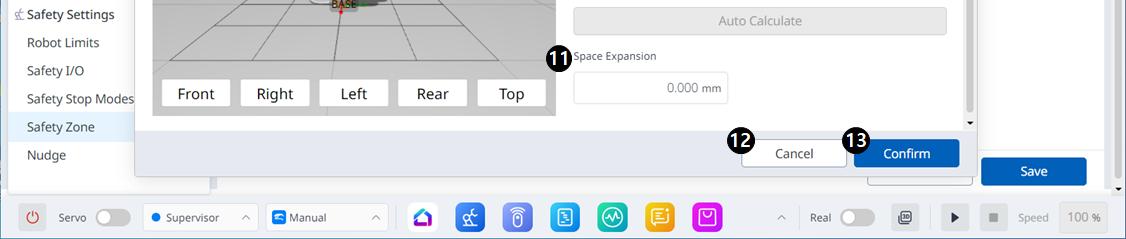

11	Space Expansion	This field is where the Space Expansion can be set.
12	Cancel	This button allows the setting to be canceled.
13	Confirm	This button allows you to confirm the setting.

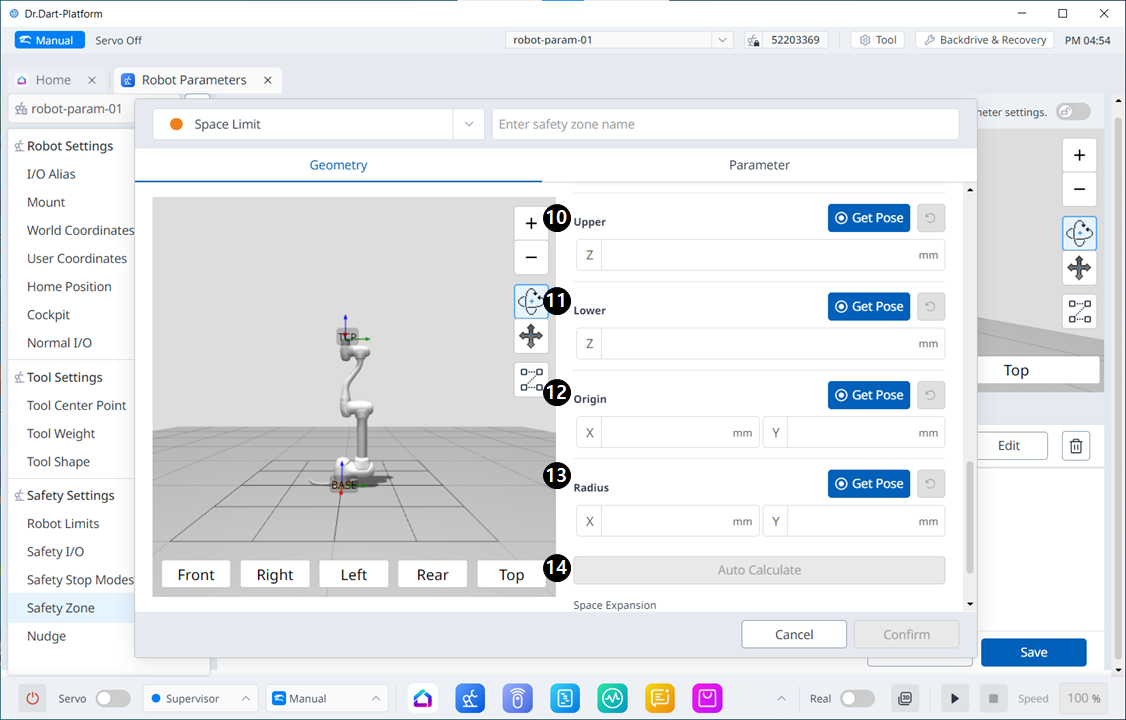

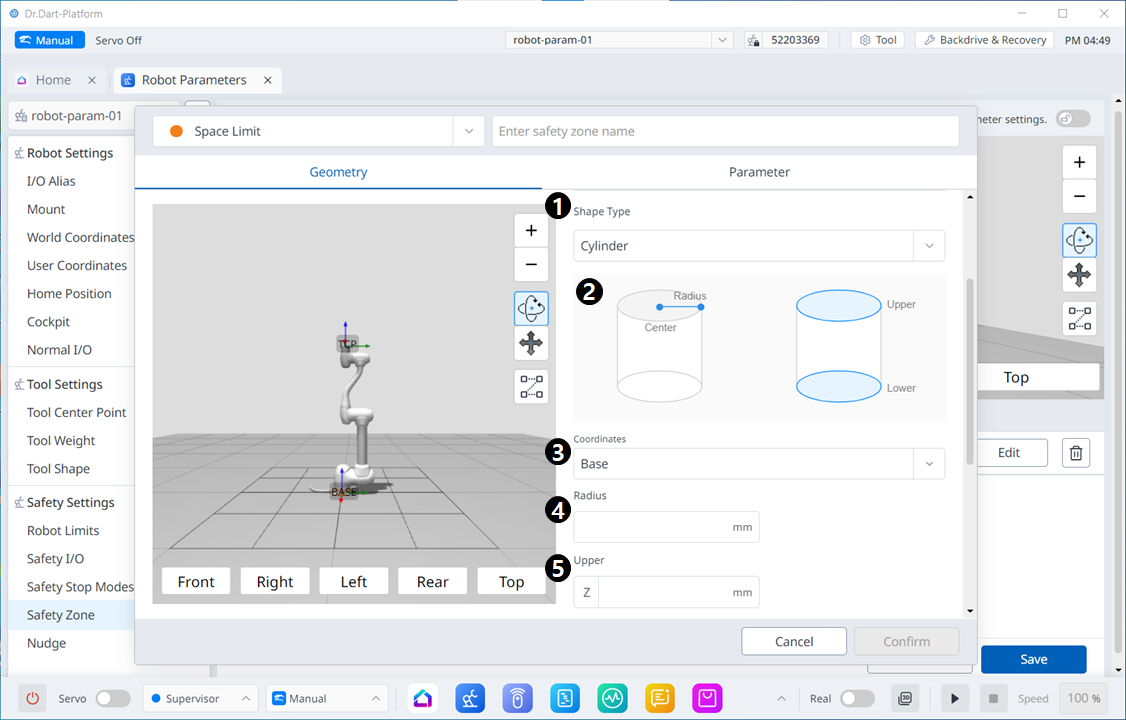

Cylinder

Menu Items

	Item	Description
1	Shape Type	The desired Shape type can be selected from this drop-down.
2	Shape Image	This is the area where the image of the selected type is seen.
3	Coordinates	Either Base or World coordinates can be selected from this drop-down.
4	Radius	This is where the radius value is entered.
5	Upper	This field is where the upper value is entered.

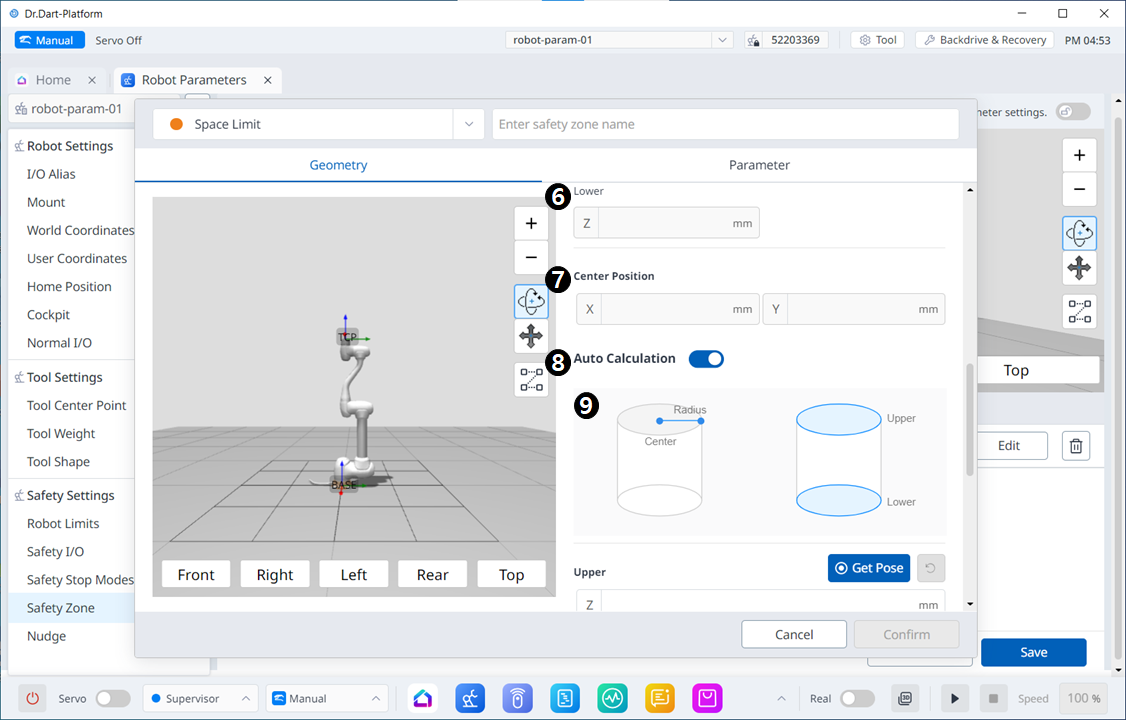

6	Lower	This field is where the lower value is entered.
7	Center Position	The center value can be set in these fields for each of the X- and Y-axes.
8	Auto Calculate	This button allows the Auto Measure option to be enabled.
9	Auto Calculate Image	This area is where the image required for Auto Measure is seen. This appears when the Auto Measure option is enabled.
10	Upper	This field is where the upper value is entered.
11	Lower	This field is where the lower value is entered.
12	Origin	This field is where the origin value is entered.
13	Radius	This field is where the radius value is entered.
14	Auto Calculate	This button allows the Auto Calculate to be executed.

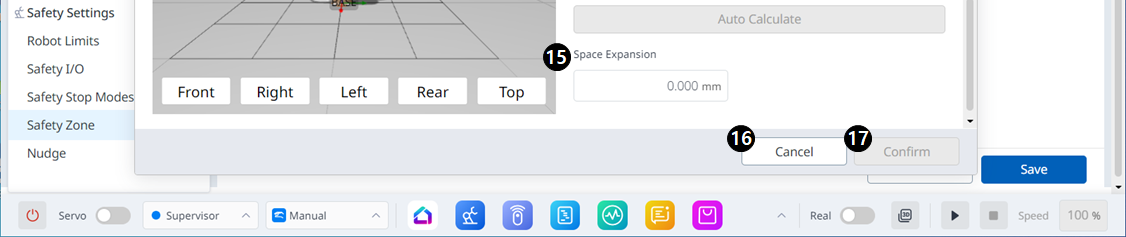

15	Space Expansion	This field is where the Space Expansion can be set.
16	Cancel	This button allows the setting to be canceled.
17	Confirm	This button allows you to confirm the setting.

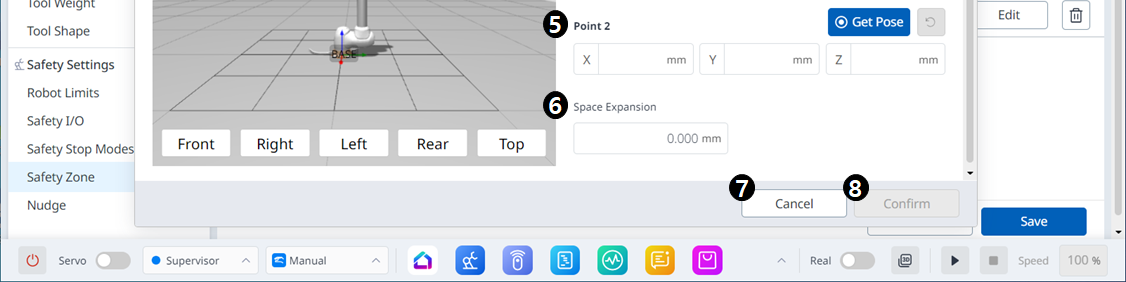

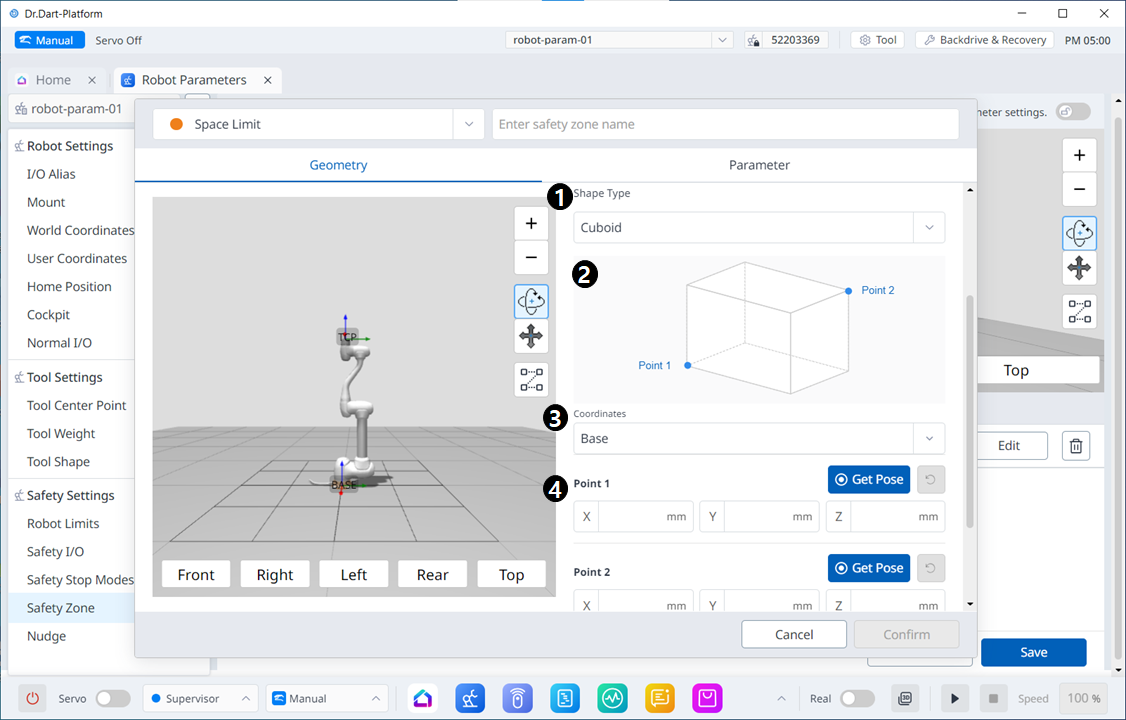

Cuboid

	Item	Description
1	Shape Type	The desired Shape type can be selected from this drop-down.
2	Shape Image	This is the area where the image of the selected type is seen.
3	Coordinates	Either Base or World coordinates can be selected from this drop-down.
4	Point 1	Each field is where the value for Point 1 is entered.
5	Point 2	Each field is where the value for Point 2 is entered.
6	Space Expansion	This field is where the Space Expansion can be set.
7	Cancel	This button allows the setting to be canceled.
8	Confirm	This button allows you to confirm the setting.

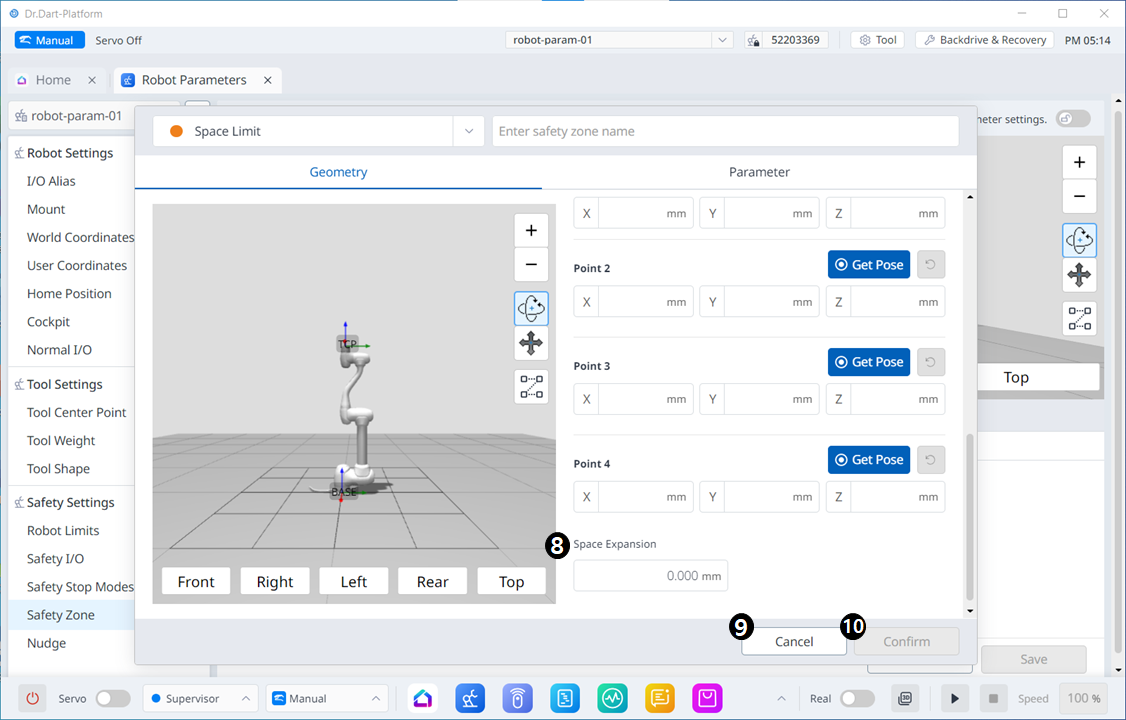

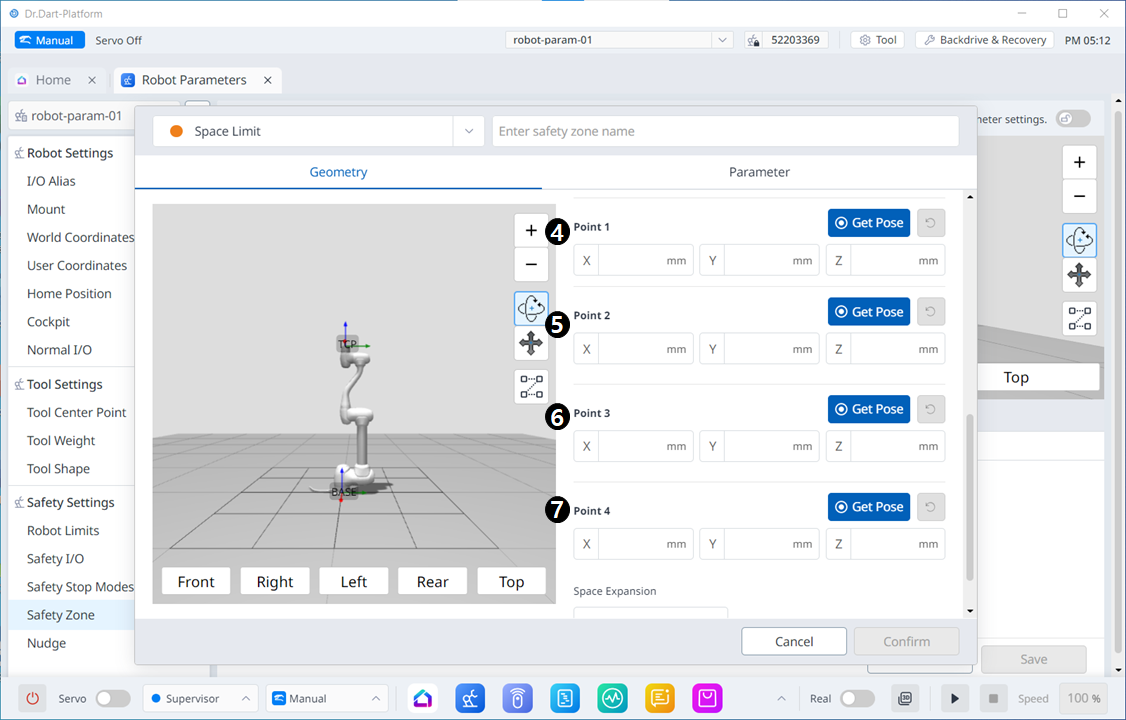

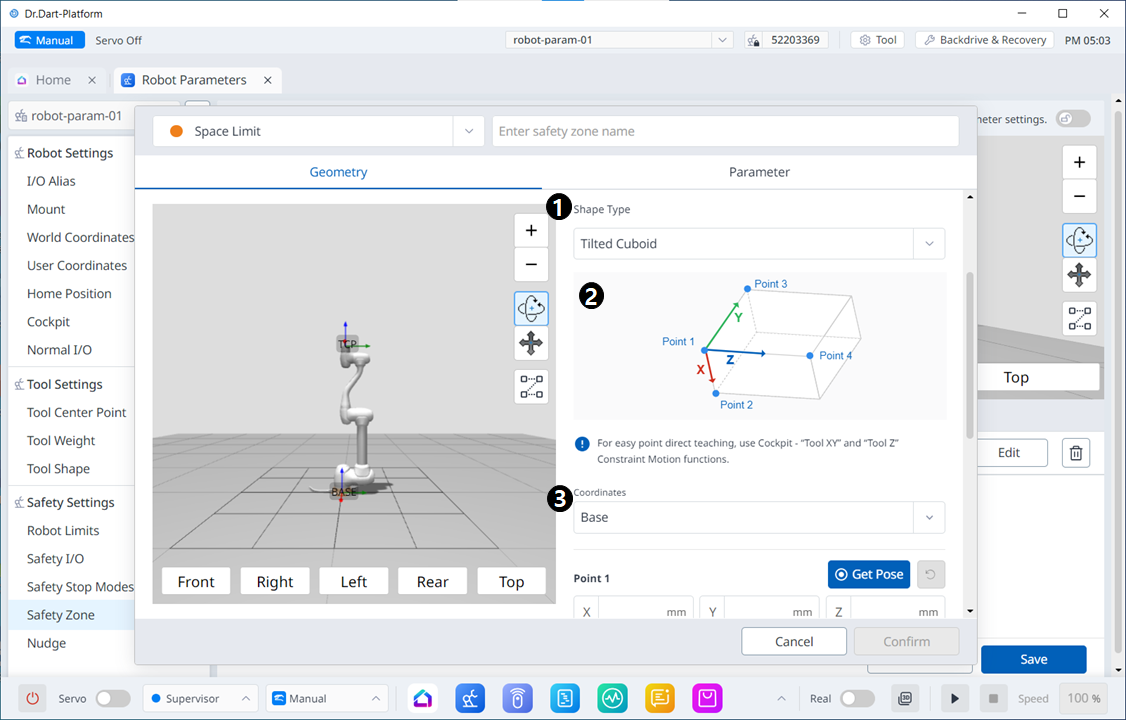

Tilted Cuboid

Menu Items

	Item	Description
1	Space Type	The desired Shape type can be selected from this drop-down.
2	Space Image	This is the area where the image of the selected type is seen.
3	Info. Message	This is an informative message required for the setting.
4	Coordinates	Either Base or World coordinates can be selected from this drop-down.
5	Point 1	Each field is where the value for Point 1 is entered.
6	Point 2	Each field is where the value for Point 2 is entered.
7	Point 3	Each field is where the value for Point 3 is entered.
8	Point 4	Each field is where the value for Point 4 is entered.
9	Space Expansion	This field is where the Space Expansion can be set.
10	Cancel	This button allows the setting to be canceled.
11	Confirm	This button allows you to confirm the setting.

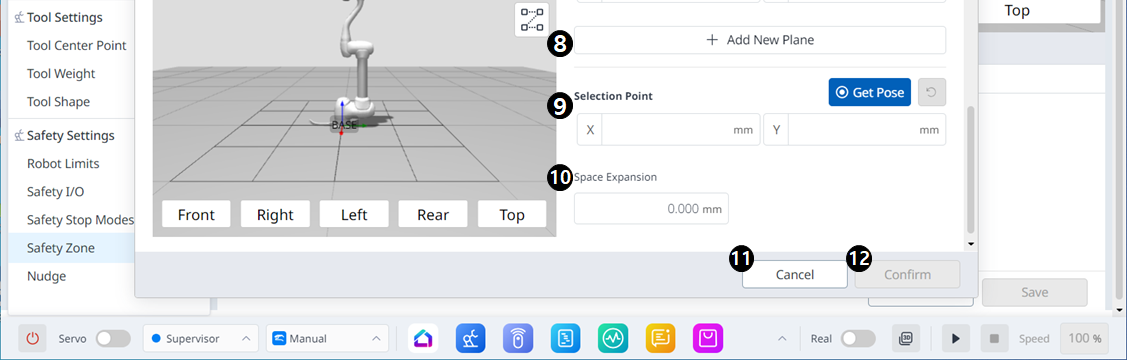

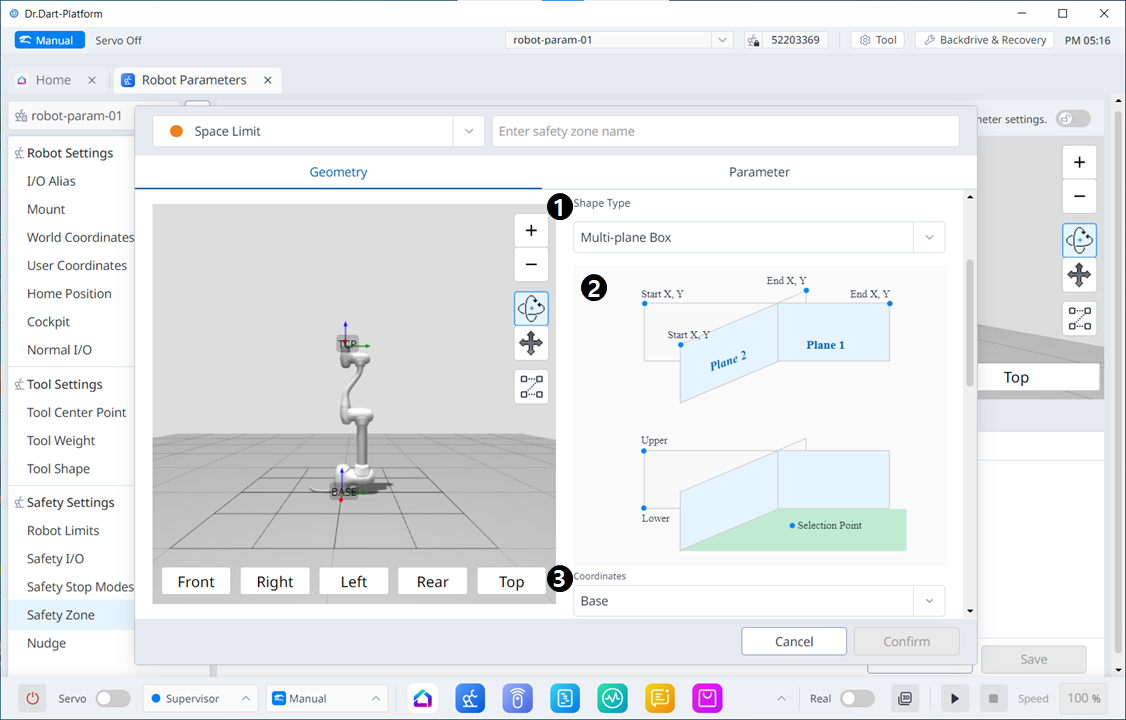

Multi-plane Box

Menu Items

	Item	Description
1	Shape Type	The desired Shape type can be selected from this drop-down.
2	Shape Image	This is the area where the image of the selected type is seen.
3	Coordinates	Either Base or World coordinates can be selected from this drop-down.

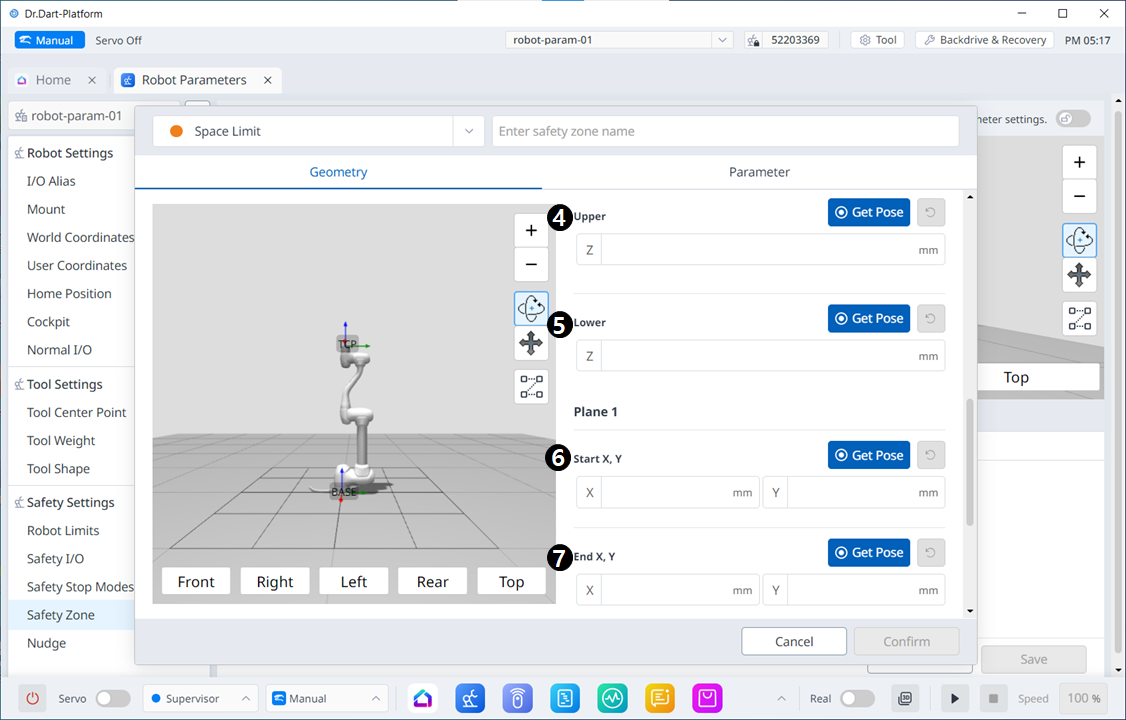

4	Upper	This field is where the upper value is entered.
5	Lower	This field is where the lower value is entered.
6	Plane Start X, Y	This field is where the start point of the plane is entered.
7	Pane End X,Y	This field is where the end point of the plane is entered.
8	Add New Plane	Clicking this button adds a new plane.
9	Selection Point	Each field is where the Selection Point values are entered.
10	Space Expansion	This field is where the Space Expansion can be set.
11	Cancel	This button allows the setting to be canceled.
12	Confirm	This button allows you to confirm the setting.
