Store Module

Tapping the Store module redirects you to the Dr.Dart-Store link.

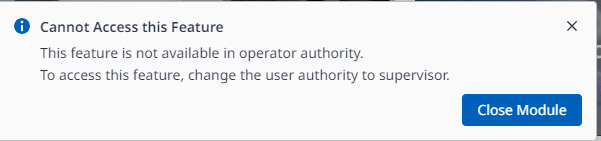

At this time, the Store module can only be executed at the administrator level.

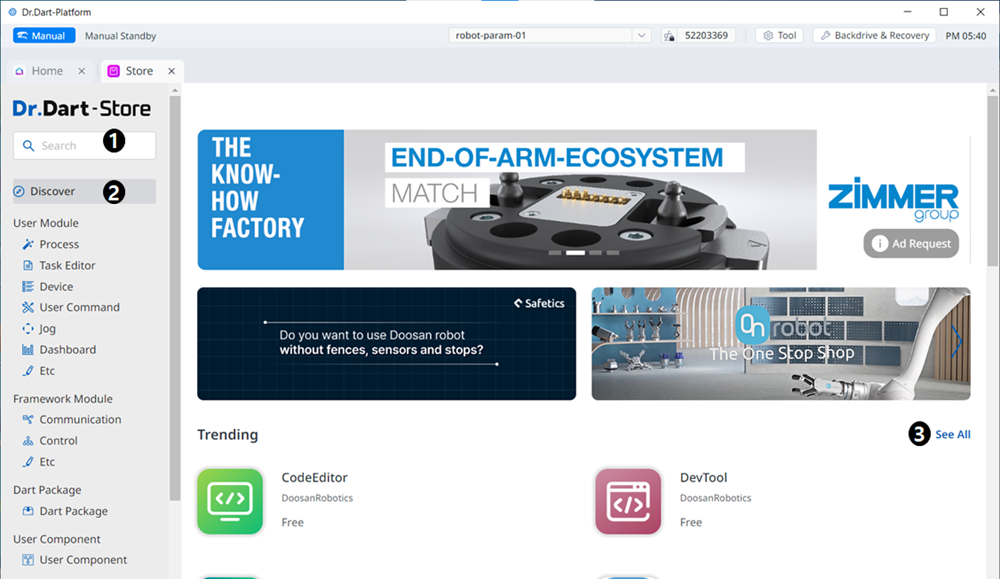

Menu Items

Item

Description

1

Search

This field is where you search for any module.

2

Menu Bar

The categorization is based on the features of the module.

3

Trending

This is the Home screen, where the currently popular modules are seen.

4

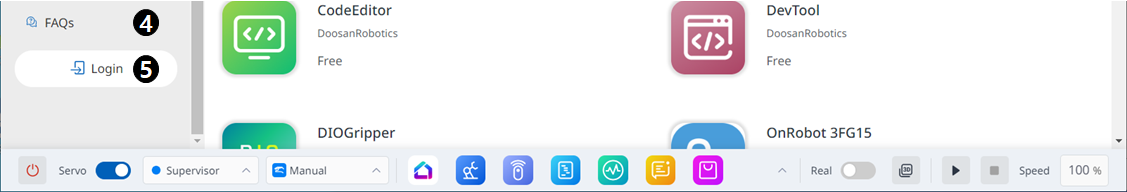

FAQs

This is where you can find the frequently asked questions regarding the Store.

5

Account

This is your account, which you can tap to manage your account settings and upload/download modules.


In the existing legacy Dart-Platform, communication modules were installed as standard, but in the current Dr.Dart-Platform 3, there are communication modules that must be downloaded through the Store separately from the basic modules.



The list below is modules that are installed as standard in Dr.Dart-Platform3.

  • TCPModbusSlave

  • ModbusMaster

  • Serial

  • TCP

  • AdmittanceControl

  • ImpedanceControl

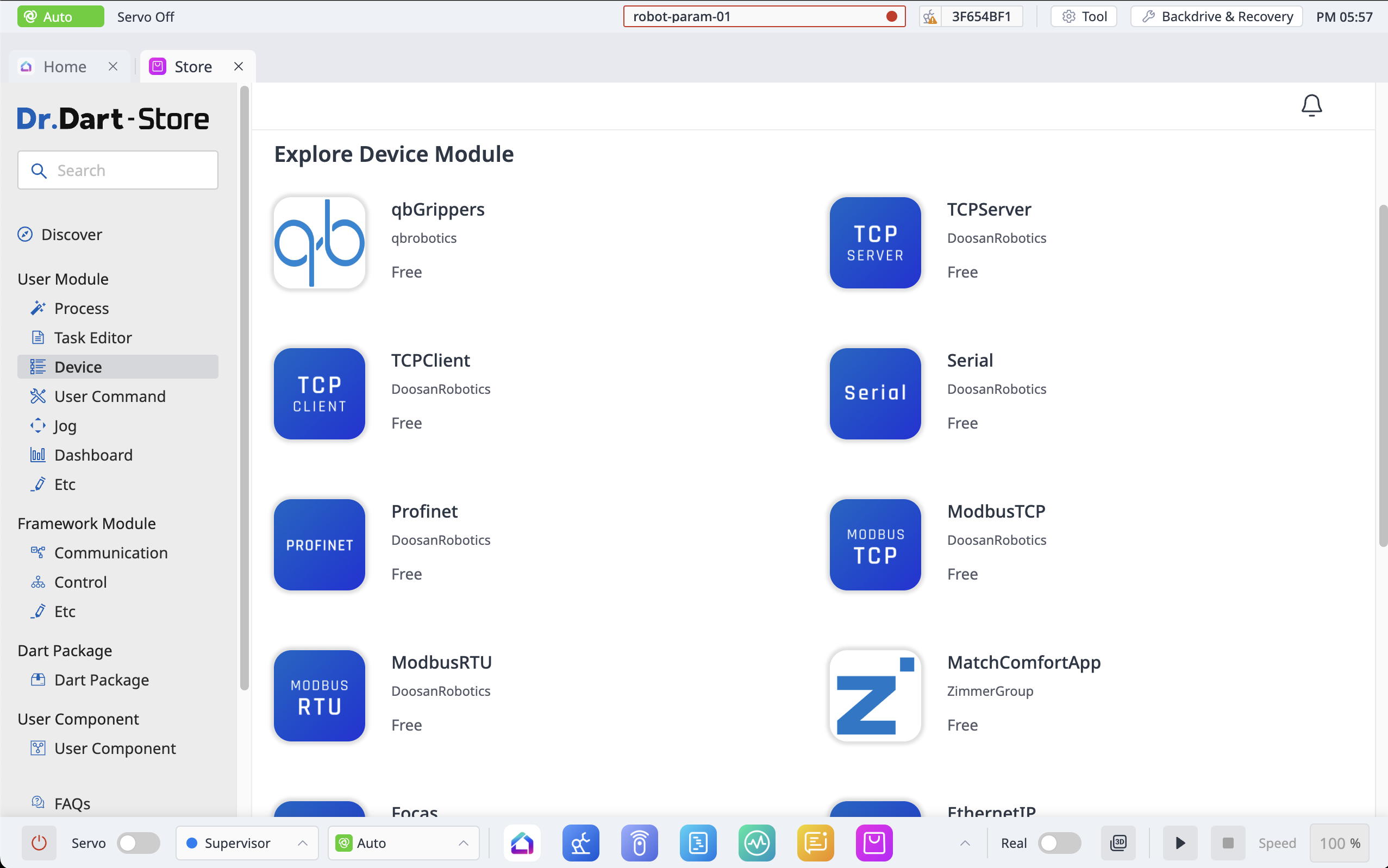

You can download the modules below from the User Module > Device section of the Store.

  • Focas Master

  • Digital IO TEST

  • ModbusTCP Master

  • ModbusRTU Master

  • TCP Client

  • TCP Server

  • Serial

  • IndustrialEthernet GPR Test
