Data Restoration

To perform data restoration, you will need Dart-Platform v3 with SDK v3 or higher and the .dbr file saved from Data Conversion.

Restoring Data from a File

  1. Install the Dart-Bridge module in Dart-Platform v3.

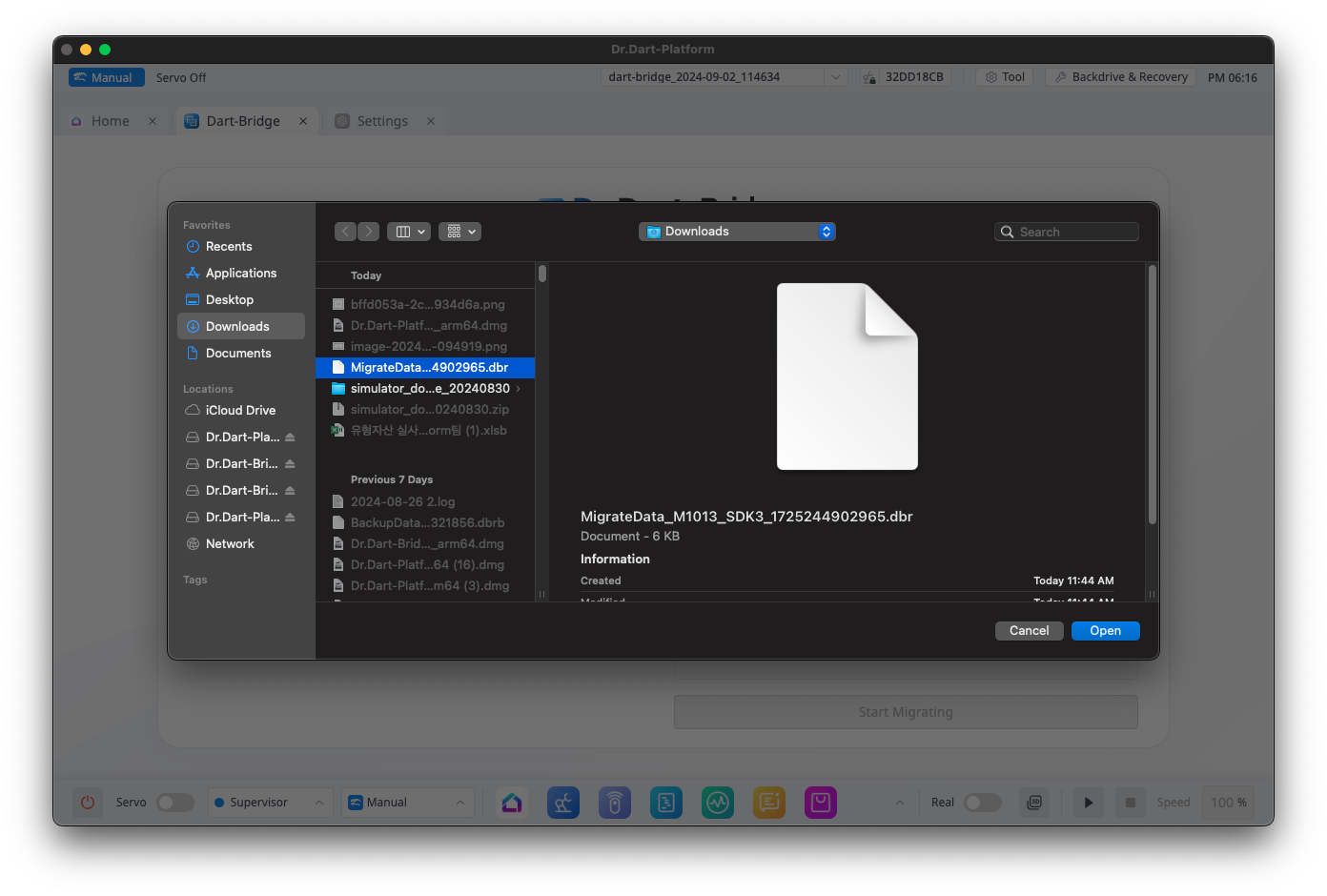

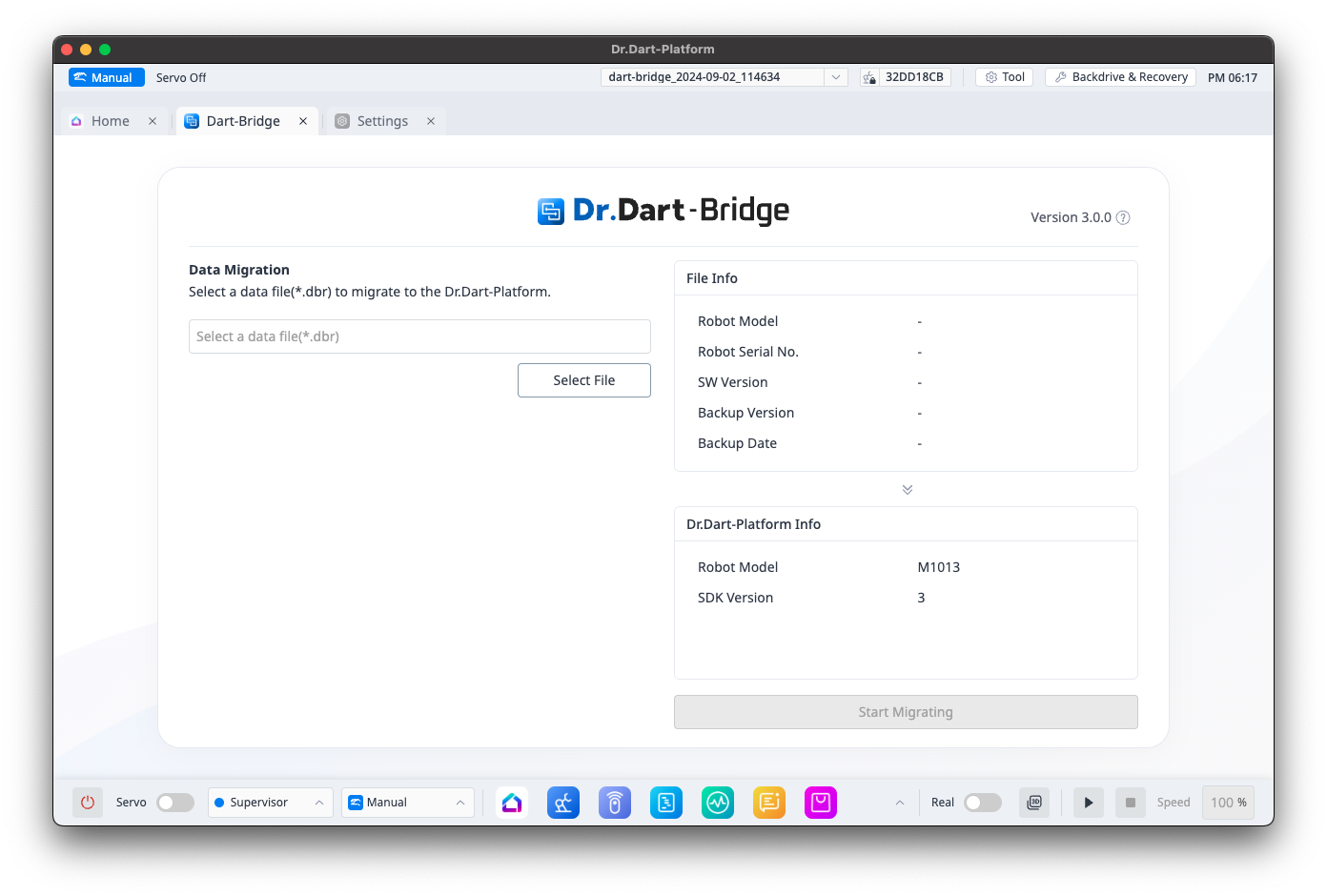

  1. Click the "Select File" button to choose the .dbr file for restoration.

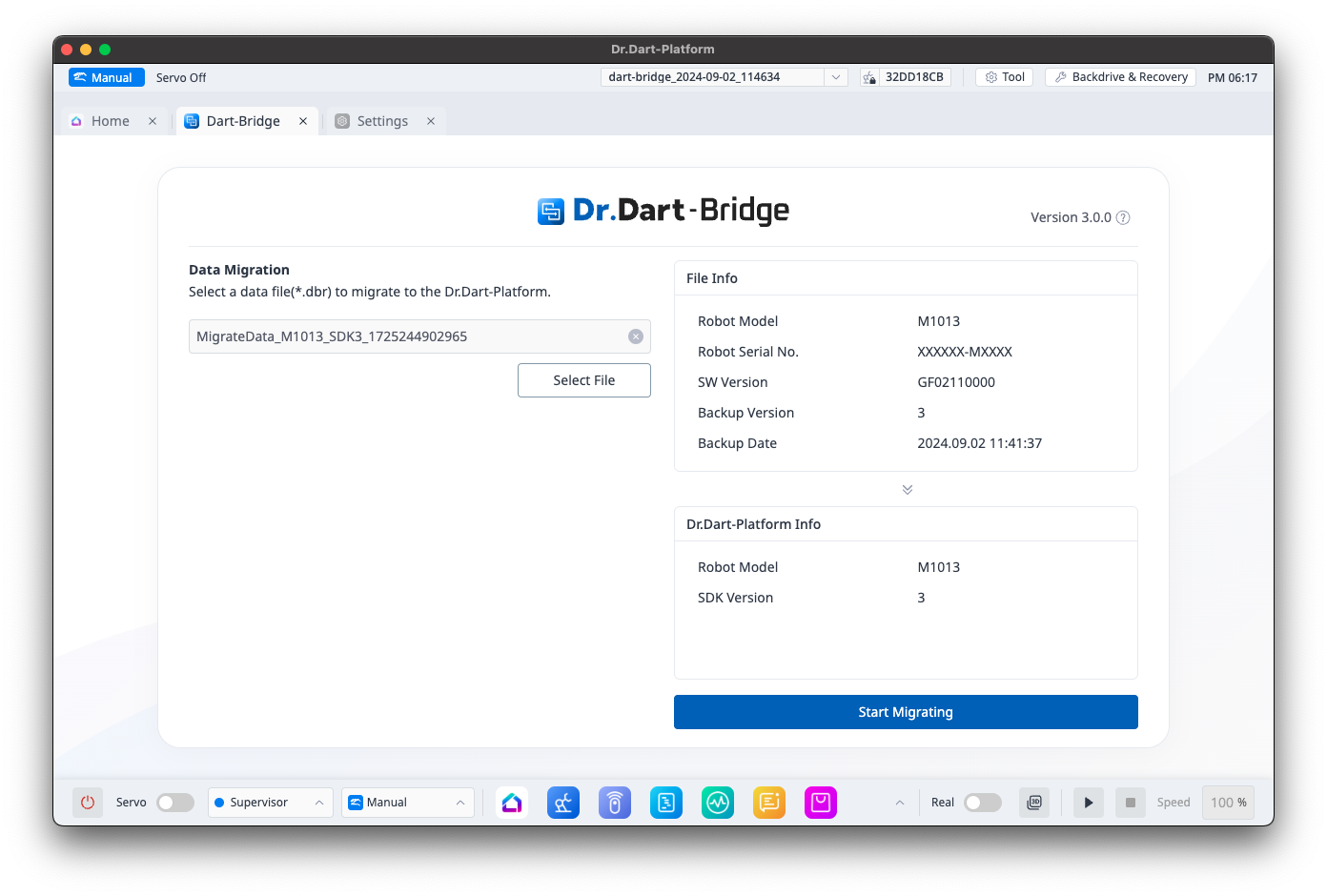

  1. Review the imported data information, then click the "Start Restoration" button to begin the data restoration process.

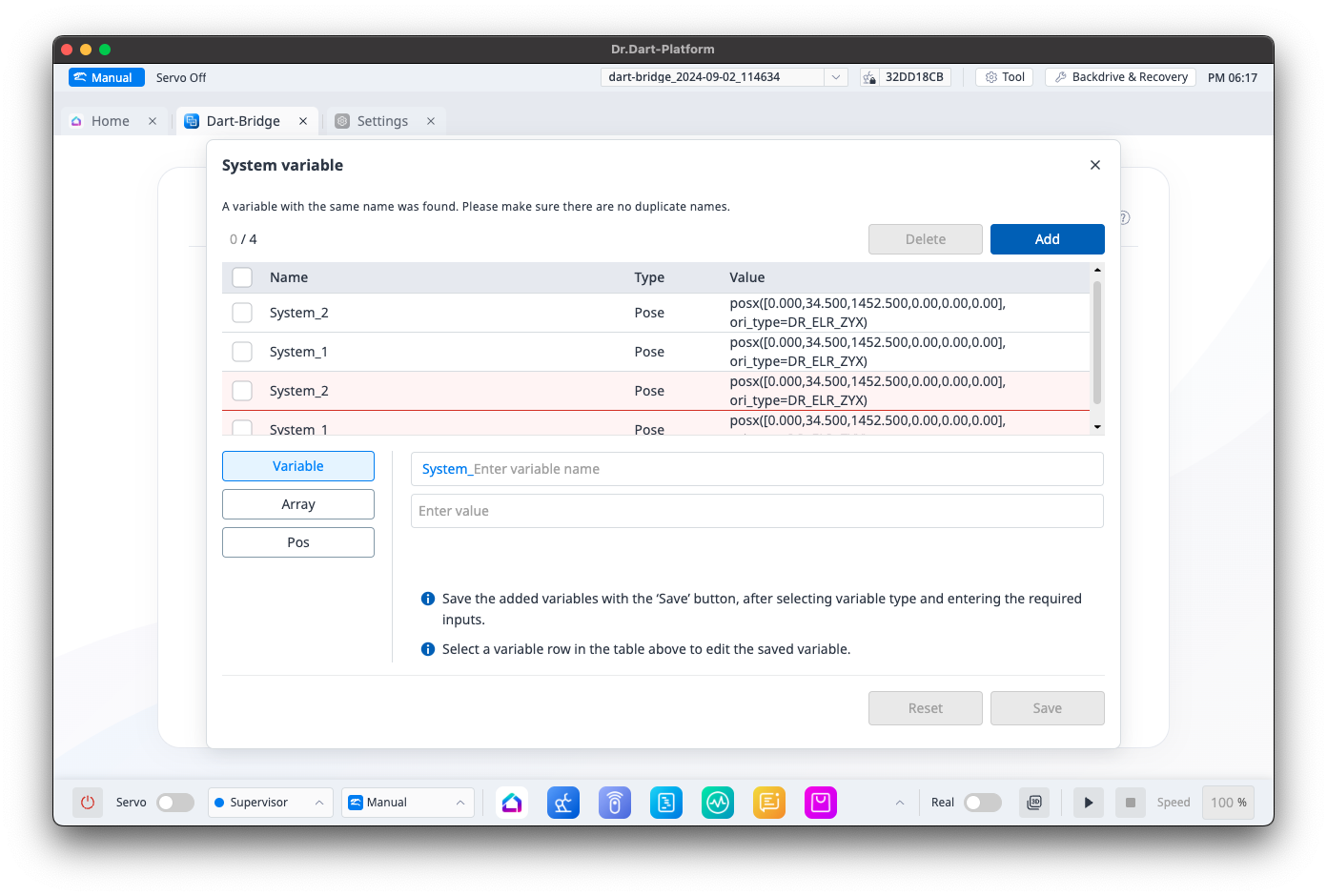

If there are any system variables with duplicate names, a system variable merge popup will appear in the Task Editor.

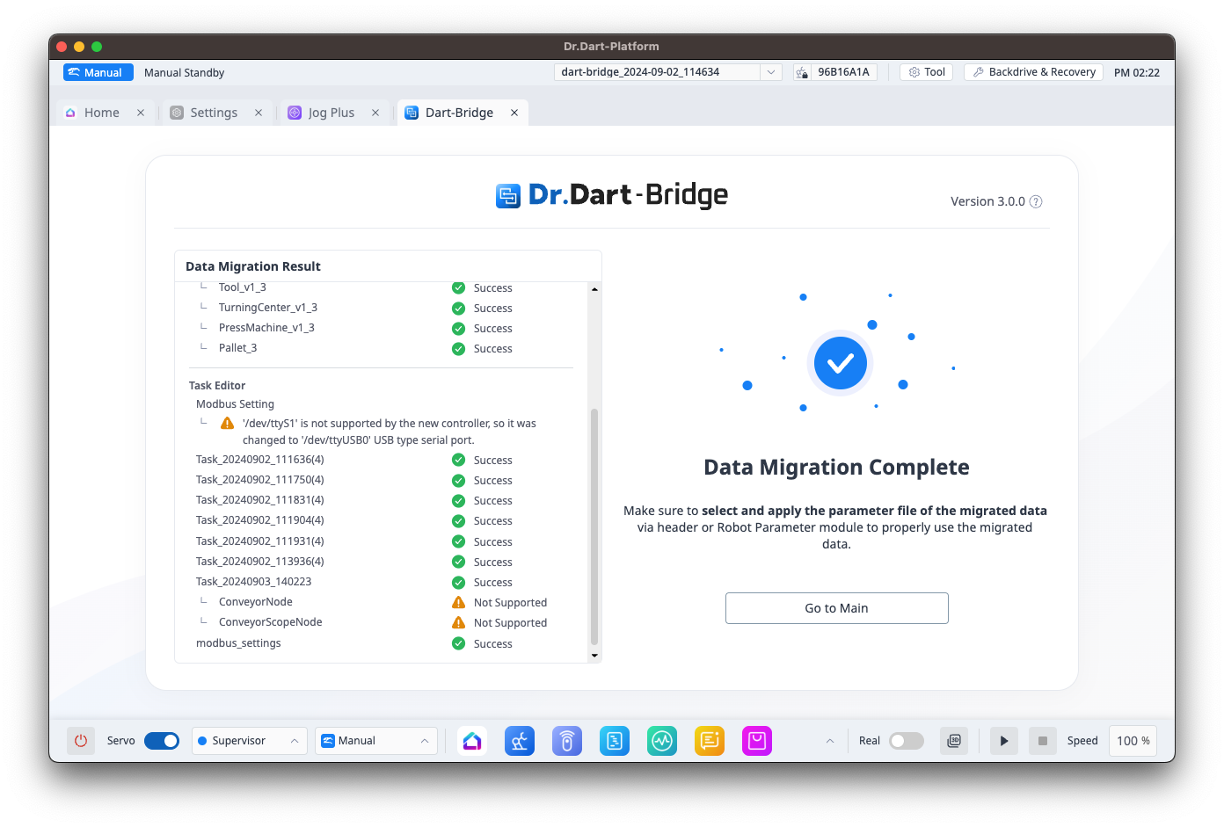

  1. Check Conversion Results.


  • If there are blocks within task files that cannot be converted, they will be marked as unsupported items.

  • For details on the target data for conversion, refer System Requirements and Restrictions.

  • If there is Modbus RTU 'dev/ttyS1' port configuration information, it will be arbitrarily changed to 'dev/ttyUSB0'.
