Logs module | V3-manual

With this module, logs can be managed by any criteria and dates.

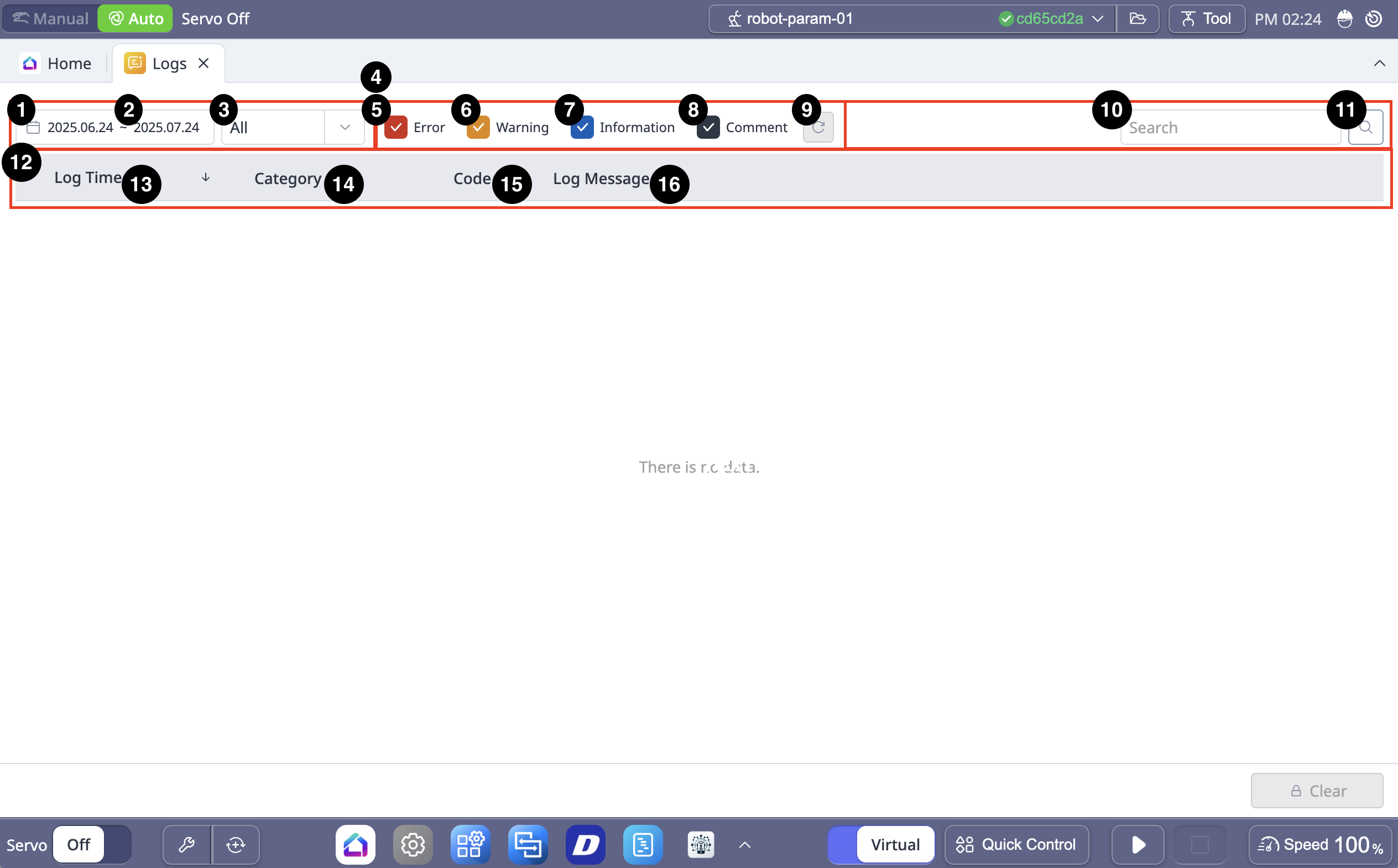

Menu

	Items	Description
1	Section for Search	Allows you to search by any criteria.
2	Date Filter	Allows you to view logs for a period of up to a month.
3	Category	Allows you to view logs by selecting a category. The categories are: All Control System Control Algorithm Inverter Safety Controller Modbus Communication System Message
4	Level	This is where you can select the type of log.
5	Error	If checked, error logs are seen.
6	Warning	If checked, warning logs are seen.
7	Information	If checked, information logs are seen.
8	Comment	If checked, comment logs are seen.
9	Filter Reset	This button allows you to initialize the selected log type.
10	Code or Keyword	This field is where you search for the desired code or keyword.
11	Search	This button allows you to search for what you need.
12	Log Table header	Header of the log table.
13	Log time	The time of each log is seen.
14	Category	The category of each log is seen.
15	Code	The code of each log is seen.
16	Log Message	Log messages are seen.
17	Clear	This button allows you to delete the log.
