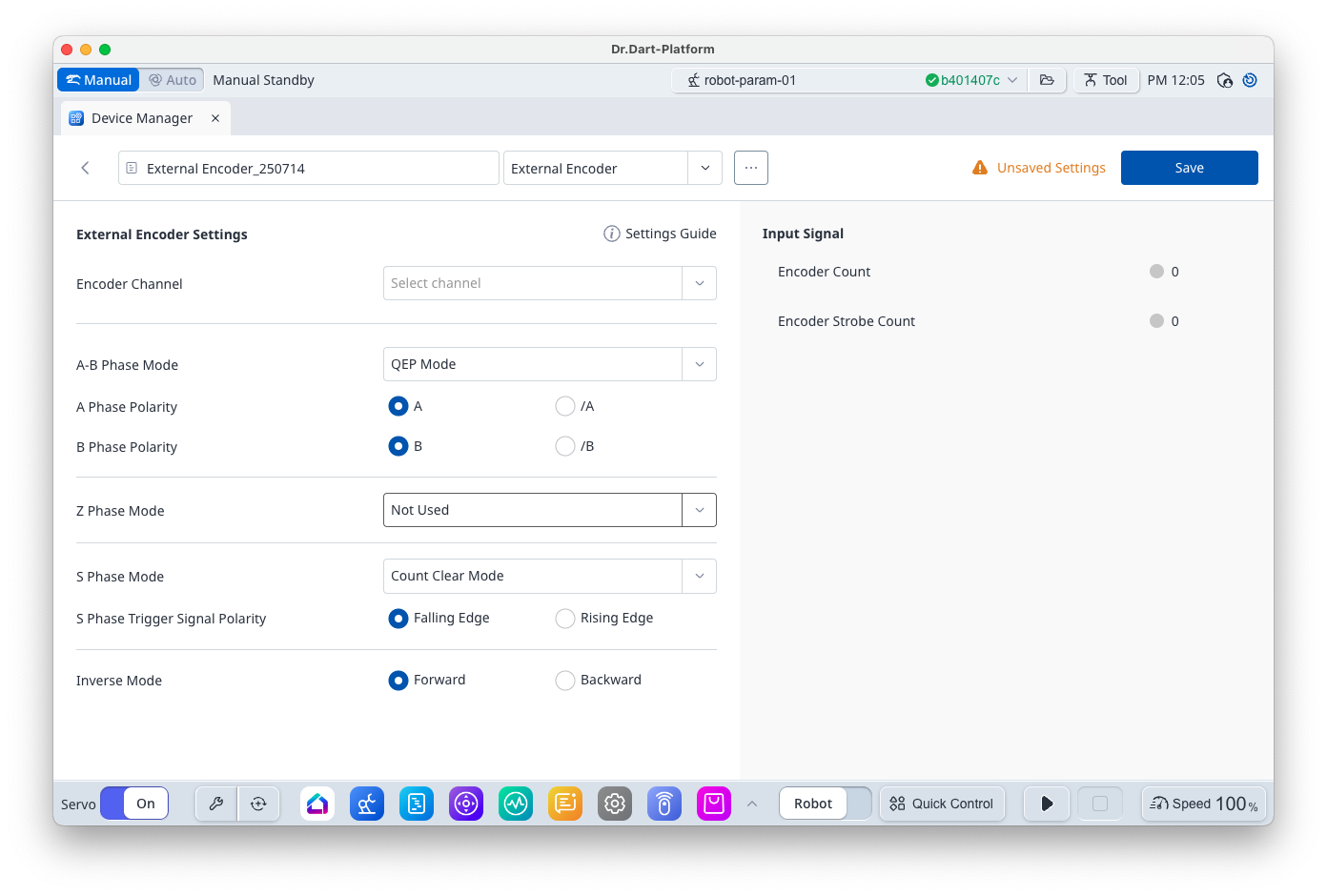

[External Encoder] device,
-
sets the [Encoder Channel] according to the encoder connection
-
sets the [A-B Phase Mode] according to the encoder specification
-
sets the [S Phase Mode] according to the triggering switch sensor specifications and configurations.
