M1509 Stop Categorie 0
Verbinding 1
Toestel=100%, snelheid=100%, lading=100%
|
|
Remafstand (rad) |
Stoptijd (ms) |
|---|---|---|
|
Verbinding 1 |
0,138 |
109 |
Verbinding 2
Toestel=100%, snelheid=100%, lading=100%
|
|
Remafstand (rad) |
Stoptijd (ms) |
|---|---|---|
|
Gewricht 2 (θj2) |
0,105 |
327 |
|
Gewricht 3 (θj3) |
0,492 |
|
|
Afstand (θd) |
0,338 |
Verbinding 3
Toestel=100%, snelheid=100%, lading=100%
|
|
Remafstand (rad) |
Stoptijd (ms) |
|---|---|---|
|
Gewricht 2 (θj2) |
0,155 |
197 |
|
Gewricht 3 (θj3) |
0,134 |
|
|
Afstand (θd) |
0,258 |
-
De verbindingshoeken 2 en 3 worden aangeduid met θj2, θj3, θd in Meetposities en Voorwaarden.
M1509 Stop Categorie 1
Stopafstand en stoptijd van gewricht 1 (basis)
|

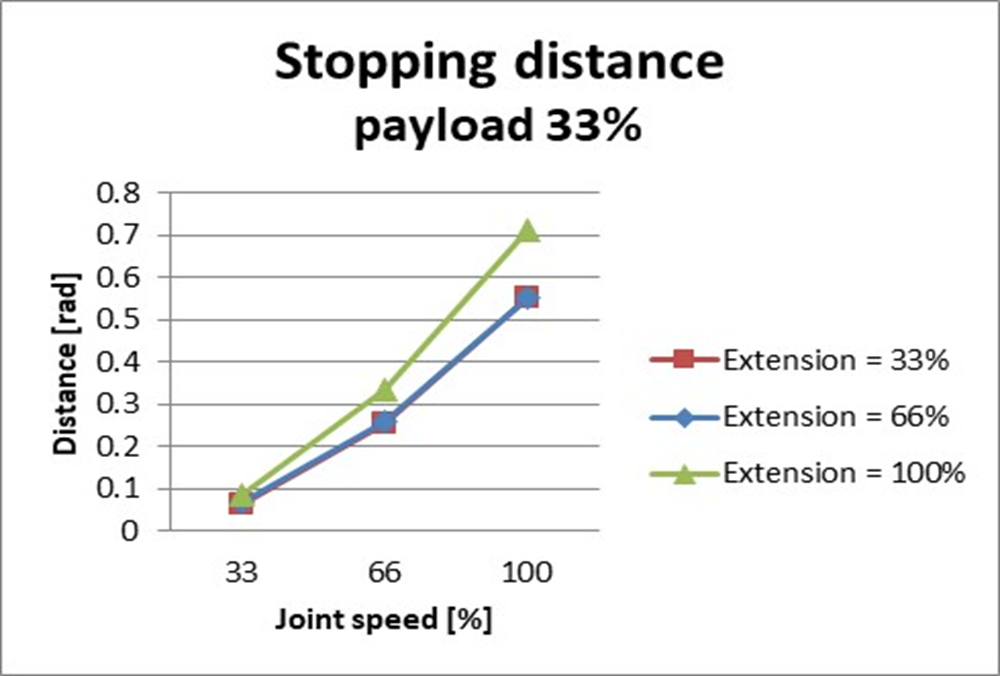

Stopafstand bij 33% van max. Belasting (rad) |

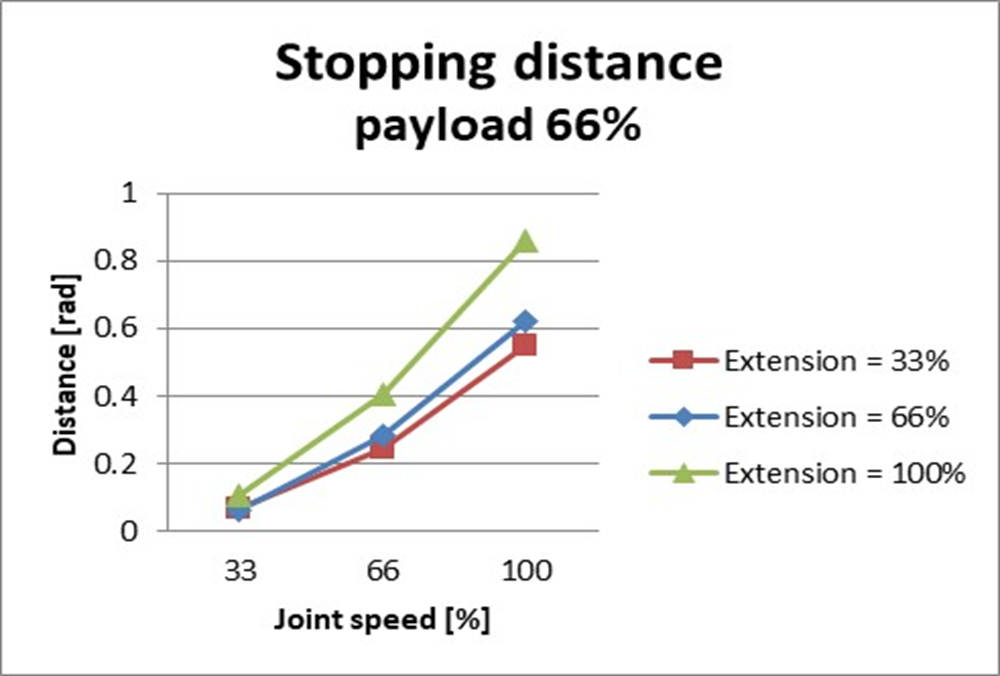

Stopafstand bij 66% van max. Belasting (rad) |
|
|
|
Stopafstand bij max. Belasting (rad) |

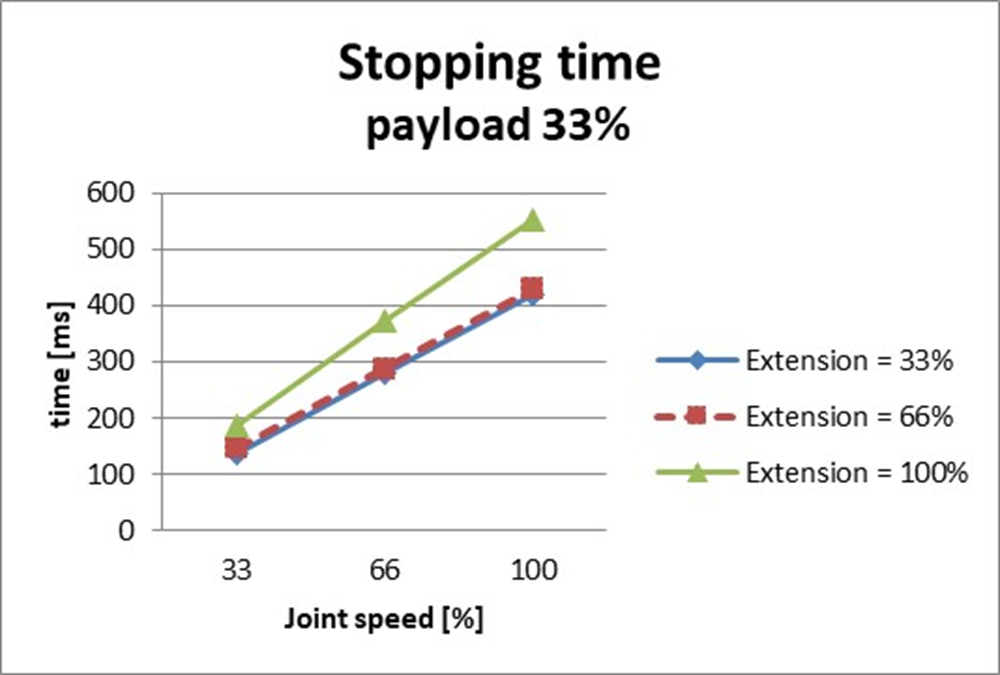

Stoptijd bij 33% van max. Belasting (ms) |
|
|
|
Stoptijd bij 66% van max. Belasting (ms) |

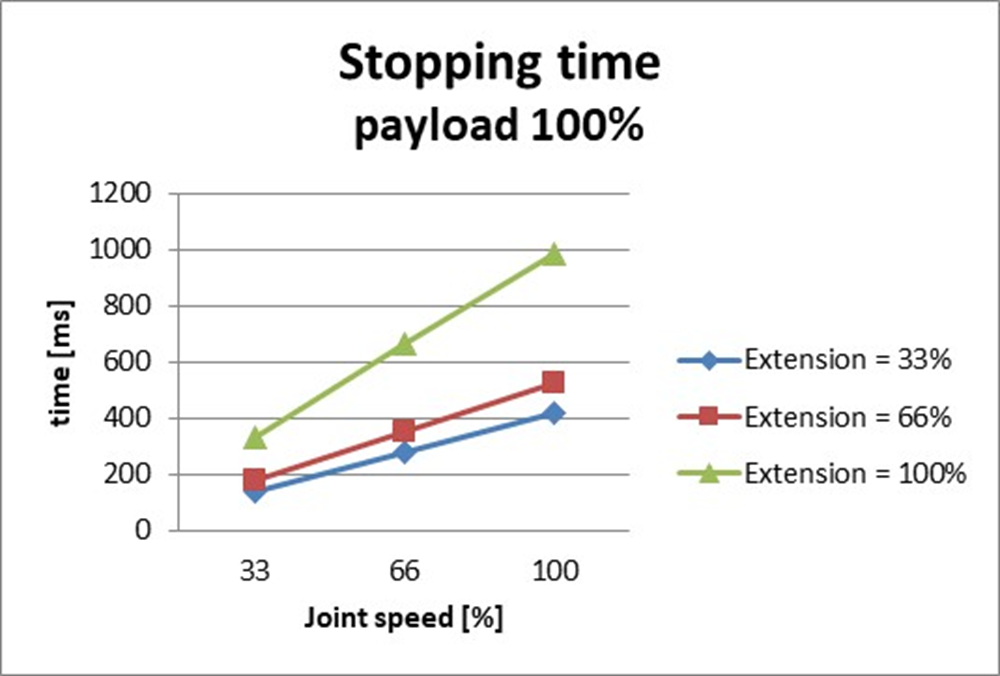

Stoptijd bij max. Belasting (ms) |
|
|
Stopafstand en stoptijd van verbinding 2 (schouder)
|

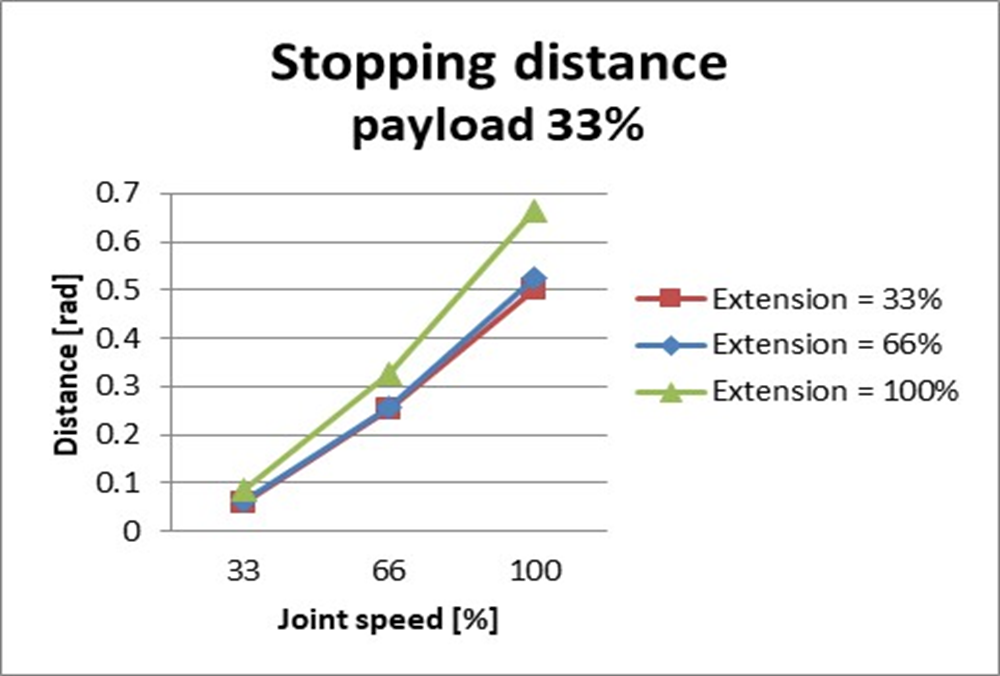

Stopafstand bij 33% van max. Belasting (rad) |
Stopafstand bij 66% van max. Belasting (rad) |
|
|
|
Stopafstand bij max. Belasting (rad) |
Stoptijd bij 33% van max. Belasting (ms) |
|
|
|

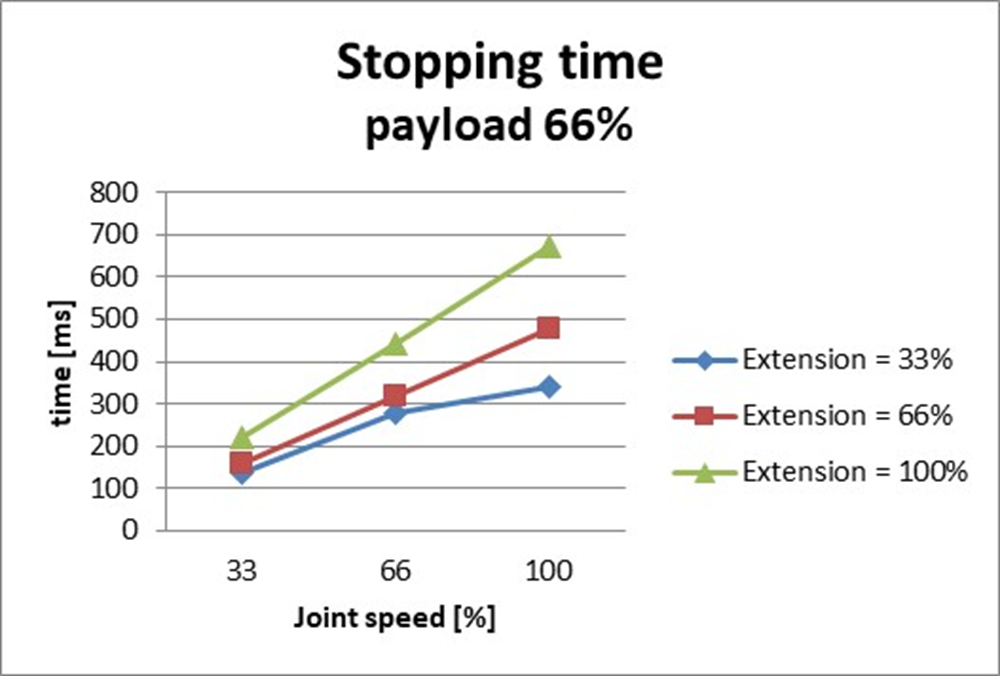

Stoptijd bij 66% van max. Belasting (ms) |
Stoptijd bij max. Belasting (ms) |
|
|
Stopafstand en stoptijd van gewricht 3 (bochtstuk)
|
Stopafstand bij max. Uitrekken niveau (rad) |

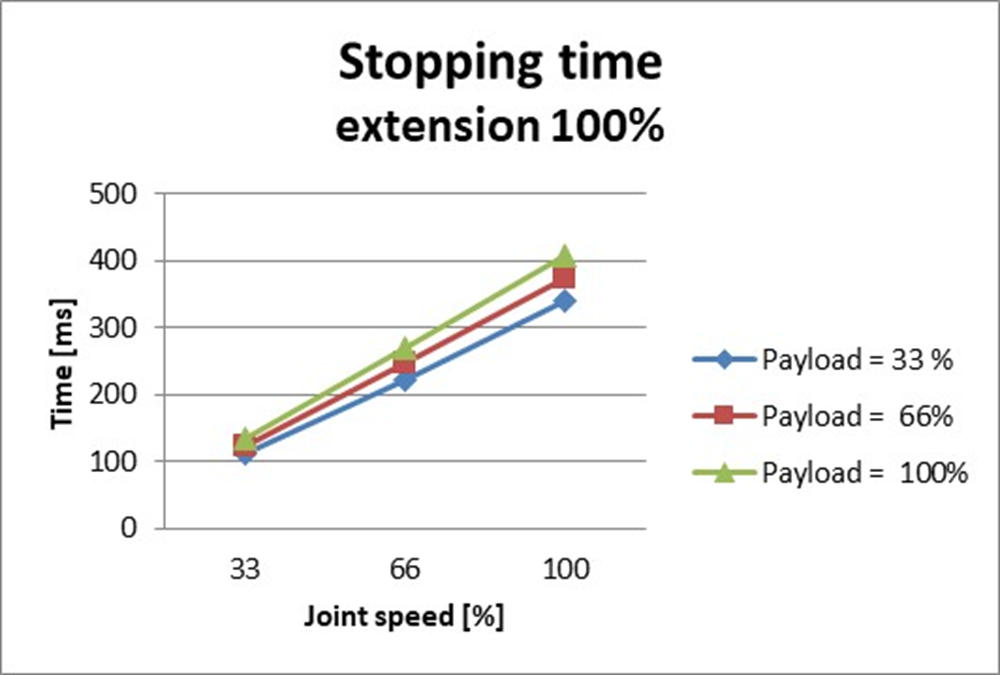

Stoptijd bij max. Uitrekken niveau (ms) |
|---|---|
|
|
