H2017 Stop categorie 0
Verbinding 1
Toestel=100%, snelheid=100%, lading=100%
|
|
Remafstand (rad) |
Stoptijd (ms) |
|---|---|---|
|
As 1 |
0,12483 |
98,867 |
Verbinding 2
Toestel=100%, snelheid=100%, lading=100%
|
|
Remafstand (rad) |
Stoptijd (ms) |
|---|---|---|
|
As 2 |
0,09471 |
296,568 |
|
As 3 |
0,44703 |
Verbinding 3
Toestel=100%, snelheid=100%, lading=100%
|
|
Remafstand (rad) |
Stoptijd (ms) |
|---|---|---|
|
As 2 |
0,14045 |
178,785 |
|
As 3 |
0,12168 |
H2017 Stop categorie 1

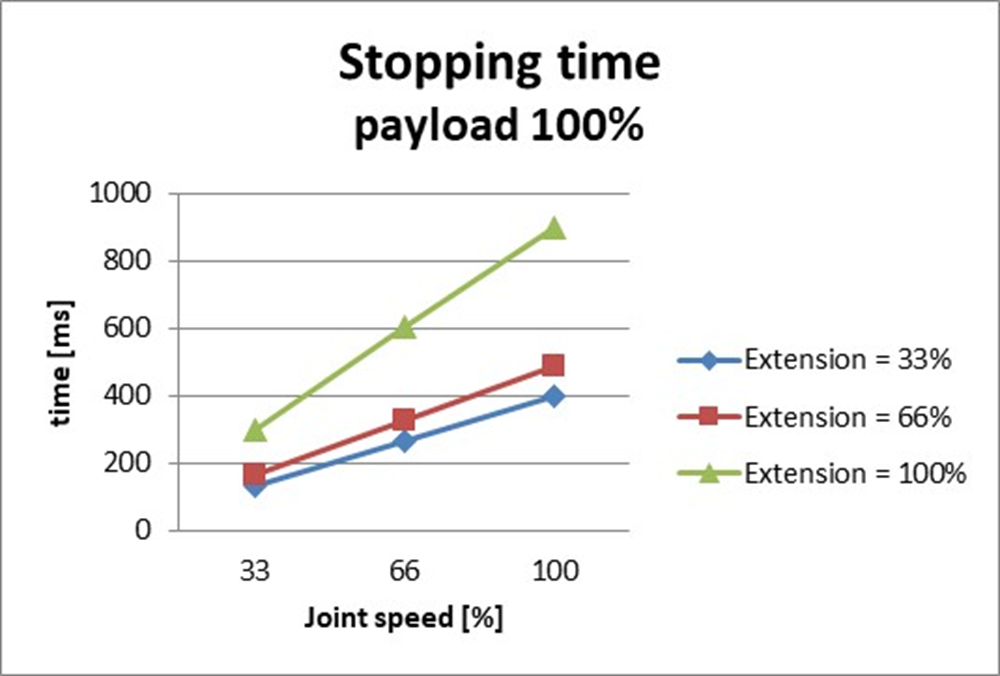

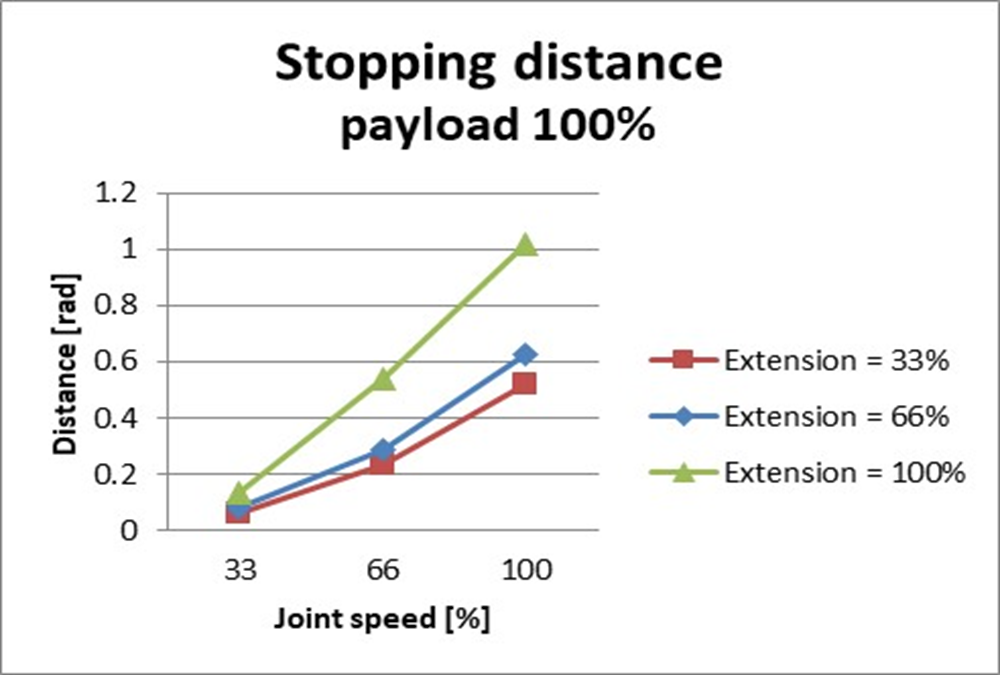

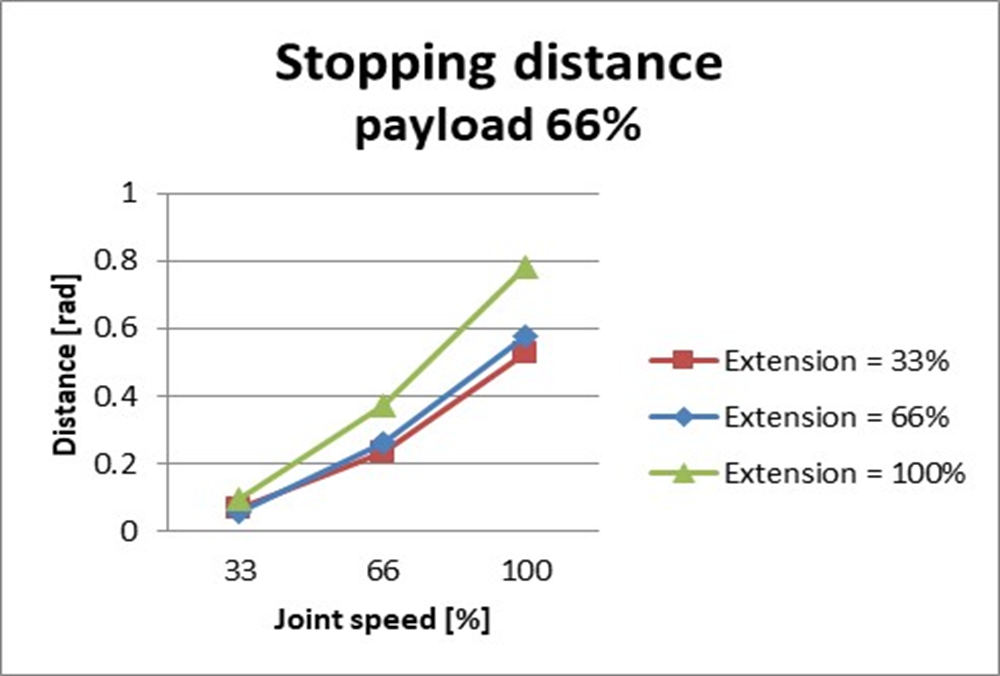

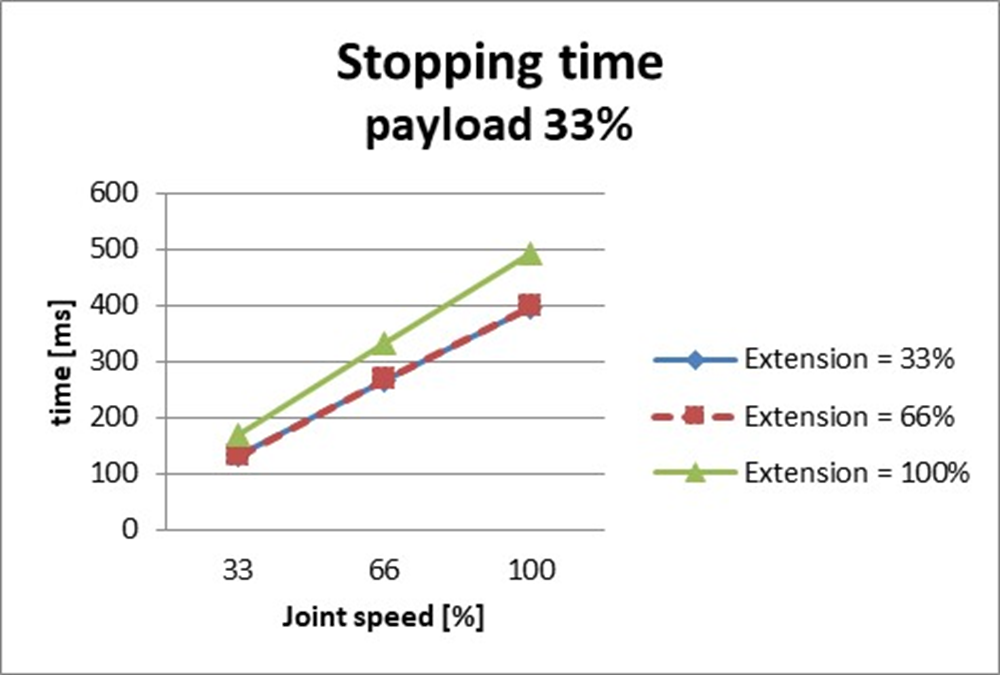

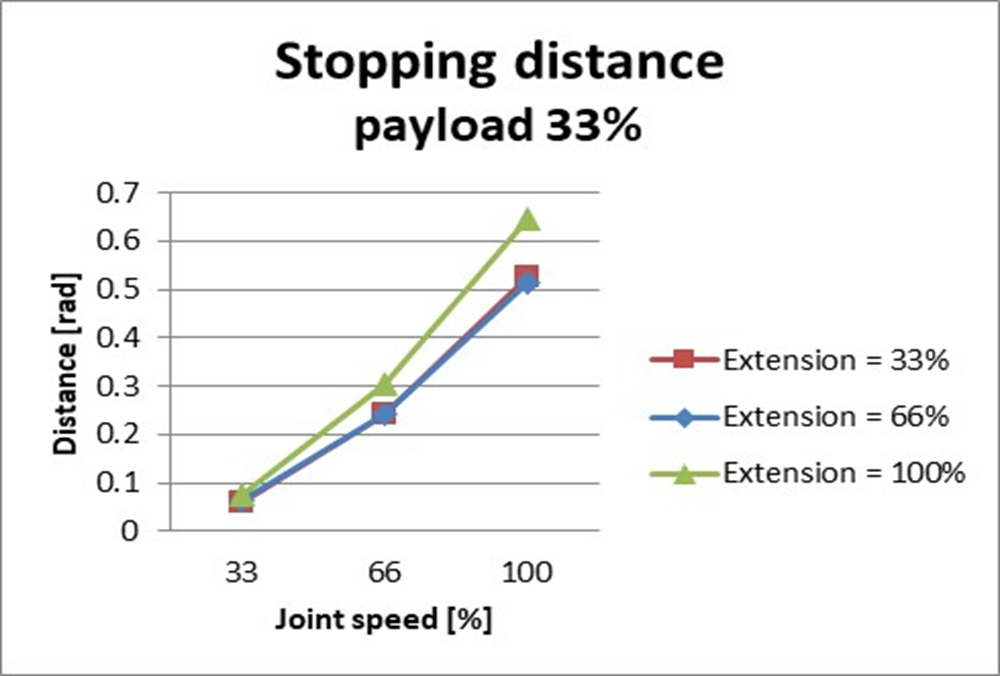

Stopafstand en stoptijd van gewricht 1 (basis)
|
Stopafstand bij 33% van max. Belasting (rad) |
Stopafstand bij 66% van max. Belasting (rad) |
|
|
|
Stopafstand bij max. Belasting (rad) |
Stoptijd bij 33% van max. Belasting (ms) |
|
|
|
Stoptijd bij 66% van max. Belasting (ms) |
Stoptijd bij max. Belasting (ms) |
|
|

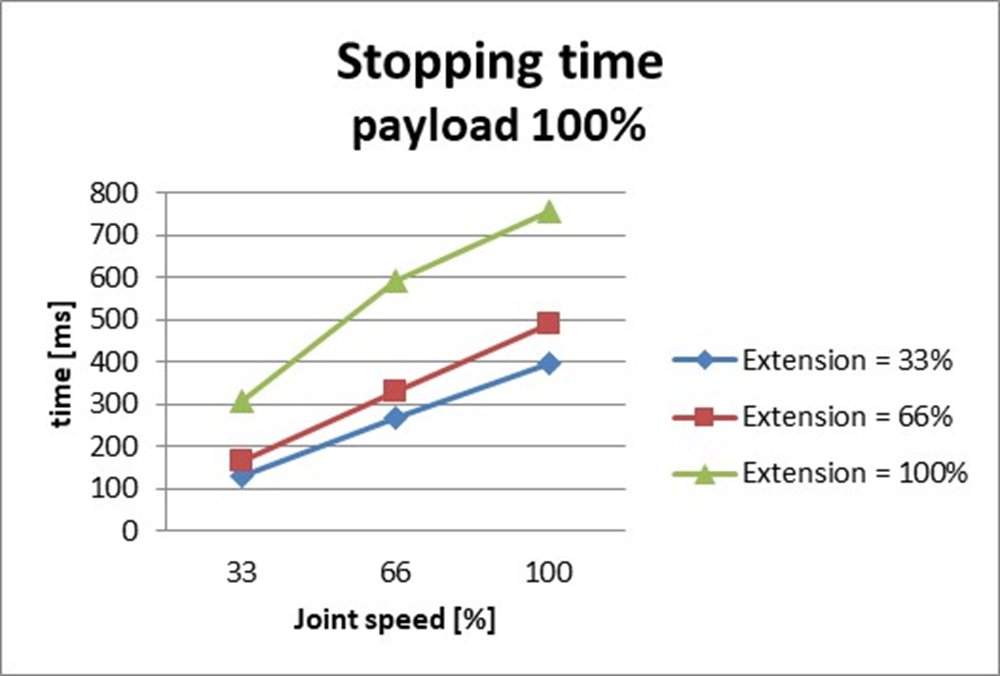

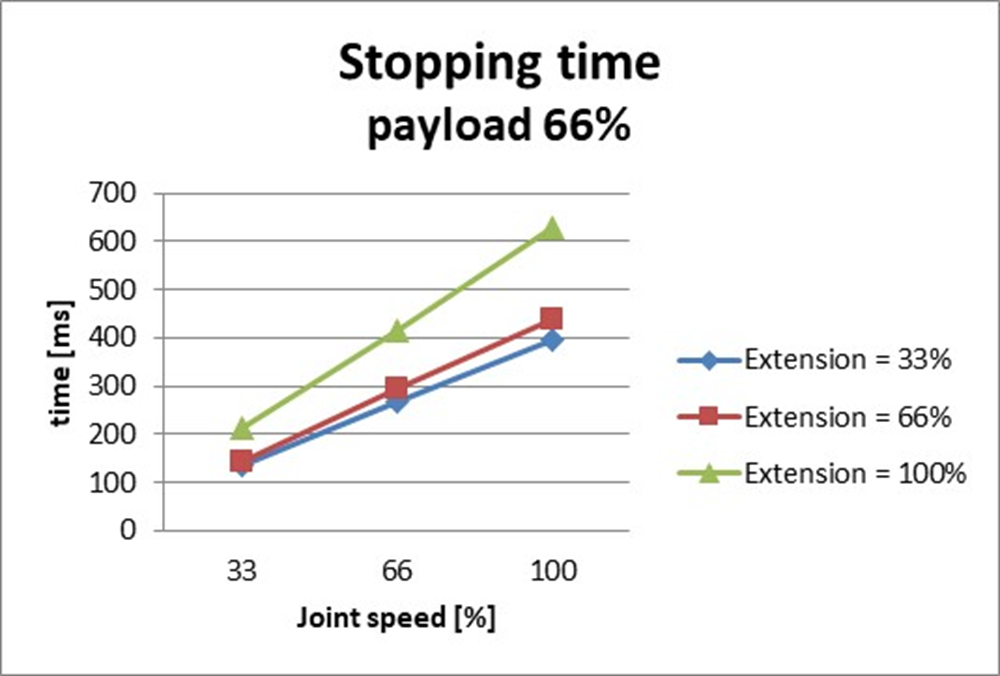

Stopafstand en stoptijd van verbinding 2 (schouder)
|
Stopafstand bij 33% van max. Belasting (rad) |
Stopafstand bij 66% van max. Belasting (rad) |
|
|
|
Stopafstand bij max. Belasting (rad) |
Stoptijd bij 33% van max. Belasting (ms) |
|
|
|
Stoptijd bij 66% van max. Belasting (ms) |
Stoptijd bij max. Belasting (ms) |
|
|

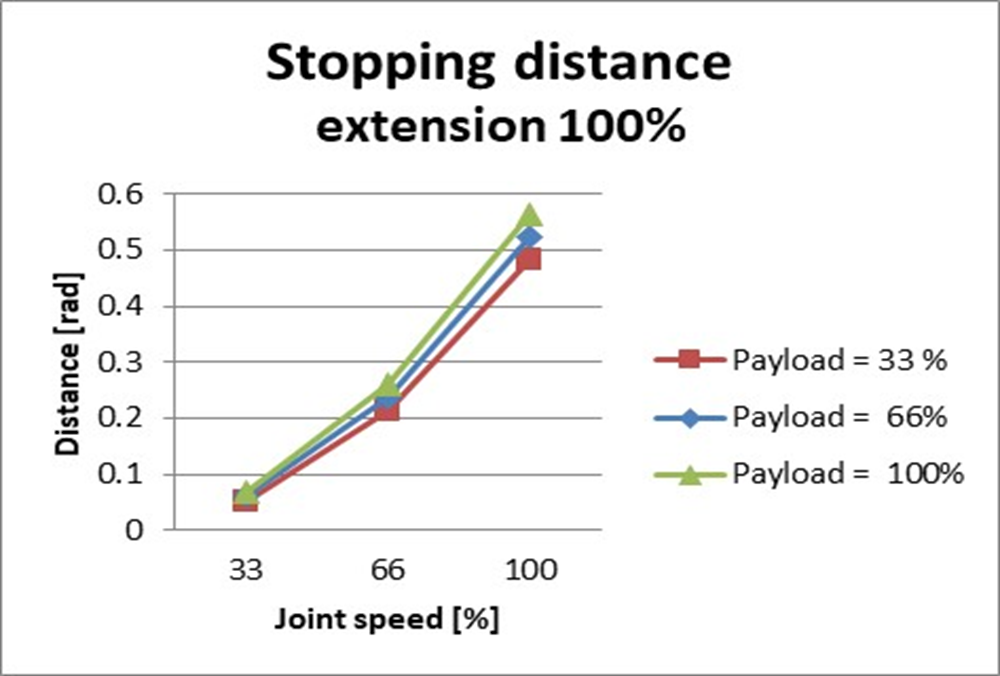

Stopafstand en stoptijd van gewricht 3 (bochtstuk)
|
Stopafstand bij max. Uitrekken niveau (rad) |
Stoptijd bij max. Uitrekken niveau (ms) |
|---|---|
|
|
