Scroll conditional content
1m/hseries
Scroll conditional content
2aseries
Scroll conditional content
3eseries
|

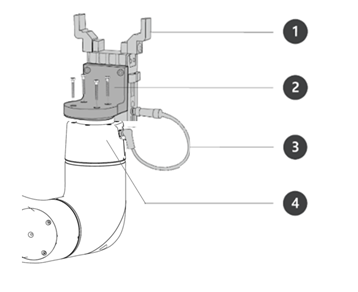

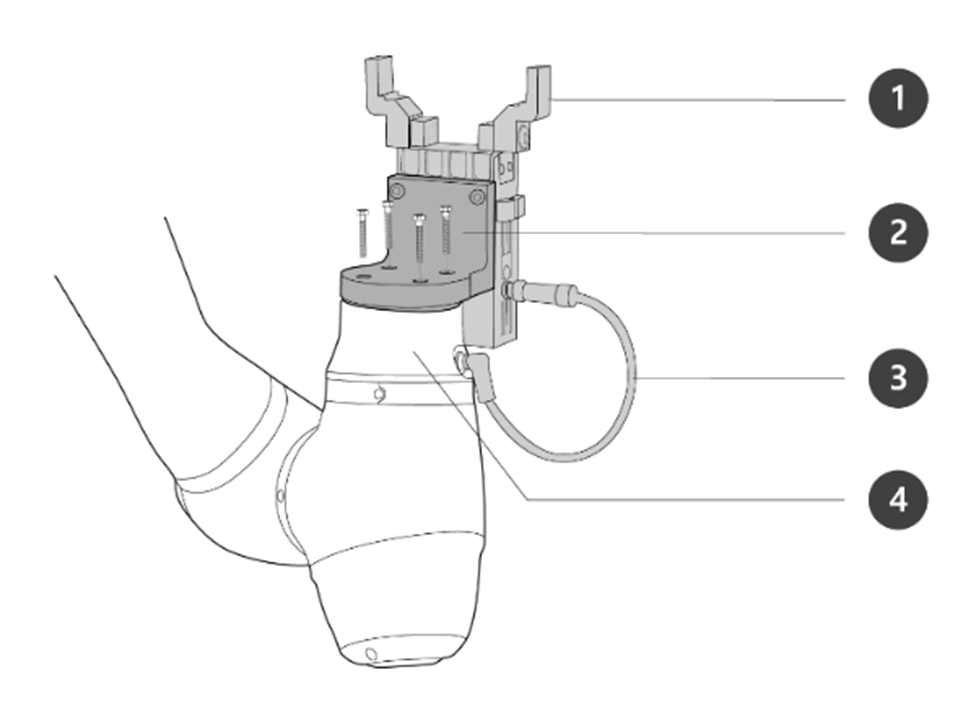

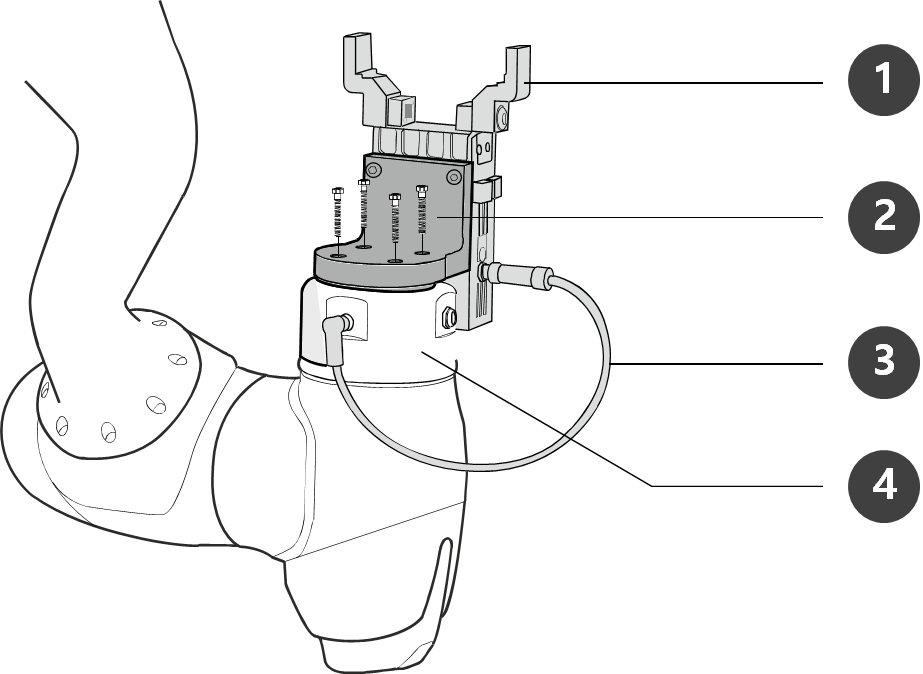

No. |
Item |
|---|---|
|
1 |
Tool |
|
2 |
Bracket |
|
3 |
Cable |
|
4 |
Tool flange |
-
Use four M6 bolts to secure the tool on the tool flange.
-
It is recommended to use tightening torque of 9 Nm to tighten the bolts.
-
Use a Φ6 place marker pin to accurately install the robot in a fixed location.
-
Connect the necessary cables to the flange I/O connectors after the tool is secured.
Methods of securing the tool may vary according to the tool. For more information about tool installation, refer to the manual provided by the tool manufacturer.
Scroll conditional content
1m/hseries
Scroll conditional content
2aseries
Scroll conditional content
3eseries

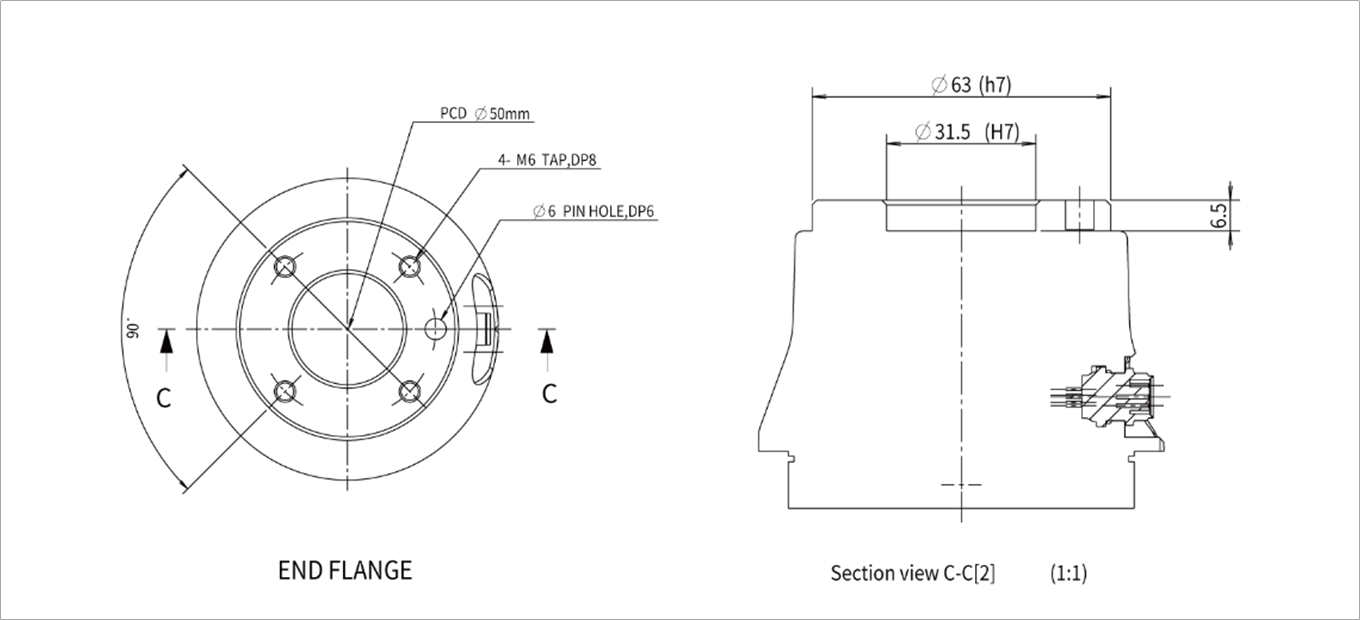

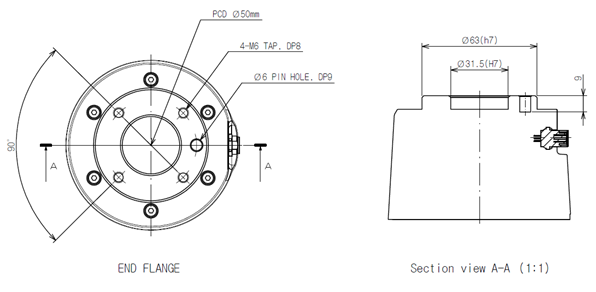

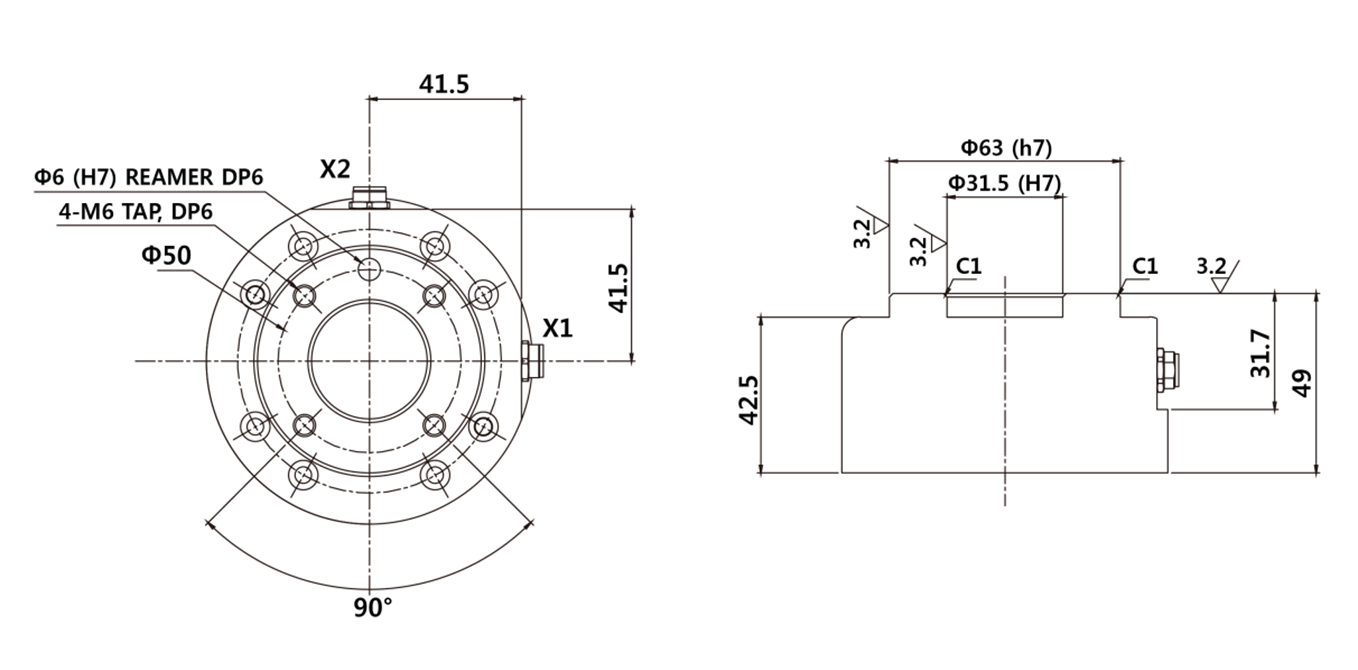

Tool output flange, ISO 9409-1-50-4-M6
