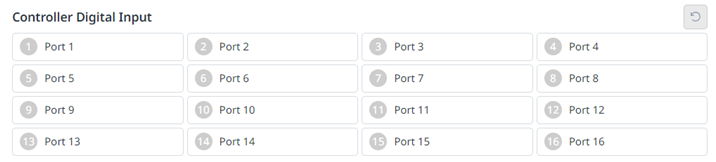

Controller Digital Input


  1. Check the port number of the device connected to the controller.

  2. The following is displayed depending on the digital input status of the corresponding number.If the digital signal is a high signal, the icon is displayed in light green.If the digital signal is a low signal, the icon is displayed in gray.



  • The same is true when the digital input is set as a safety input, the icon is displayed in blue when the digital signal is high, and gray when it is low.
