This is a device that supplies bolts.
-
It supports pick-up and shooting types. In the case of a shooting bolt feeder, the bolt shooting signal can be configured.
-
If the bolt feeder is equipped with a sensor that checks input signals, input signal check is available.
-
If the machine is equipped with a sensor that checks input signals, input signal check is available.
-
It can only be operated with the Controller Digital Output signals.

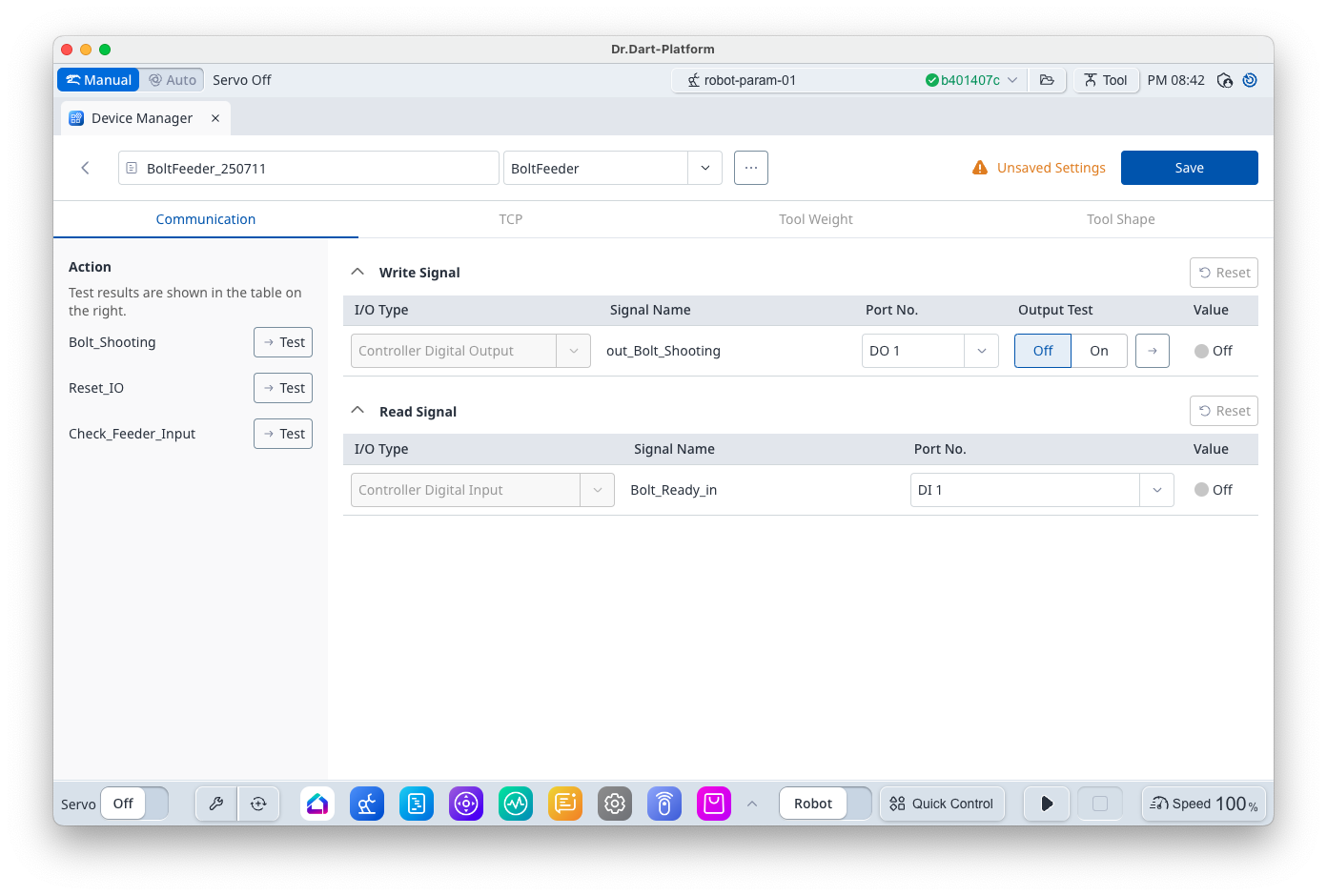

Signal Setting
|
Item |
Description |
|---|---|
|
out_Bolt_Shooting |
This configures the bolt shooting signal. |
|
Bolt_Ready_in |
This selects the input signal for checking whether a bolt is prepared in the bolt feeder. |
Support Action (DRL)
|
Item |
Description |
|---|---|
|
Bolt_Shooting |
It performs a bolt shooting motion with the out_Bolt_Shooting signal on. |
|
Reset_IO |
It is a function that turns off an output signal that is turned on. |
|
Check_Feeder_Input |
It waits for the bolt ready input signal. (Timeout = 10 seconds) |
