1. Dart-Platform v2 Data Backup and Conversion
-
Install Dart-Bridge SW through the installation file.
-

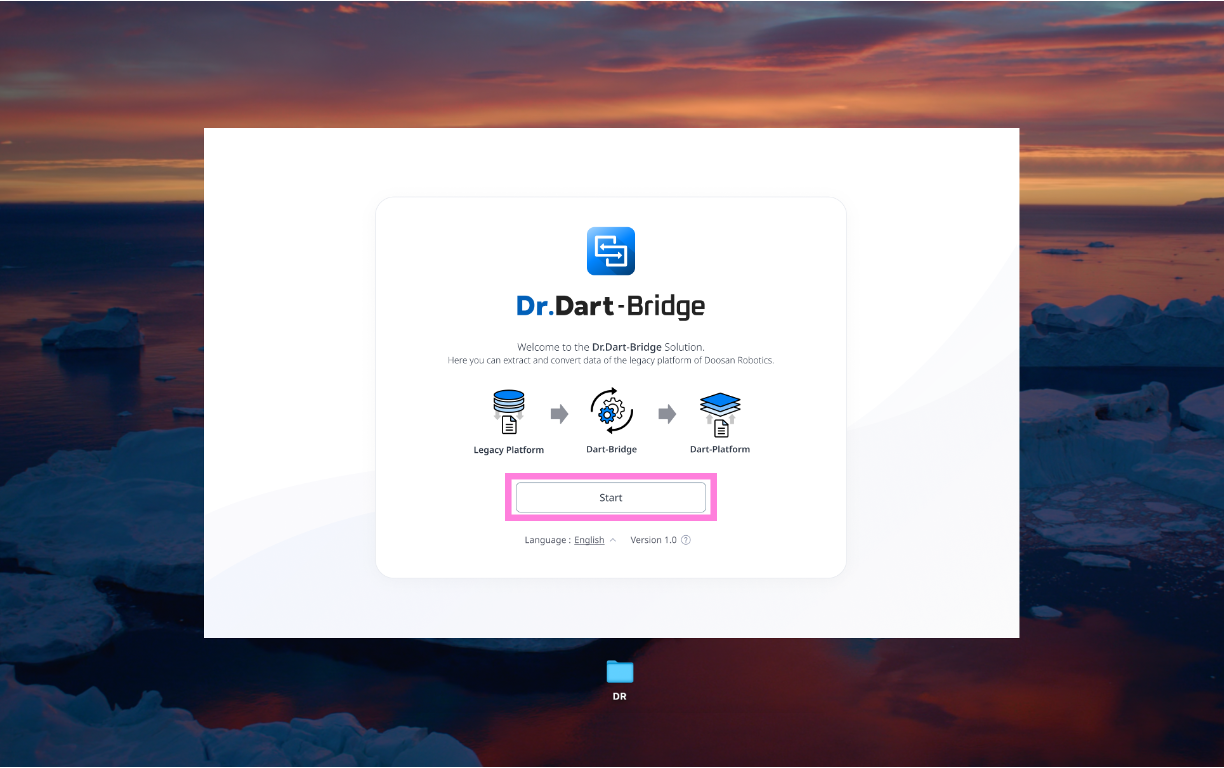

On the landing page, click the [Start] button.
-
Click the [Import Data] button on the main screen.
-

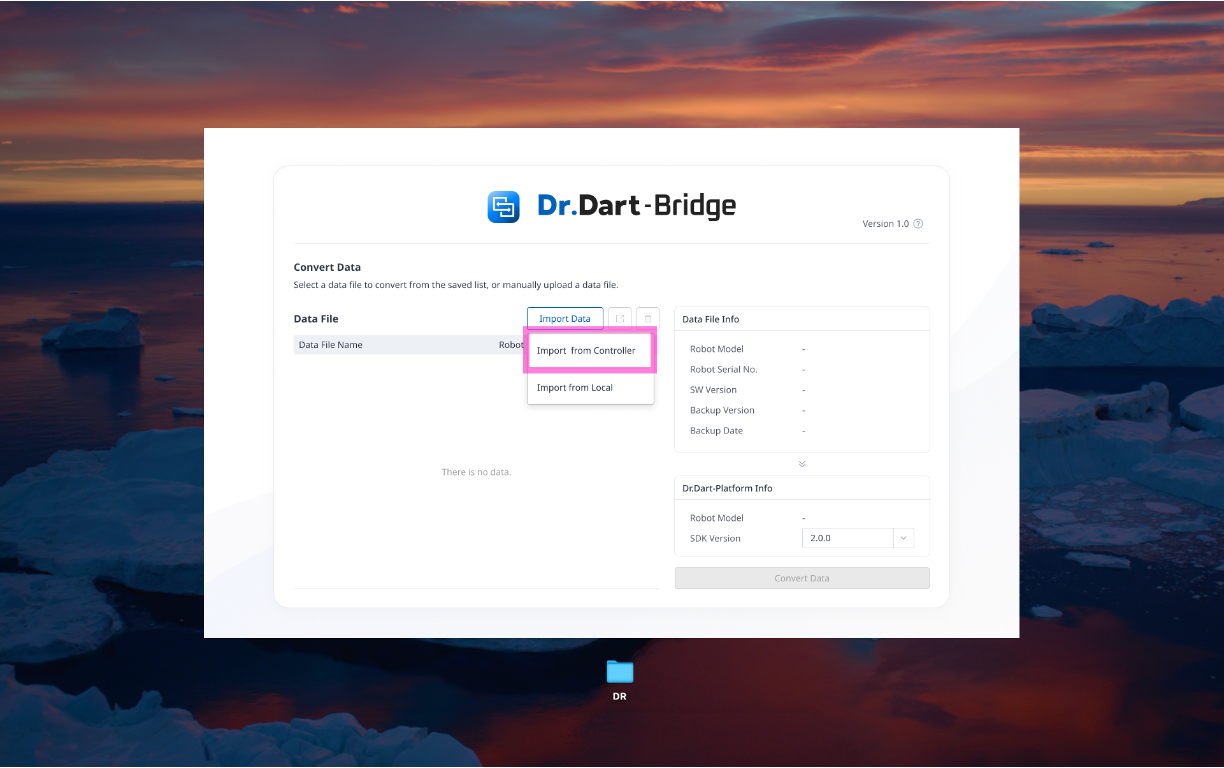

Select the method of importing data (import directly from the controller or import already extracted data files)
-

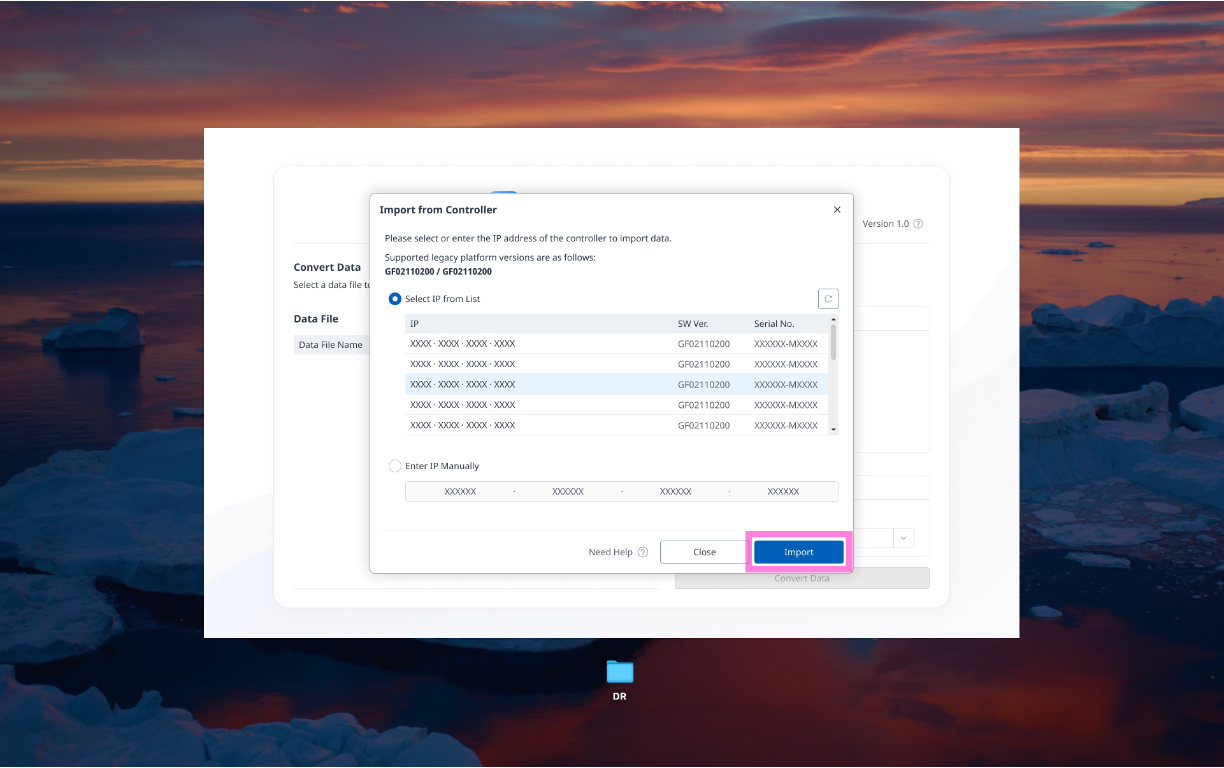

Select or enter an IP on an import pop-up call from the controller, then click the [Import] button.
-

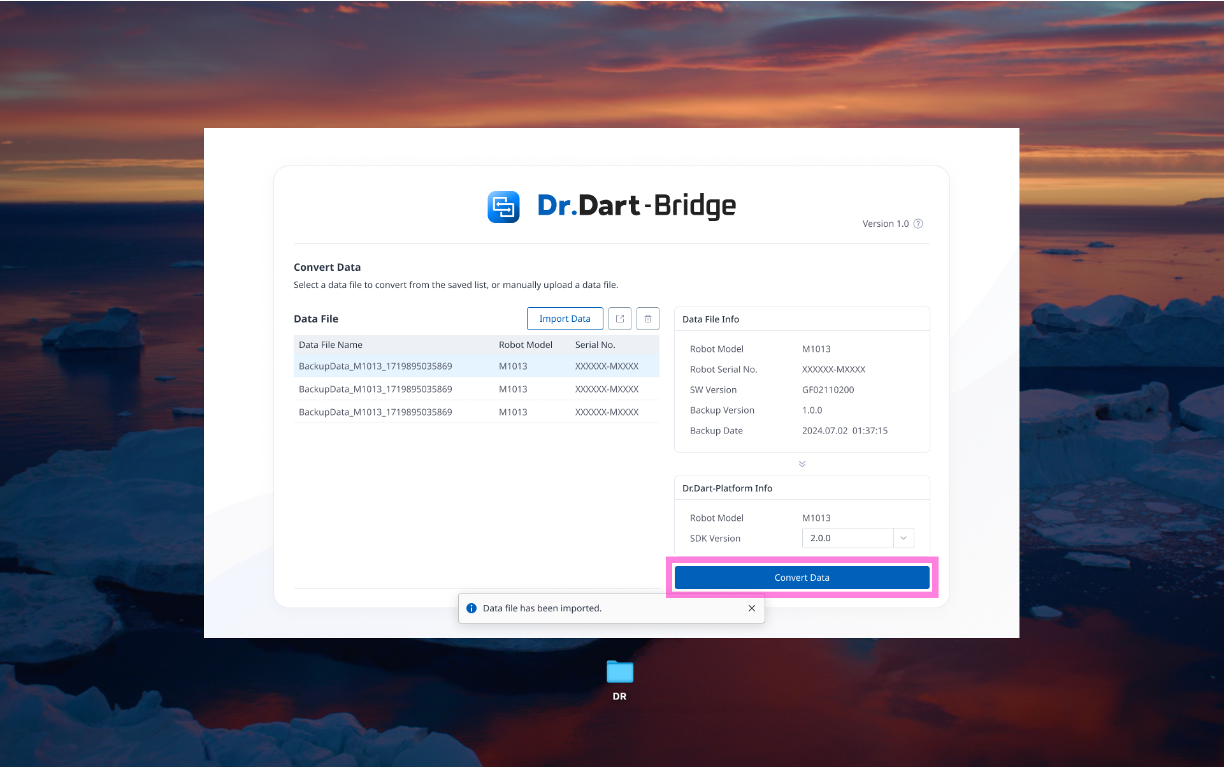

Imported data is listed in the data file list. Select the data file in the list and click the [Convert Data] button.
-

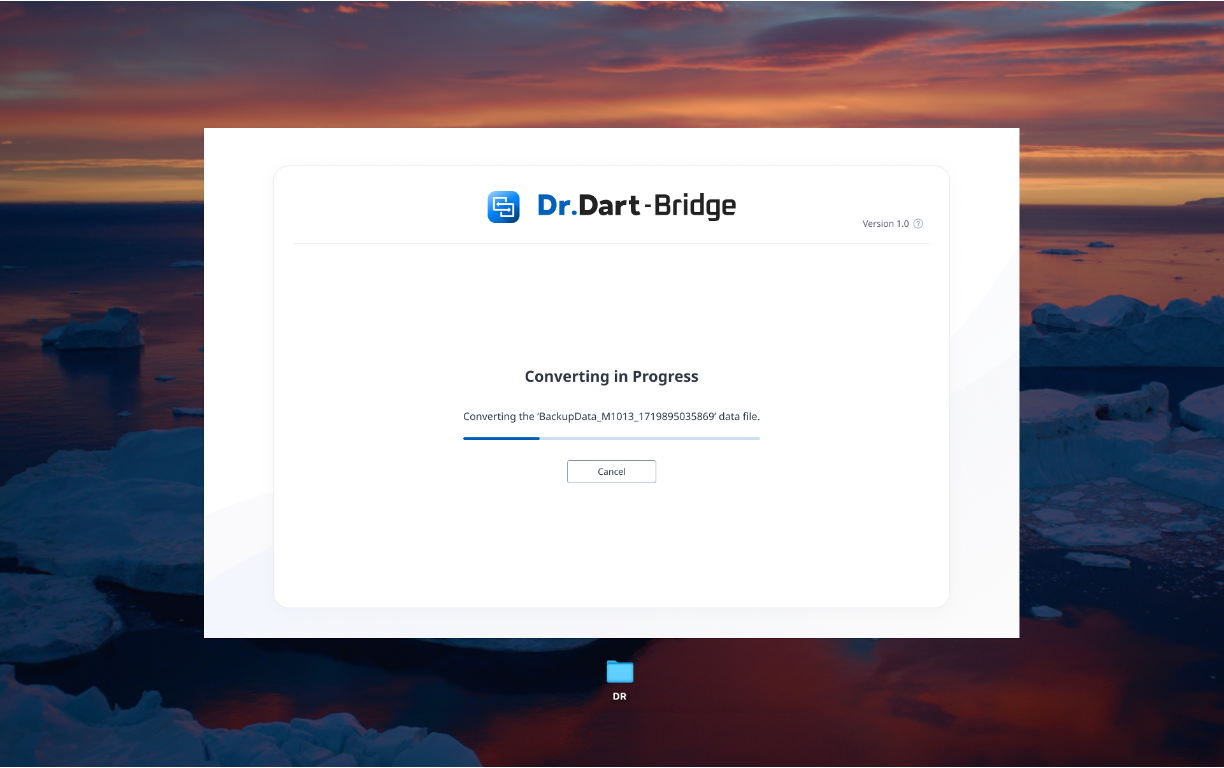

Starts the data conversion.
-

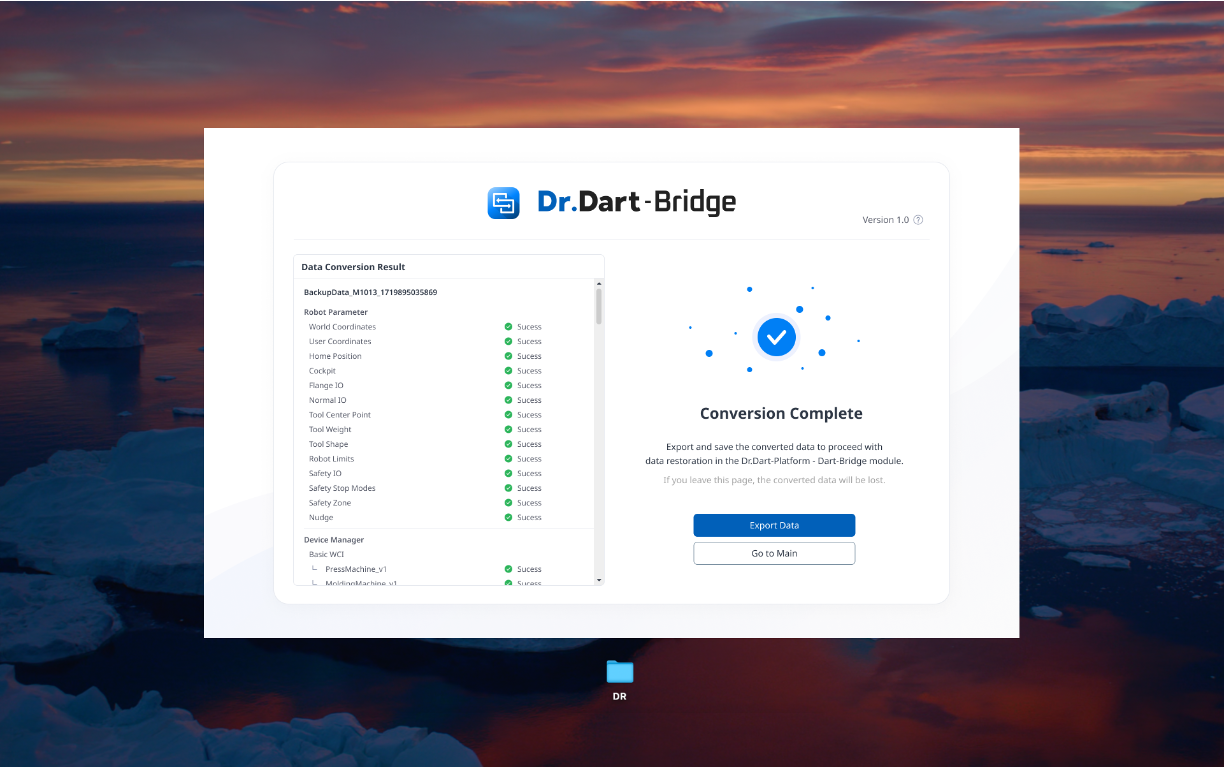

The completion screen will be called upon completion of the data conversion. Click the [Export Data] button.
-

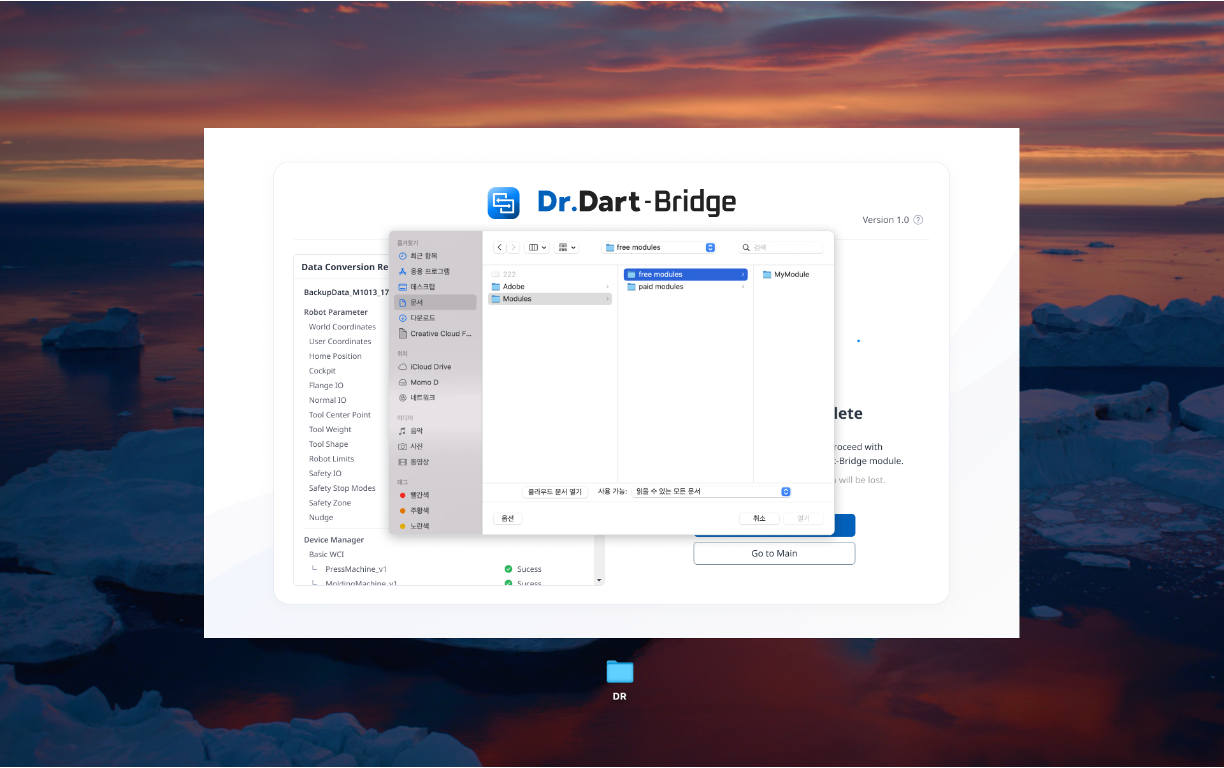

Call the local file explorer pop-up to specify where the data is to be exported.
-
The converted file is stored in the selected location.
2. Data Migration to Dart-Platform v3
-

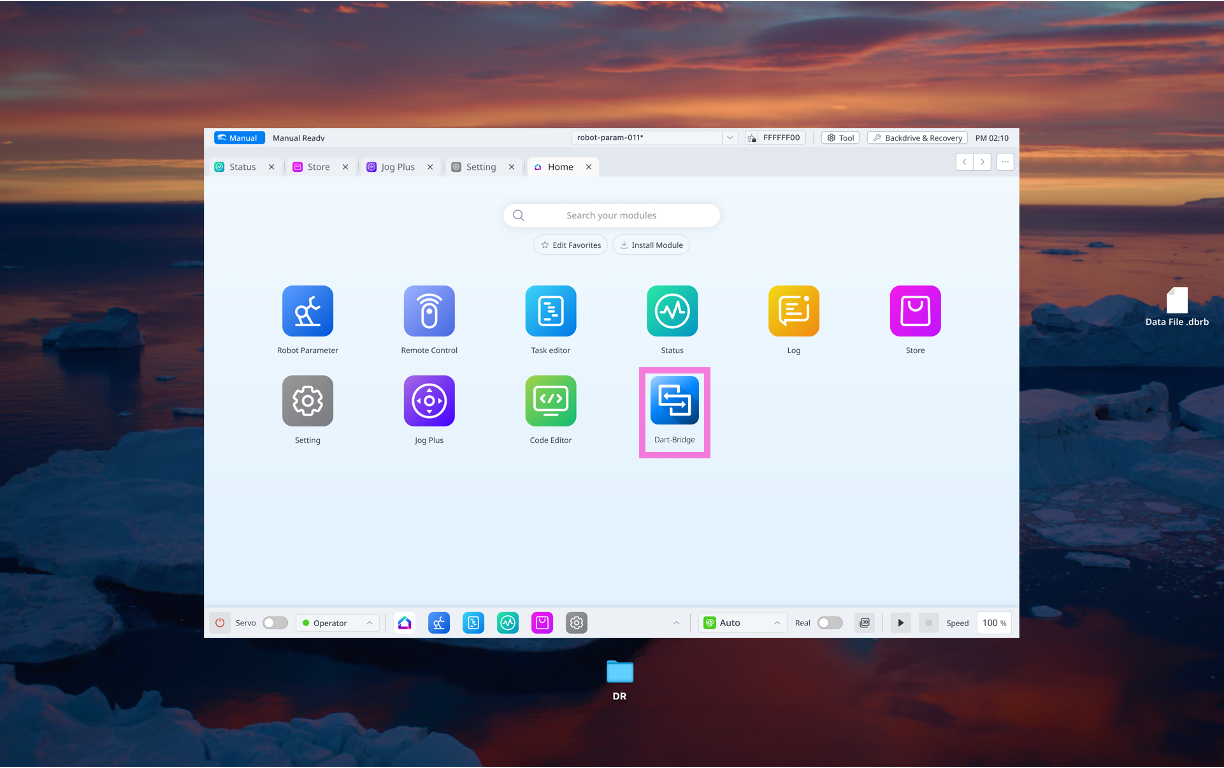

Run the Dart-Bridge module of the Dart-Platform.
-

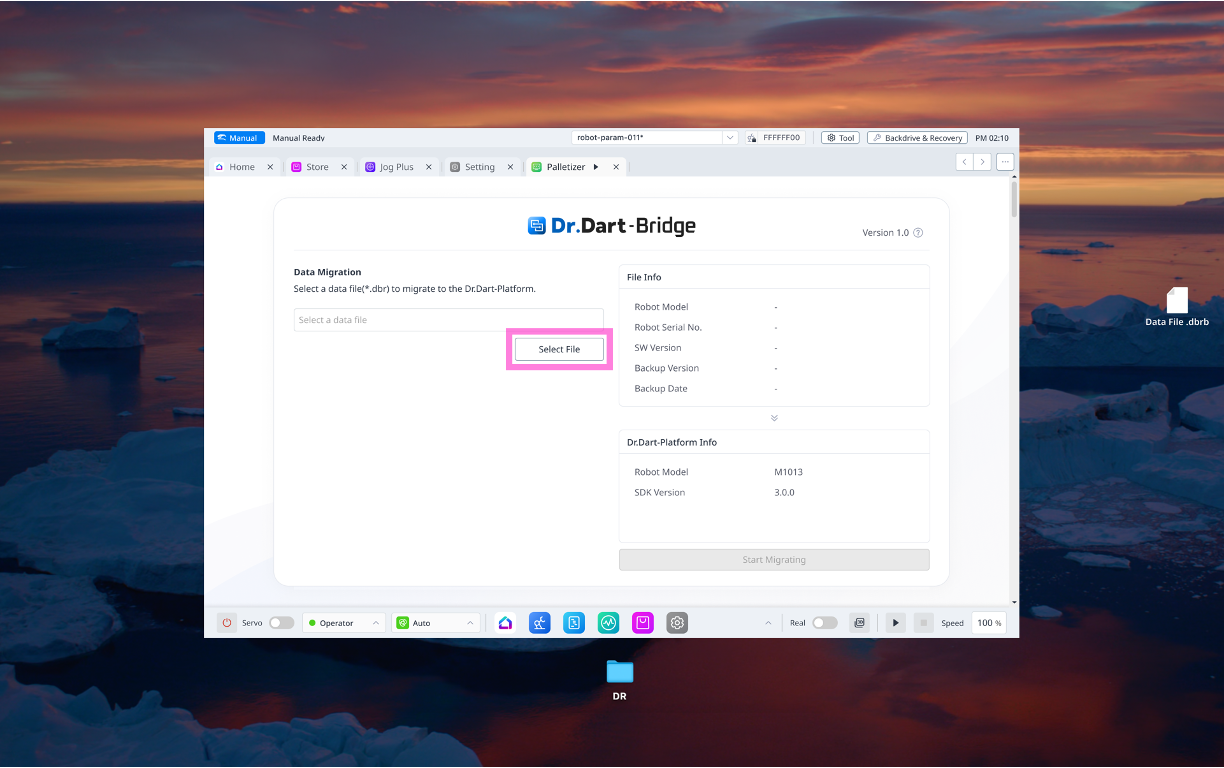

Click the [Select File] button on the Dart-Bridge module main screen.
-

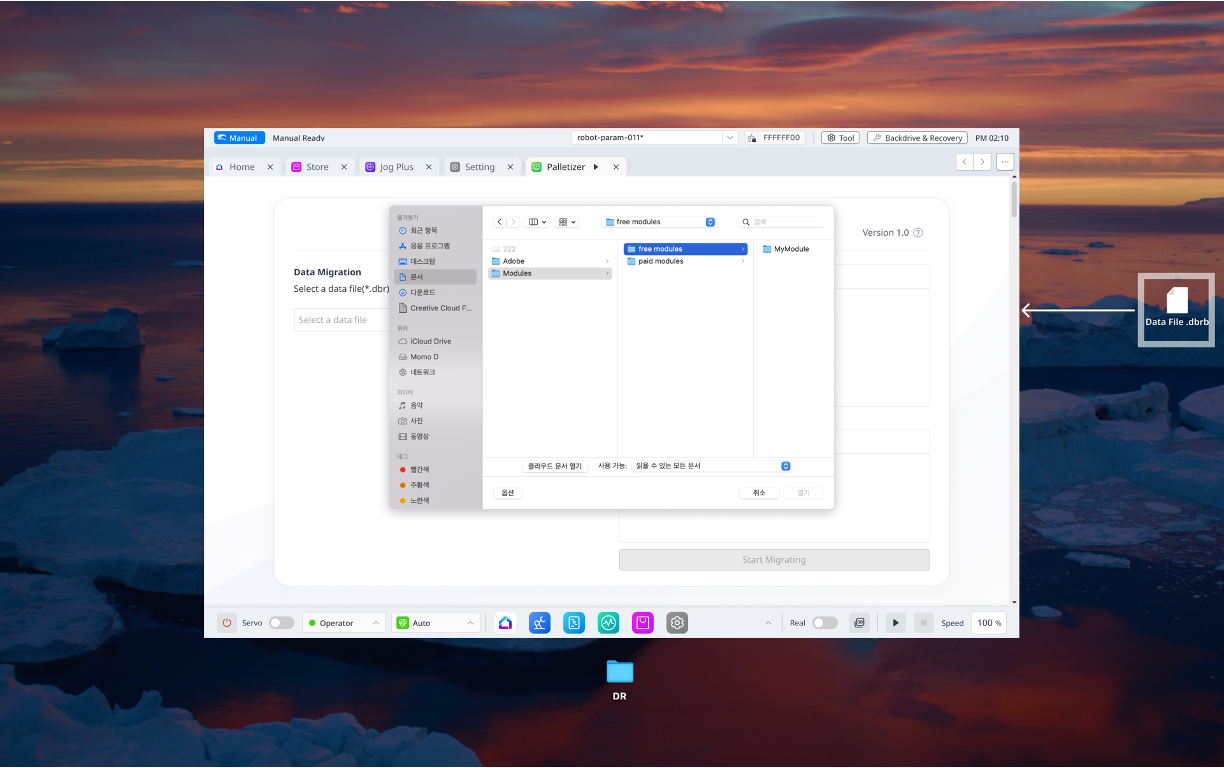

When the Local File Explorer pop-up is called, select the file you converted through Dart-Bridge SW.
-

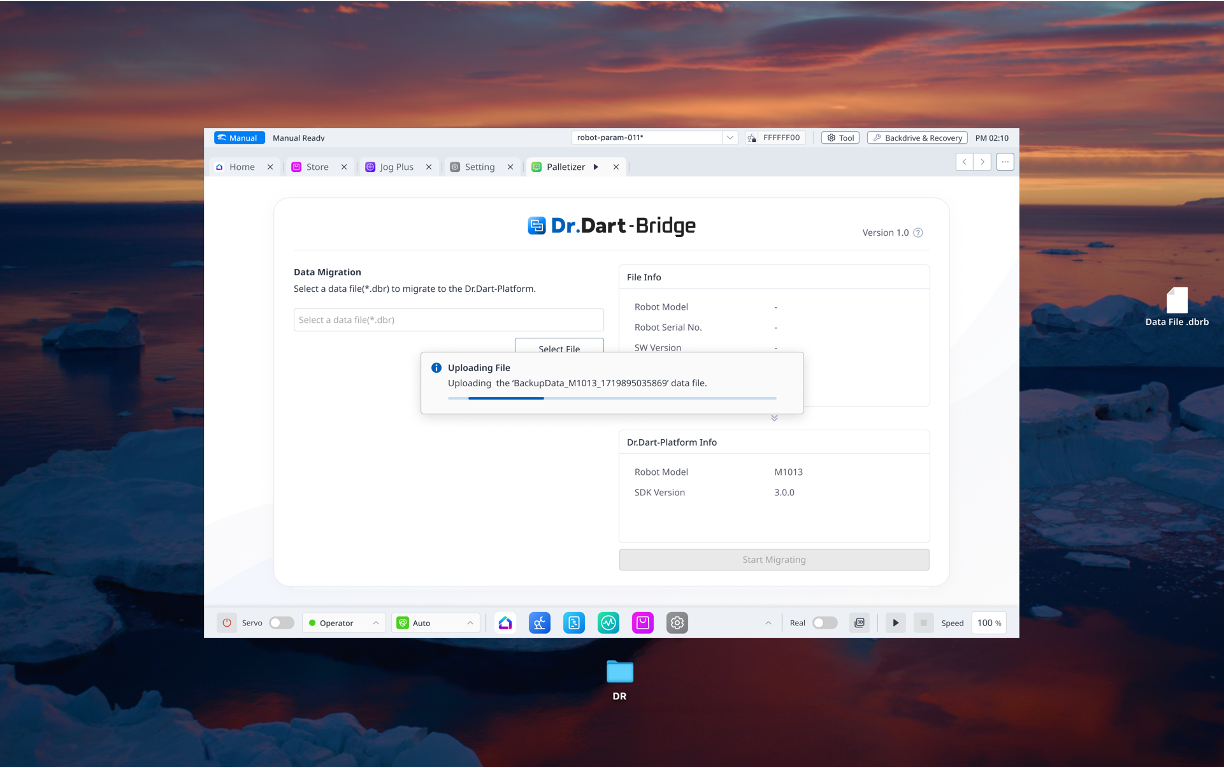

Upload to the selected file module.
-

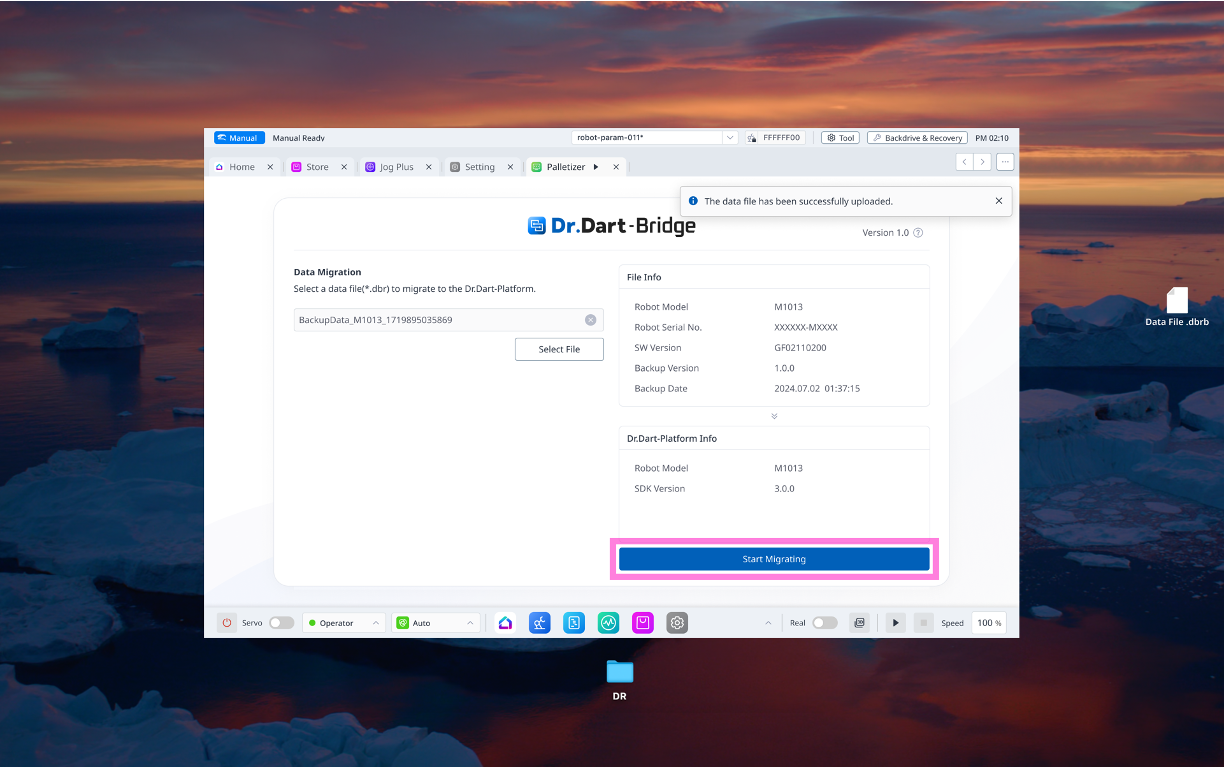

When the file is uploaded, click the [Start Migrating] button.
-

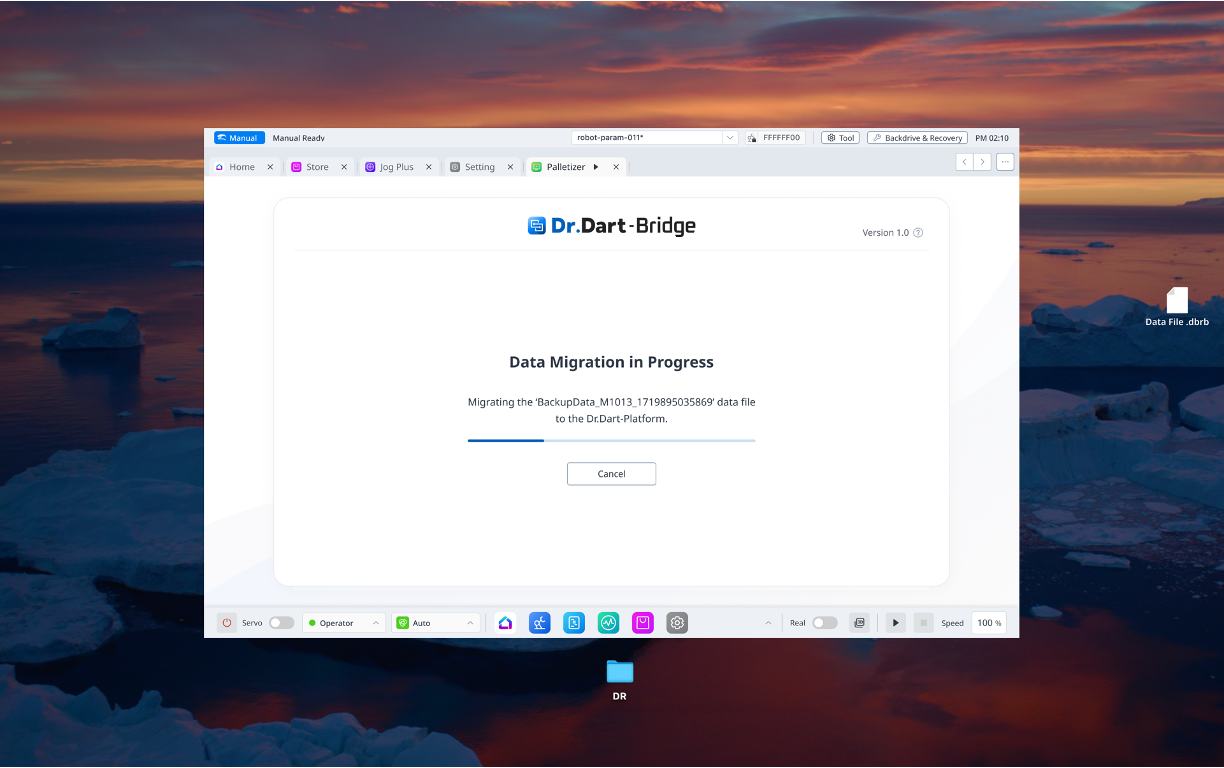

Start data migration.
-

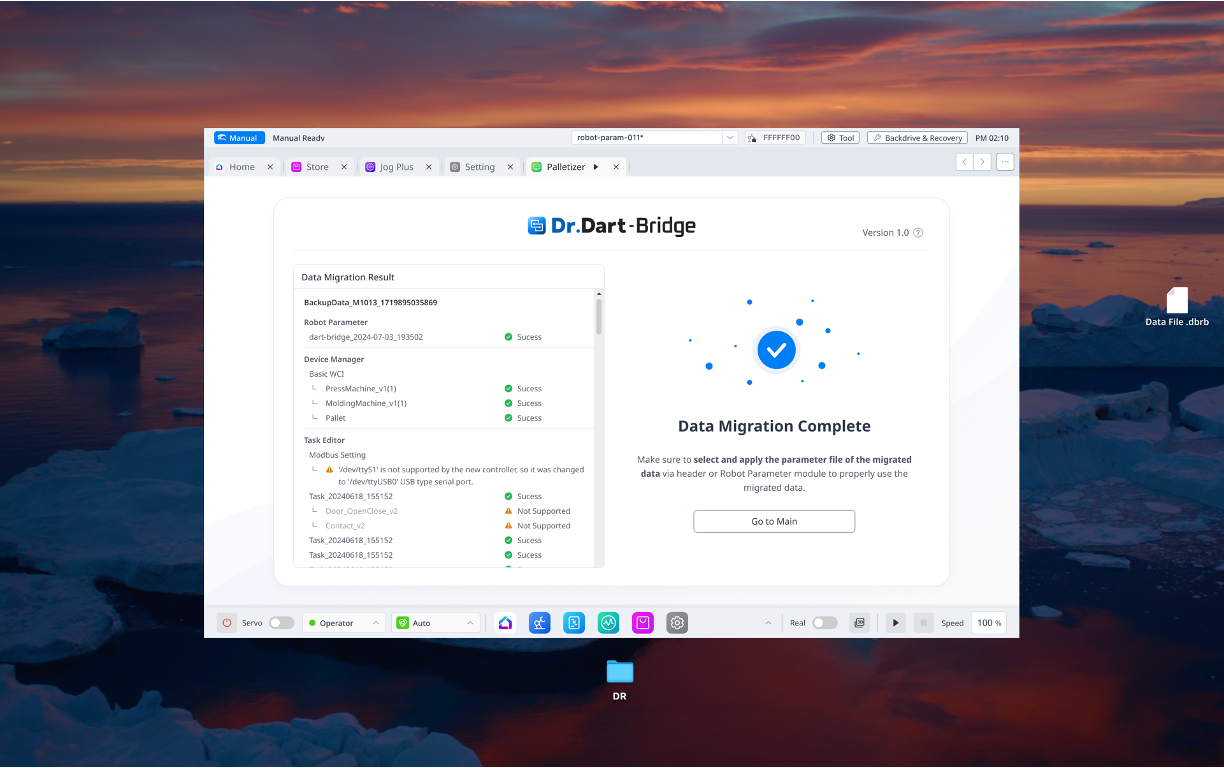

Complete the data migration.
