P3020 Stop Category 0
Joint 1
Extension=100%, Speed=100%, Payload=100%
|
|
Stopping distance (rad) |
Stopping time (ms) |
|---|---|---|
|
Axis 1 |
0.451 |
435 |
Joint 2
Extension=100%, Speed=100%, Payload=100%
|
|
Stopping distance (rad) |
Stopping time (ms) |
|---|---|---|
|
Axis 2 |
0.385 |
624 |
|
Axis 3 |
0.00430 |
Joint 3
Extension=100%, Speed=100%, Payload=100%
|
|
Stopping distance (rad) |
Stopping time (ms) |
|---|---|---|
|
Axis 2 |
0.0192 |
132 |
|
Axis 3 |
0.0993 |

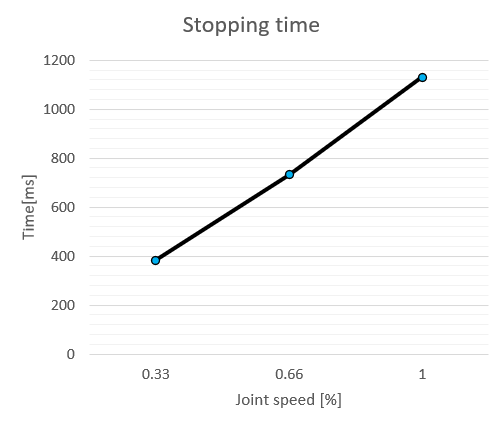

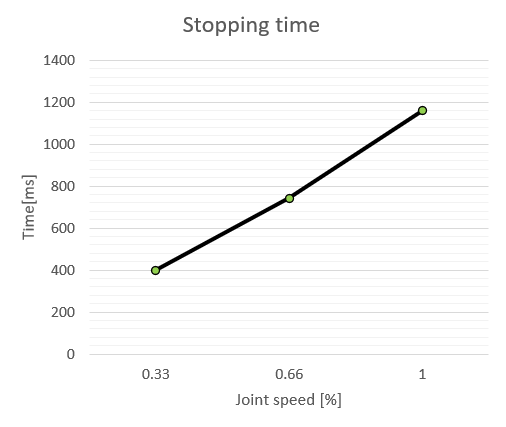

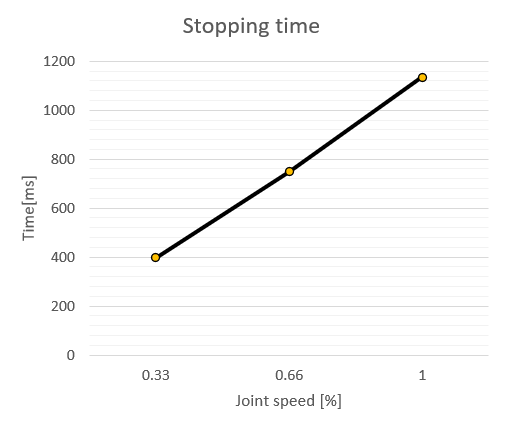

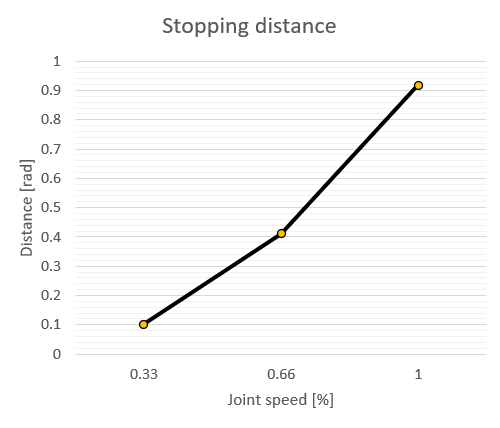

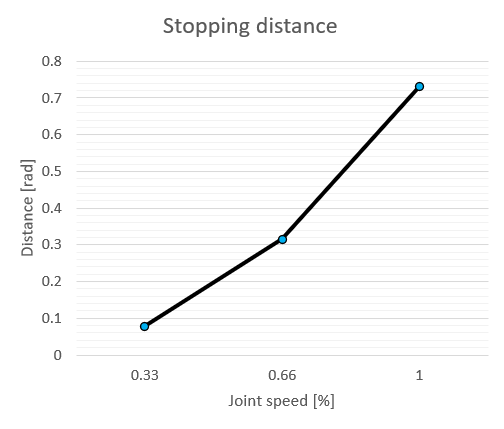

P3020 Stop Category 1
Stop Distance and Stop Time of Joint 1 (Base)
|
Stop Distance at Max. Load (rad) |
Stop Time at Max. Load (ms) |
|
|
Stop Distance and Stop Time of Joint 2 (Shoulder)
|
Stop Distance at Max. Load (rad) |
Stop Time at Max. Load (ms) |
|
|
Stop Distance and Stop Time of Joint 3 (Elbow)
|
Stop Distance at Max. Stretch Level (rad) |
Stop Time at Max. Stretch Level (ms) |
|
|
For P3020, Stop Distance and Stop Time are not affected by payload and extension.
