Flange 数字 Output 规格

Flange 数字 output 为 PNP 规格,并且 photo coupler 输出在 output 中设置。

数字 output 激活时,相应的 output 通道变为 +24V。数字 output 禁用时,相应的 output 通道变为 open (floating)。

数字 output 的电气规格如下:

参数

最小值

Typ

最大值

单位

驱动电流 10mA 时的电压

23

-

-

V

驱动电流 50mA 时的电压

22.8

-

23.7

V

驱动电流

0

-

50

mA

注意

  • 数字 output 不受电流限制。在运行过程中忽视上述规格可能会导致产品永久损坏。

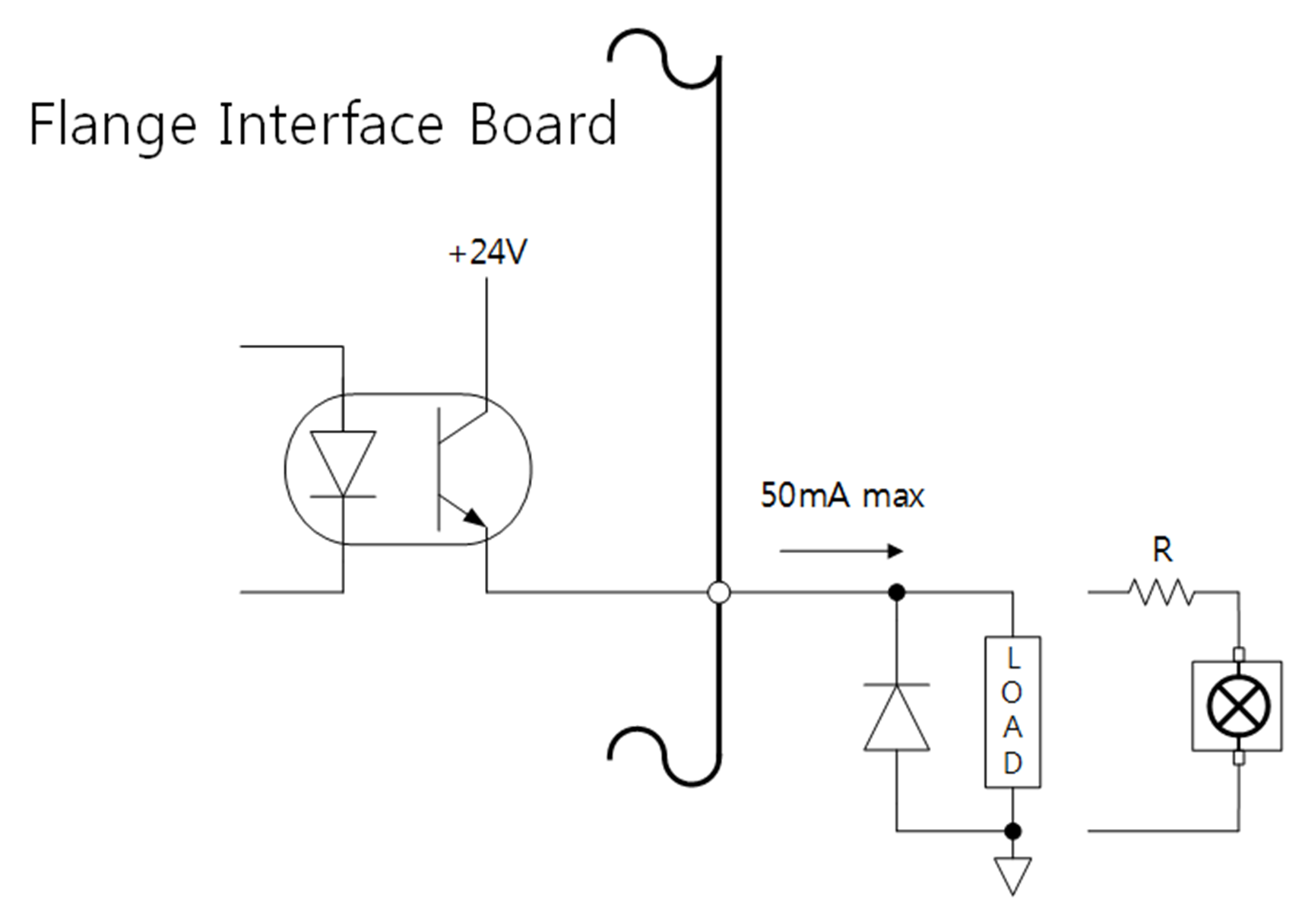

  • 下图是数字 output 设置的示例,供连接 tool 和 gripper 时参考。
  • 设置电路时,请确保断开机器人的电源。
