Visual Servoing

기능

  • Visual servoing 예제를 제공합니다. 예제 파일은 python 으로 작성 되어 있습니다.
    - python 소스 위치: ~/ros2_ws/src/doosan-robot2/dsr_example2/visualservoing/launch

dsr_launcher2 인자

인수명

자료형

기본값

설명

name

-

dsr01

ROBOT name space

. single robot : dsr01

. multi robot: dsr01 부터 순차적으로

  dsr02, dsr03, dsr04 …

host

-

127.0.0.1

로봇 제어기 IP

. 애뮬레이터 : 127.0.0.1

. 실제 로봇제어기 : 192.168.137.100

port

-

12345

서비스 port

mode

-

virtual

로봇 동작 모드

- virtual : 가상 동작

- real : 실제 동작

model

-

m1013

M-Series 로봇 모델

. m0609, m0617, m1013, m1509

A-Series 로봇 모델

. a0509, a0912

E-Series 로봇 모델

. e0509

H-Series 로봇 모델

. h2017, h2515

color

-

white

로봇 컬러

. white or blue

gui

-

none

Rviz2 활성화 유무

. True : Rviz2 활성화

. False : Rviz2 비활성화

옵션

  • visual_servoing.sdf 파일을 변경하여 시뮬레이션 환경을 변경할 수 있습니다.

  • /rgbd_camera/depth_image 토픽을 사용하여 depth data를 사용할 수 있습니다.

예제

BASH
1. 가상 로봇 default IP/Port
- IP : 127.0.0.1 , port = 12345

2. launch (Start the simulation)
maker 인식을 수행할 카메라를 켜기위해 visualservoing 예제의 런치파일을 실행합니다.
$ ros2 launch visualservoing dsr_bringup2_visual_servoing_gazebo.launch.py mode:=virtual host:=127.0.0.1 port:=12345 name:=dsr01 model:=m1013

3. Move to the home position
Visual servoing 수행을 위해 home position으로 이동합니다.
$ ros2 run visualservoing joint90

4. Run the visual servoing example
$ ros2 launch visualservoing visual_servoing_gz.launch.py

Camera Calibration 방법

1. camera_calibration.launch.py 에 사용된 camera_calibration.sdf 파일을 수정합니다. 사용 중인 카메라의 성능에 맞게 조정해야 합니다.

2. 카메라 보정에 필요한 패키지를 설치합니다.

BASH
$ sudo apt install ros-humble-camera-calibration
$ sudo apt install ros-humble-image-pipeline

3. camera_calibration.launch.py 를 실행합니다.

BASH
$ ros2 launch visualservoing camera_calibration.launch.py

4. Camera Calibration 노드를 실행합니다.

BASH
$ ros2 run camera_calibration cameracalibrator --pattern chessboard --size 6x8 --square 0.02 image:=/rgbd_camera/image

5. calibration 버튼이 활성화될 때까지 Gazebo에 업로드 된 바둑판을 회전하고 이동합니다.

6. calibration 버튼을 누른 후 저장 버튼을 클릭하고 터미널(Camera Calibration 노드가 실행된 위치)에 표시된 결과를 rgbd_camera_gz.yaml 파일에 적용합니다

주의

1. RAM 용량이 부족하면 build 오류가 발생할 수 있으므로 swap을 설정하여 메모리 용량을 늘려주세요.
2. Gazebo를 더 빨리 실행하려면 dsr_controller2_gz.yaml의 update_rate를 수정해야 합니다.
(Path: doosan-robot2/dsr_controller2/config/dsr_controller2_gz.yaml)

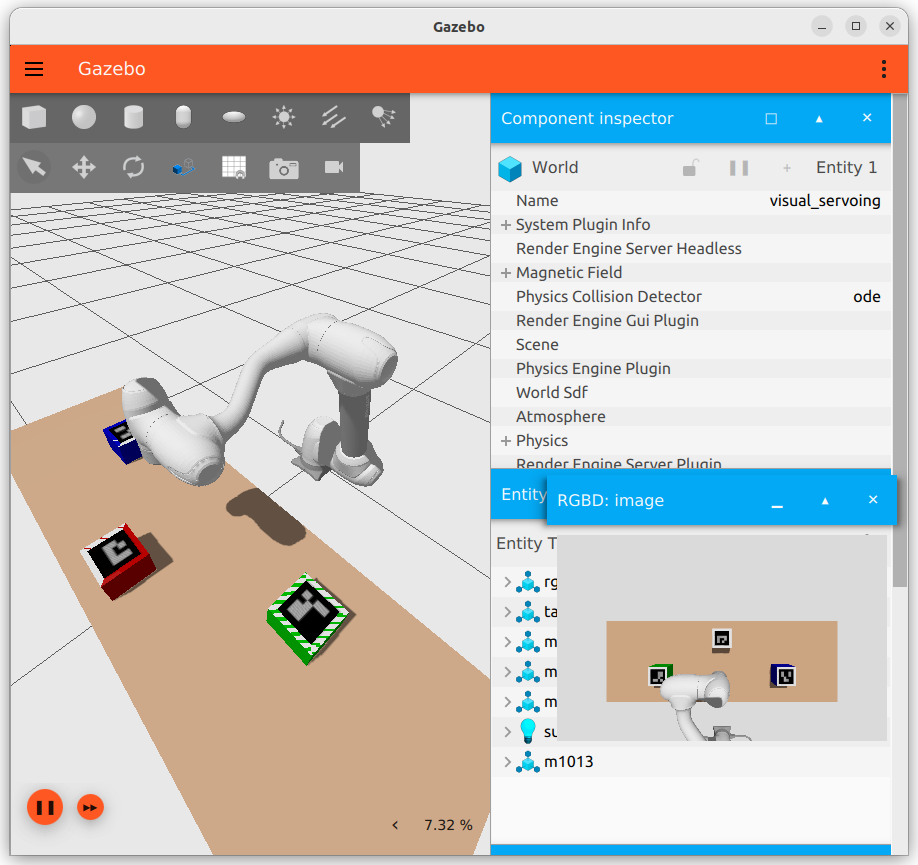

Screenshot from 2024-12-01 20-29-00-20241201-112900.png

그림 6.2 visual servoing
