Welding Processing Setting Items
Welding process parameters are the parameters determining the signal order (i.e., start/end (crater) current condition, gas discharge of welding) and time.

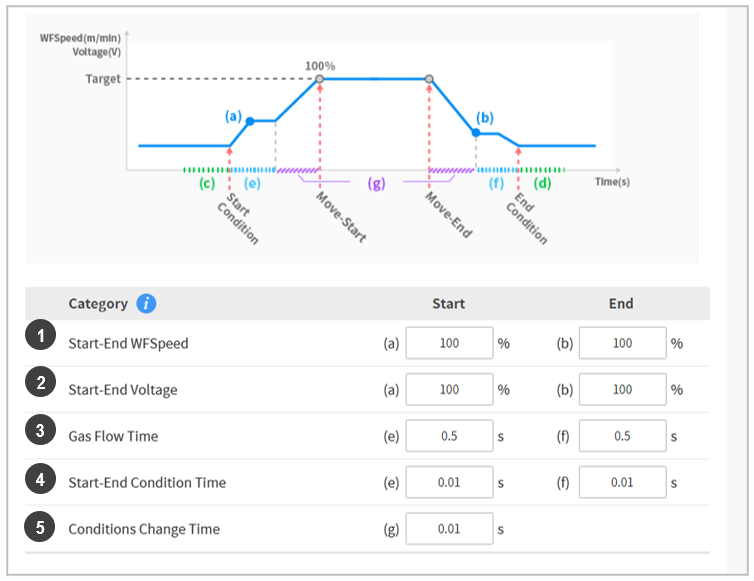

- Welding Process Parameter Settings
| No. | Item | Description |
|---|---|---|
1 | Start/End Feeding Speed Value (in %) | This sets the ratio between the start feeding speed and end feeding speed based on the target feeding speed (100%). |
2 | Start/End Voltage Value (in %) | This sets the ratio between the start voltage and end voltage based on the target voltage (100%). |
3 | Protective Gas Discharge Start/End Time (in seconds) | This sets the protective gas discharge time before welding start wire feeding/after welding end wire feeding. (can be set between 0-10) |
4 | Start/End Period (in seconds) | This sets the start and end condition times. (can be set between 0-10) |
5 | Change Welding Condition Time (in seconds) | Enter the changed time to smoothly shift from the current target to the next target when the welding condition target changes. (can be set between 0-10) |
