Secure the robot base

MANDATORY EASY 3 MIN

When securing the robot base and when installing a tool on the tool flange, the following additional components are required:

• M8 hexagonal wrench bolt: 4EA
• Φ5 place marker pin 2EA

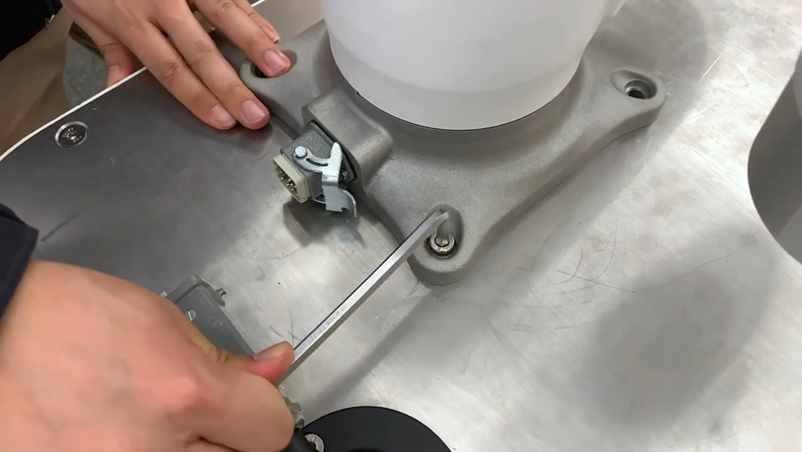

Use M8 in the four holes in the robot base to secure the robot. For more information, refer to Securing the Robot.

• It is recommended to use a tightening torque of 20 Nm to tighten the bolts. Use washers (spring-flat) to prevent loosening by vibration.
• Use two Φ5 place marker pins to accurately install the robot in a fixed location.
