Measurement Poses and Conditions

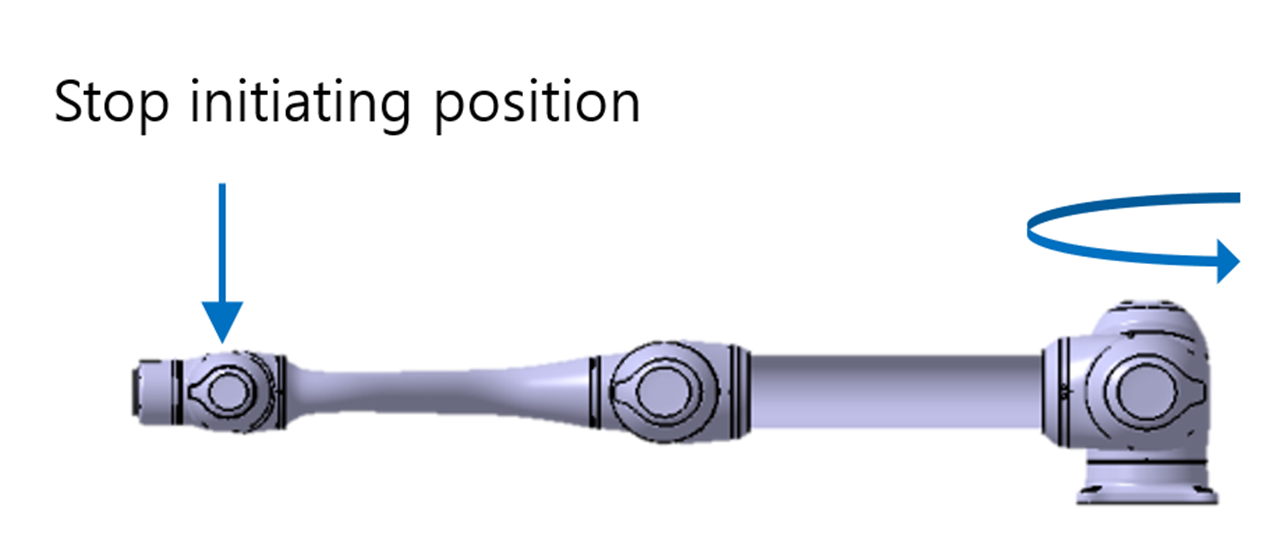

Joint 1 measurement is performed with the rotating axis perpendicular to the ground and during horizontal movement.

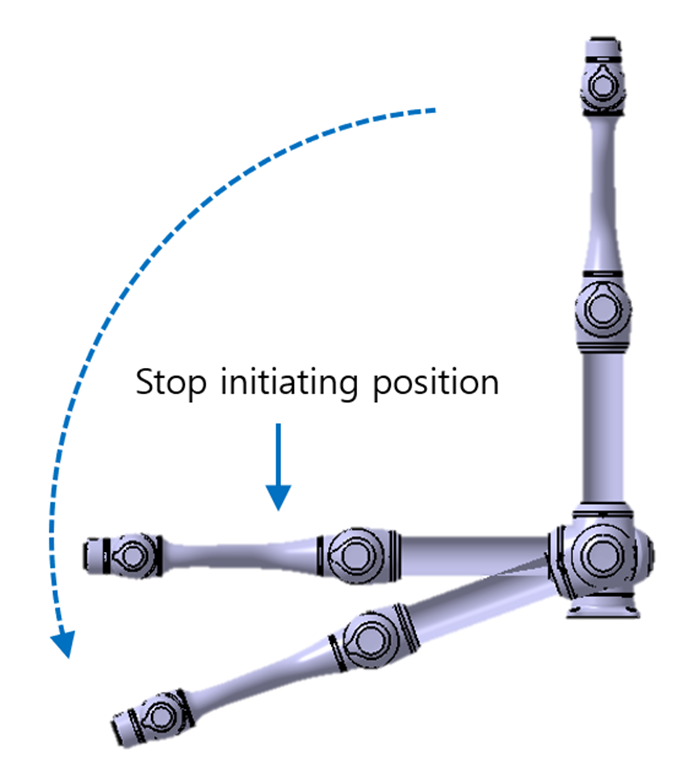

Joint 2 and Joint 3 measurements are performed with the rotating axis parallel to the ground and when the robot is stopped in a downward movement vertical to the ground.

Note

The measurements are the result of the worst case. Measurement may vary according to circumstances

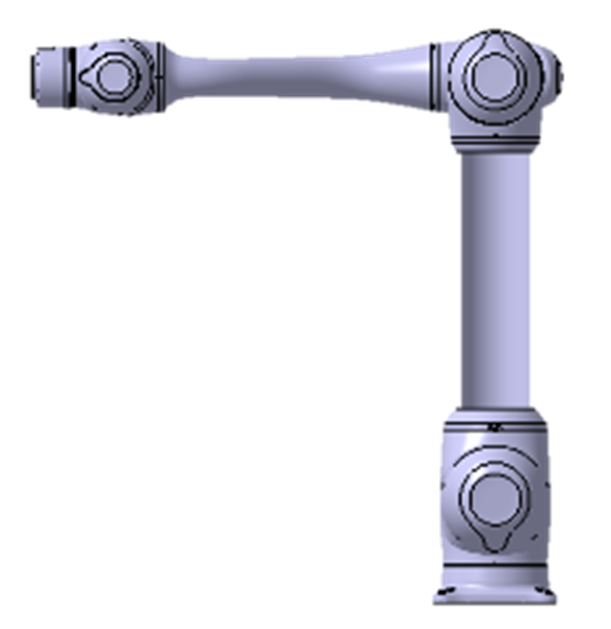

The pose for 33%, 66%, and 100% of extension



Joint 1

Joint 2

Joint 3

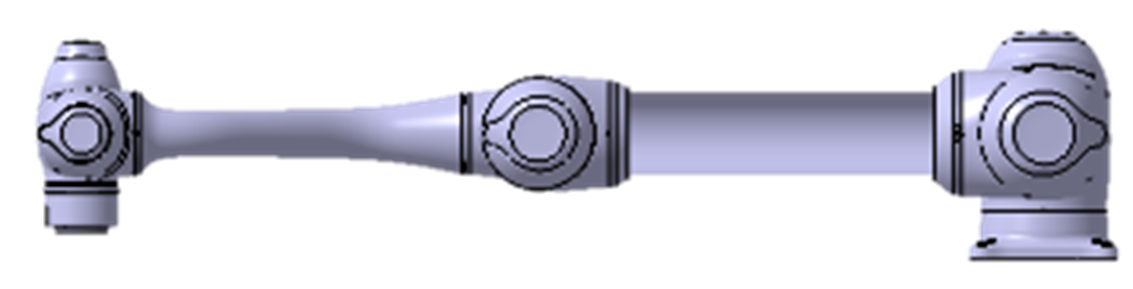

100% extension

Stop category 0

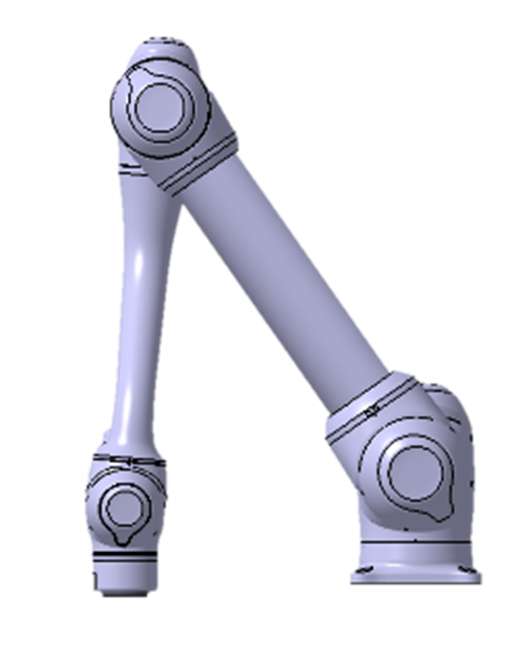

33% extension

Stop category 1







-

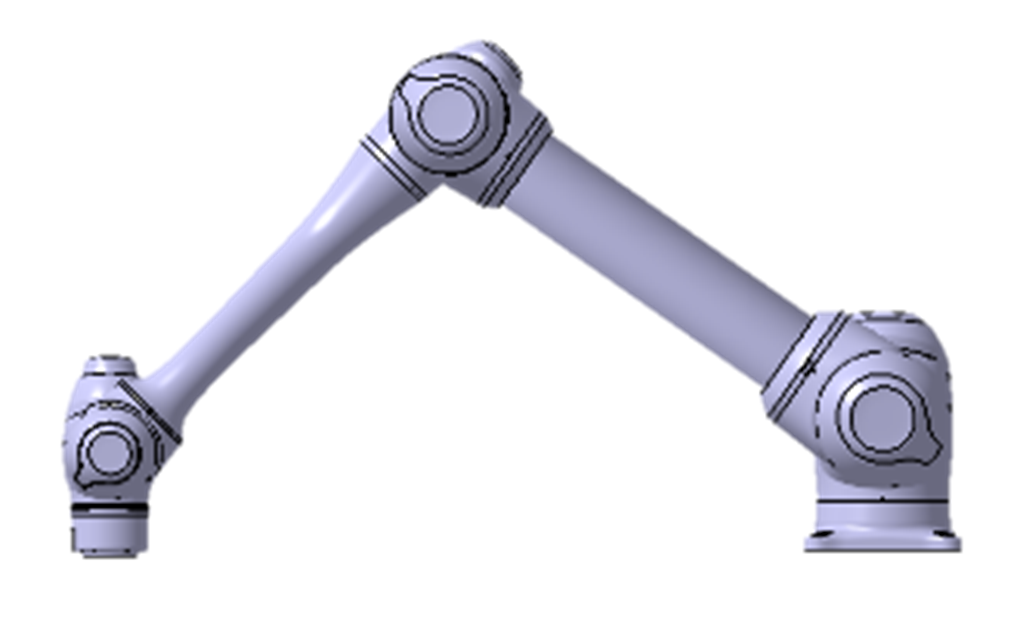

66% extension

Stop category 1







-

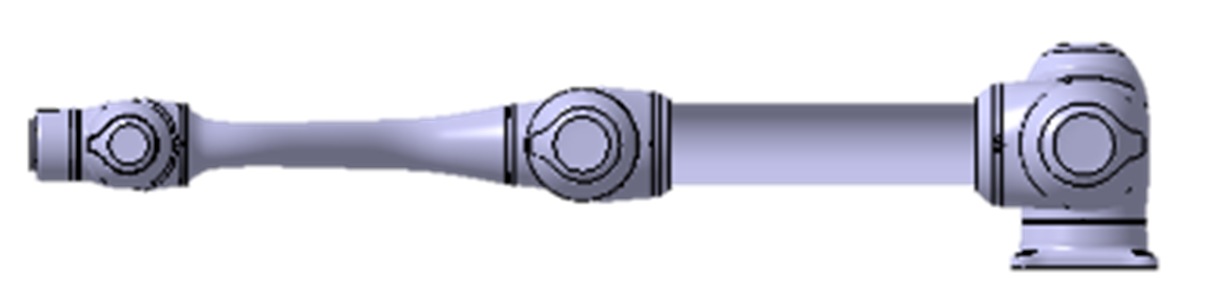

100% extension

Stop category 1

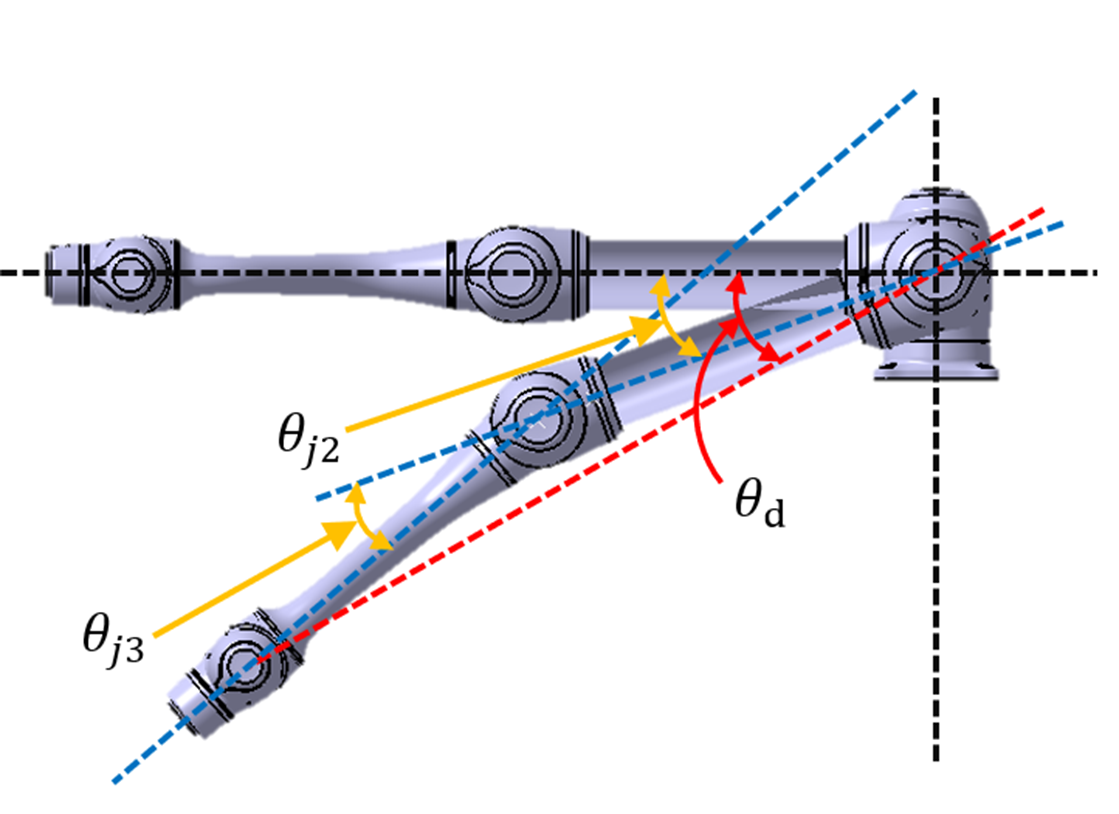

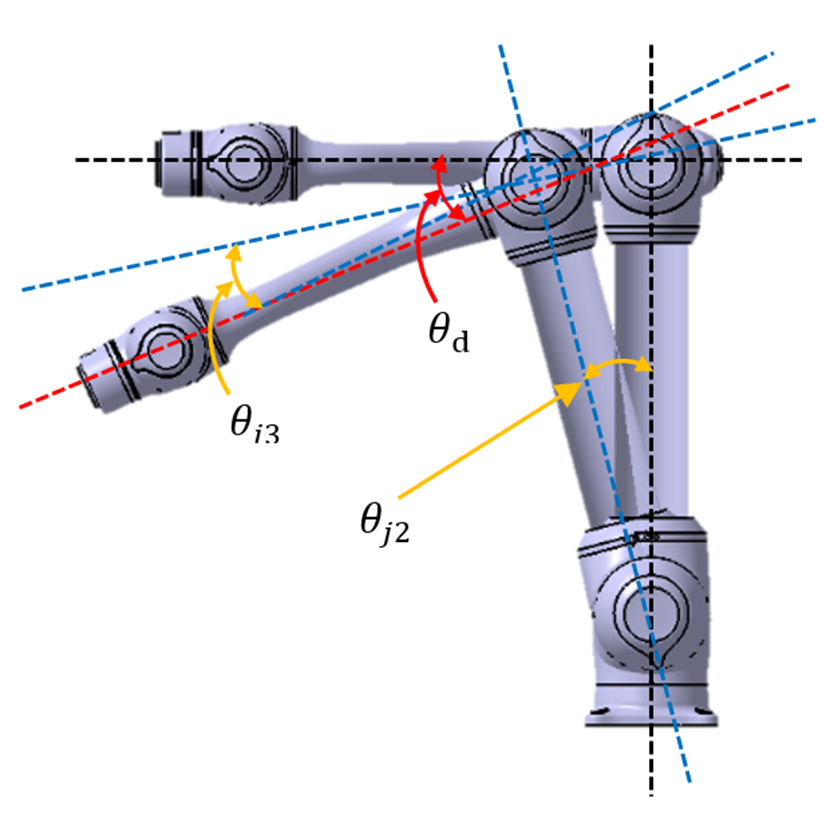

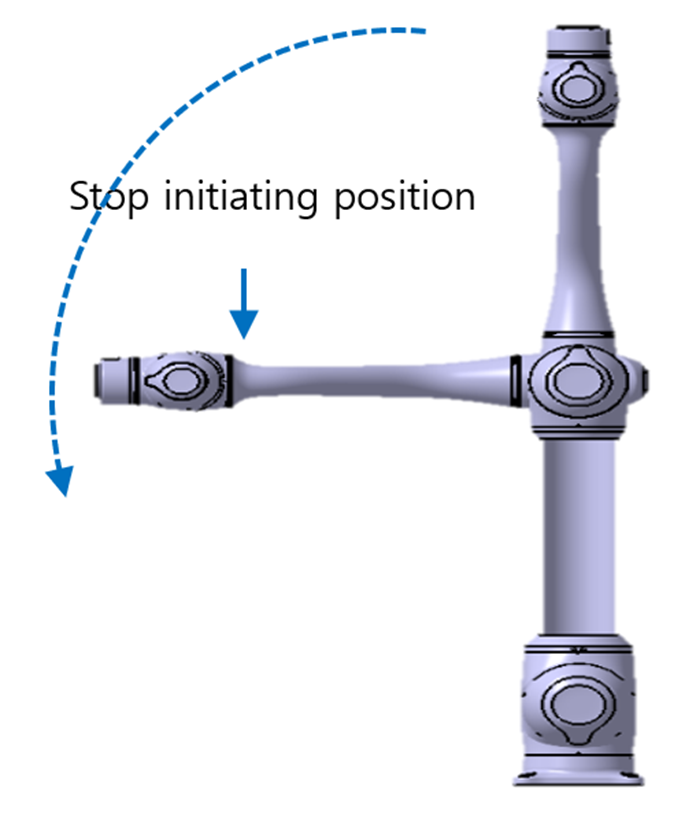

The pose when the stop is initiated and the measured angle (
)


Joint 1

Joint 2

Joint1




 No slip,

Joint2





Joint3
