Connecting the Controller, and Smart Pendant

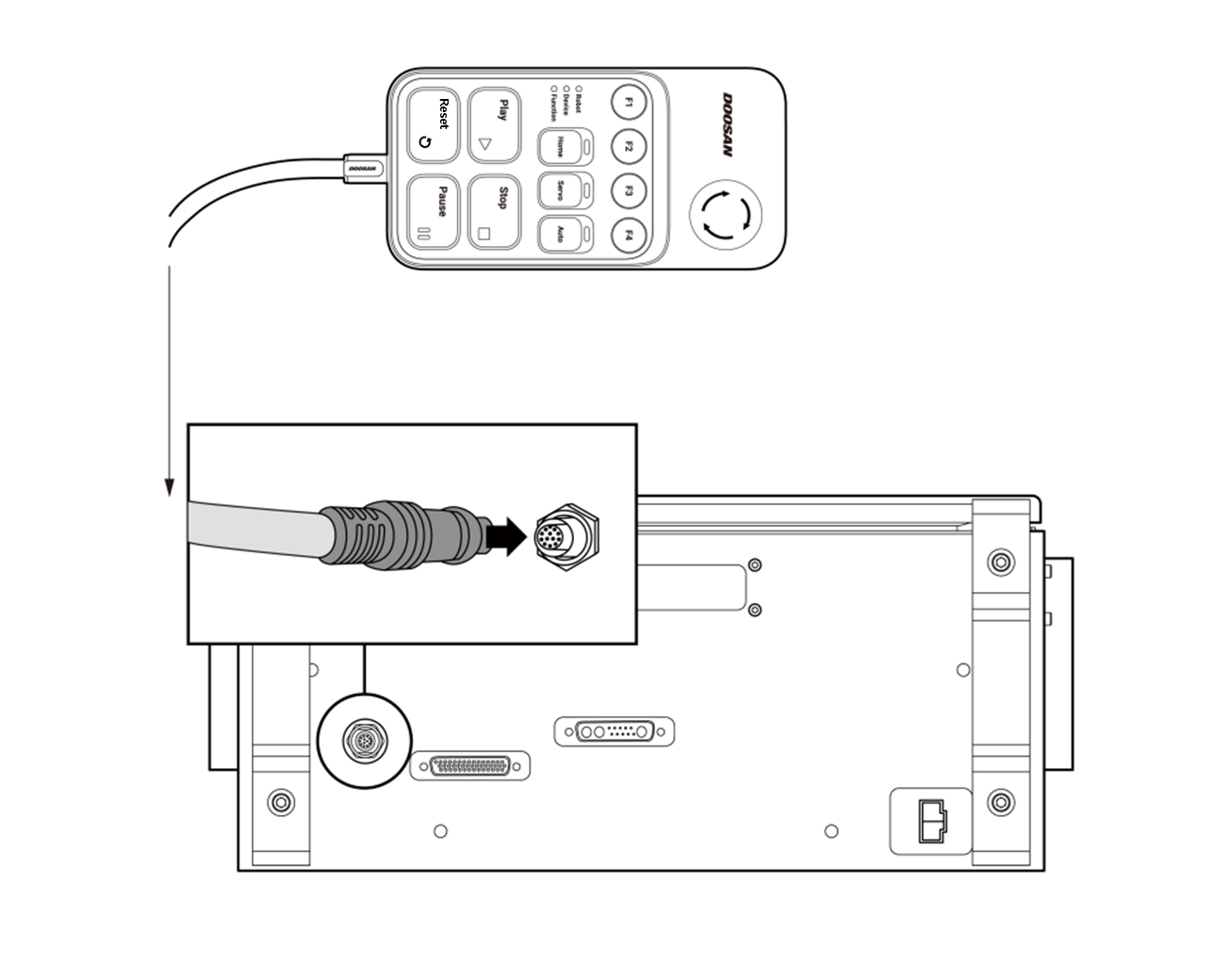

Connect the smart pendant cable to the corresponding controller, connector and install a screw lock by turning it clockwise to prevent the cable from becoming loose.

Warning

  • If the setting(Section Emergency Stop Button Setting Switch) of the emergency stop button setting switch is different from the actual configuration, the emergency stop button may fail and cause injury to the user in an emergency situation, so check the setting condition and operation of the emergency stop button.

Caution

  • Make sure to check that the pins of the cable end are not damaged or bent before connecting the cable.
  • If the smart pendant is used by hanging it on the wall or on the controller, be careful not to trip on the connecting cables.
  • Be careful not to allow the controller, smart pendant and cable to come in contact with water.
  • Do not install the controller and smart pendant in a dusty or wet environment.
  • The controller and smart pendant must not be exposed to dust conditions exceeding IP20 ratings. Be especially careful in environments that have conductive dust.
  • Ensure that the smart pendant cable curvature is greater than the minimum curvature radius (120 mm).

Note

  • When configuring the system, it is recommended to install a noise reducer to prevent noise influence among devices and system malfunctioning.

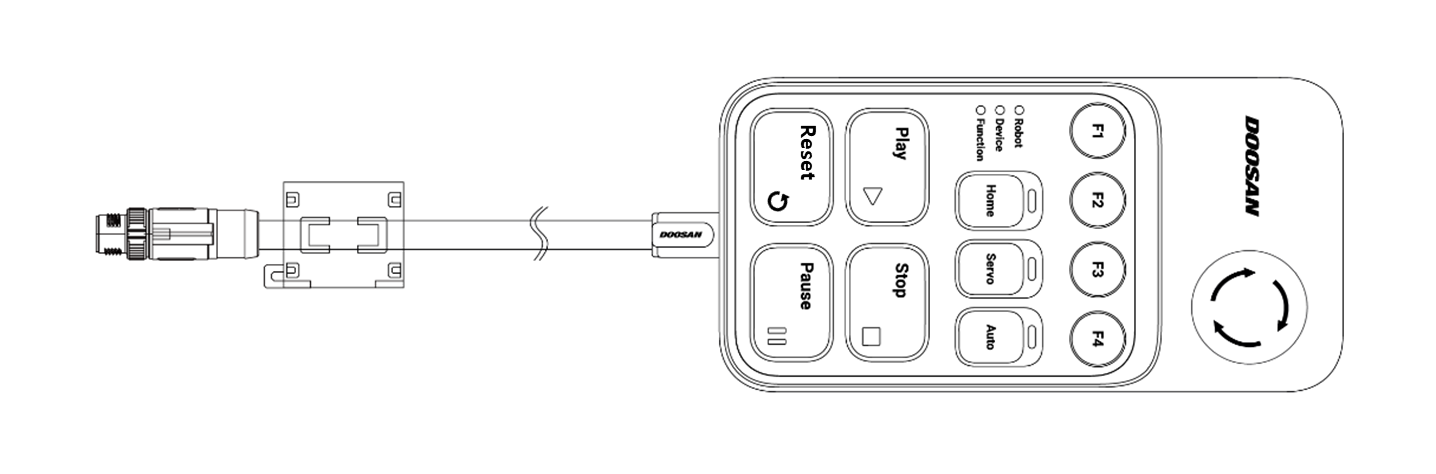

  • If the smart pendant is affected by the noise generated by electromagnetic waves, it is necessary to install a ferrite core to ensure normal operation. The installation location is as follows:
