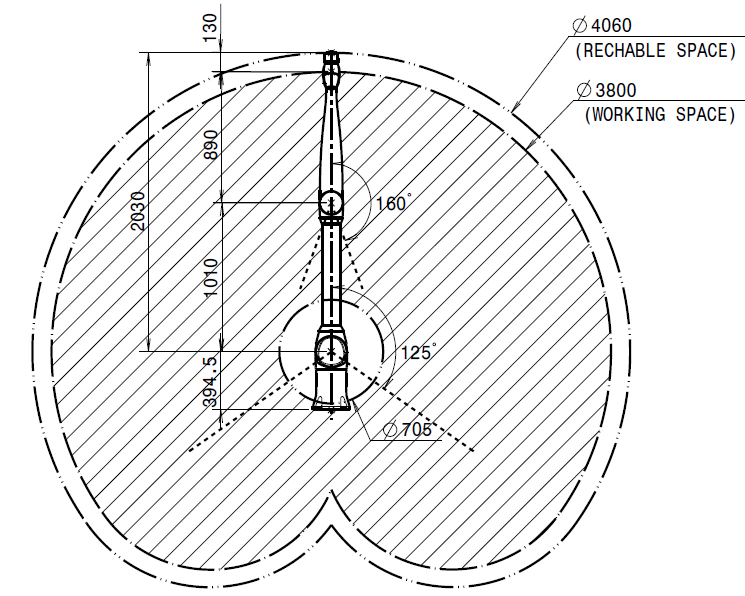

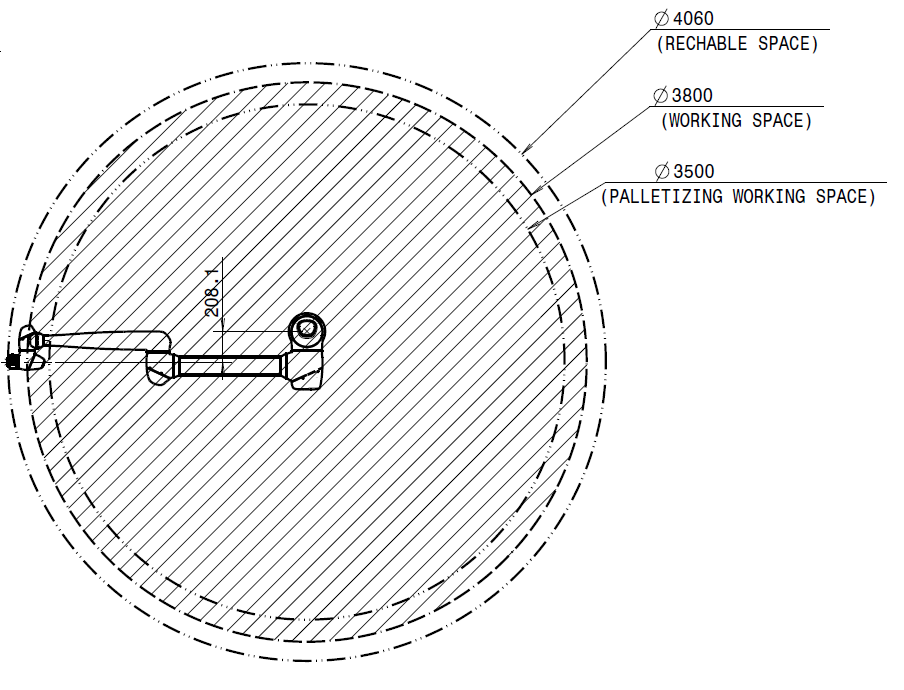

Robot operating space
P3020
|
|
|---|
Max. Payload within operating space

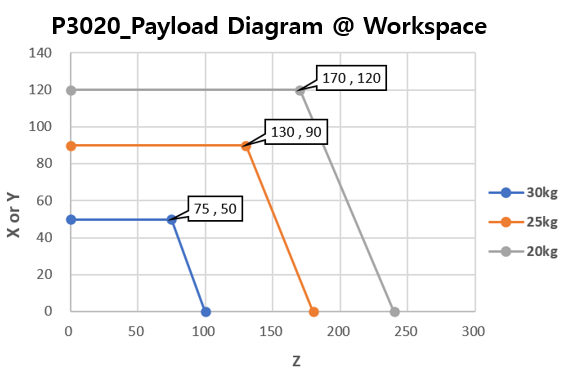

The maximum payload of the robot within its operating space changes according to the distance from the center of gravity. Payload per distance is as follows:
Note
This load diagram assumes a small tool load volume. Tools with a larger volume will have greater limitations in payload above the tool’s center of gravity compared to a tool with an equal weight but smaller volume, and in such cases, vibration may occur.
P3020
Allowed Moment and Inertia
The allowed moment and inertia for the J4-J6 robot are as follows:
|
Model Name
|
J4 |
J5 |
J6 |
|||
|---|---|---|---|---|---|---|
|
Allowed Moment |
Inertia |
Allowed Moment |
Inertia |
Allowed Moment |
Inertia |
|
|
P3020 |
- |
- |
55 Nm |
3.1 kg㎡ |
36 Nm |
2.0 kg㎡ |
Tool Center Point (TCP)

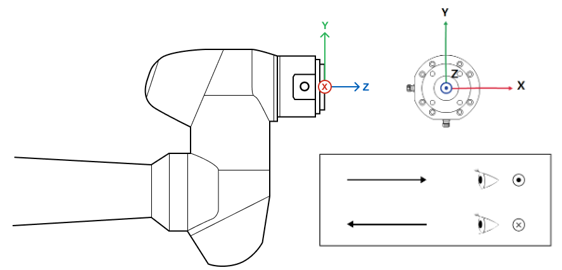

Refer to the figure below for TCP.
Basic specifications
|
Model Name |
P3020 |
|---|---|
|
Weight |
83 kg |
|
Payload within Work Radius |
30 kg |
|
Max. Work Radius |
1900 mm |
|
Number of Axes |
5 |
|
Max. TCP Speed |
Over 1 m/s |
|
Position Repeatability (ISO 9283) |
±0.1 mm |
|
Protection Rating |
IP 54 |
|
Noise |
< 65 dB |
|
Installation Direction |
Floor Only |
|
Controller and Teaching Pendant |
Doosan Controller & Teach Pendant |
|
Vibration and Acceleration |
10≤f<57㎐ - 0.075mm amplitude 57≤f≤150㎐ – 1G |
|
Impact |
Max Amplitude : 50㎨(5G)
|
|
Operating Temperature |
0 ℃ ~45 ℃ (273K to 318K) |
|
Storage Temperature |
-5 ℃ ~50 ℃ (268K to 323K) |
|
Humidity |
20% ~ 80% |
Axis Specifications
|
Model Name |
P3020 |
|---|---|
|
Operating Angle |
|
|
J1 |
±360° (TP:±360°) |
|
J2 |
±125° (TP:±95°) |
|
J3 |
±160° (TP:±135°) |
|
J4 |
- |
|
J5 |
±360° (TP:±135°) |
|
J6 |
±360° (TP:±360°) |
|
Max. Speed per Axis (rated payload operation) |
|
|
J1 |
100 °/s |
|
J2 |
80 °/s |
|
J3 |
80 °/s |
|
J4 |
- |
|
J5 |
200 °/s |
|
J6 |
360 °/s |
