Network Connection

Laptops, TCP/IP devices, Modbus equipment and SVMs can be used by connecting them to the network connection terminal inside the controller.

Connect cables to dedicated ports according to the network application.

  • WAN: Connecting external Internet

  • LAN: Connecting peripherals using TCP/IP or Modbus protocol

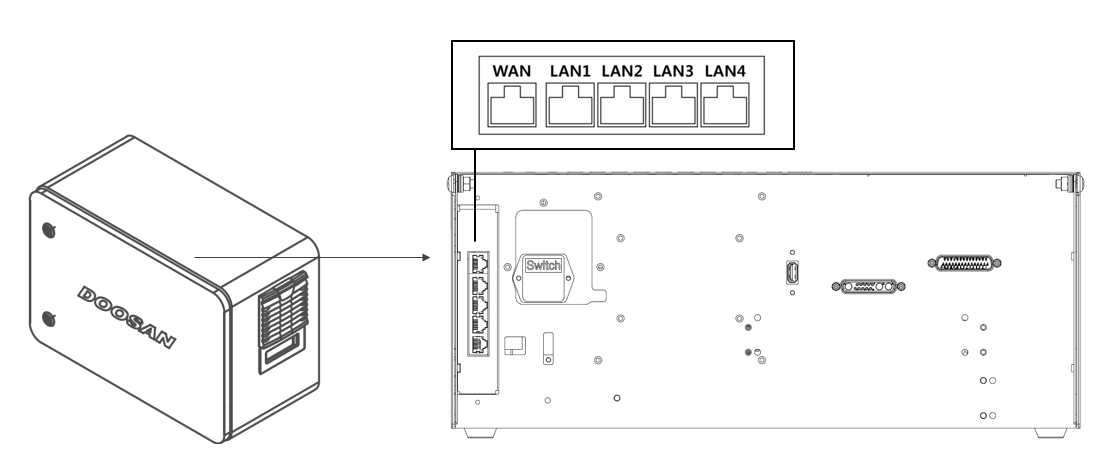

Connecting the cable to the network connection terminal shown in the figure below connects the network.



Caution

In that the LAN4 port is for connecting with the internal controller, be careful not to connect it to other equipment.
