Joint Move

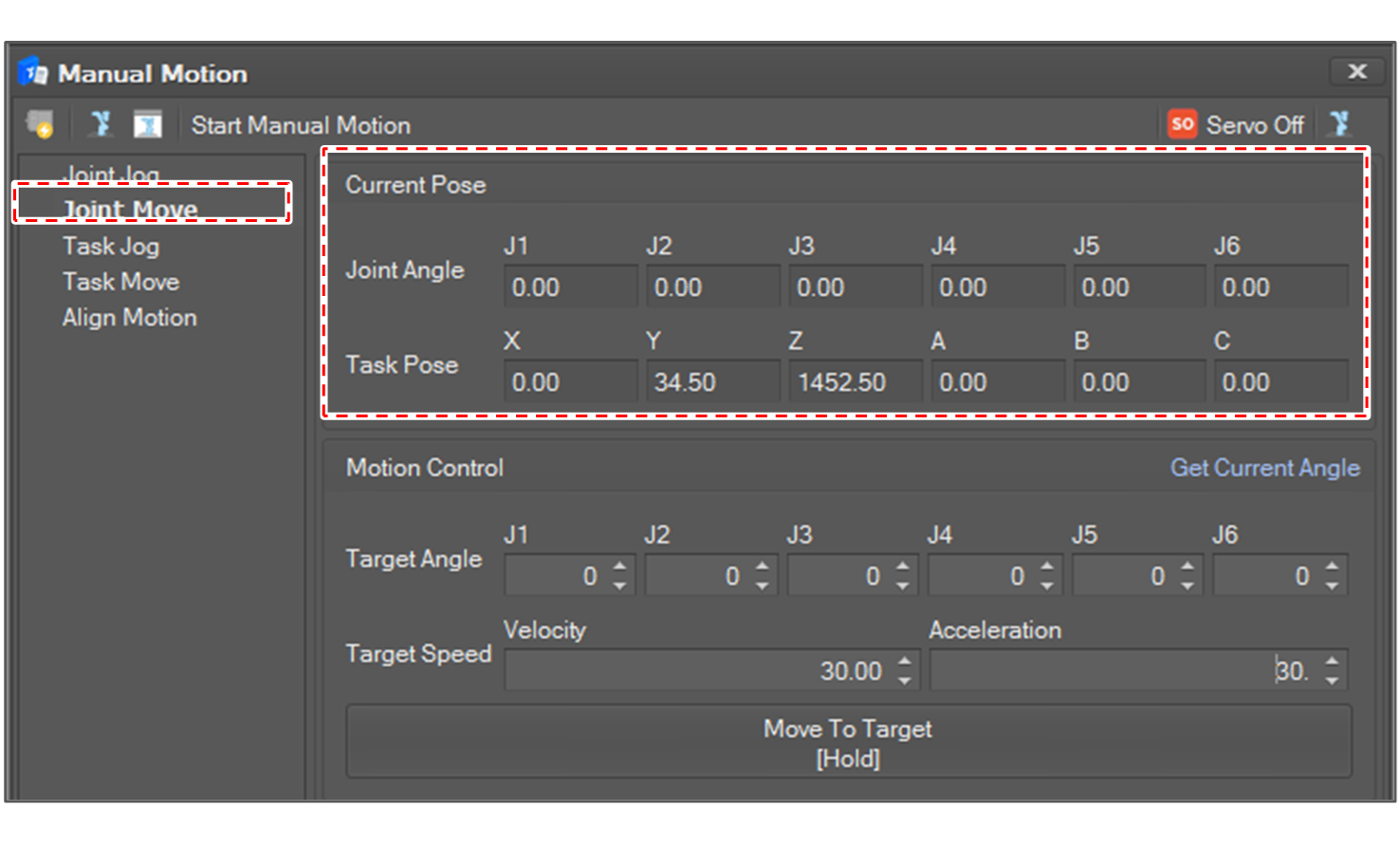

Select Joint Move in the Manual Motion list. Then, the current joint angles and TCP position are displayed and updated in 100 milliseconds.

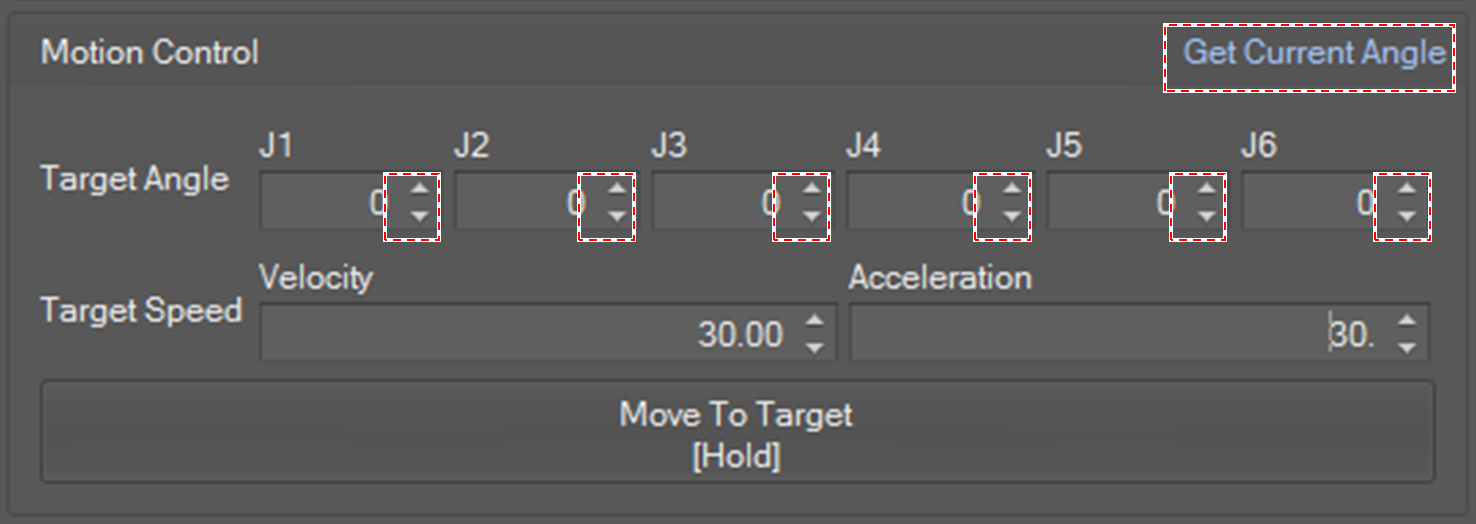

Set the target joint angles

To set the target angles, type the value or click the spin button.

• To load the current angle in the Target Angle field, click the Get Current Angle

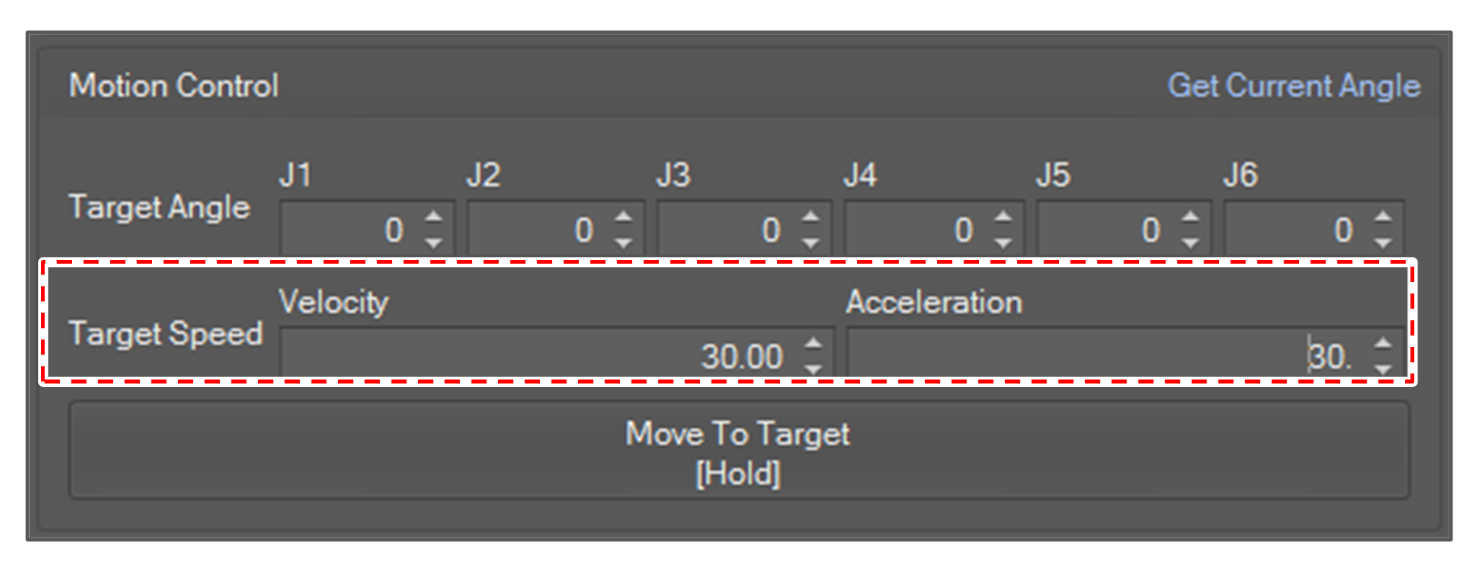

Set the speed and acceleration

To set the speed and acceleration, type the value or click the spin button.

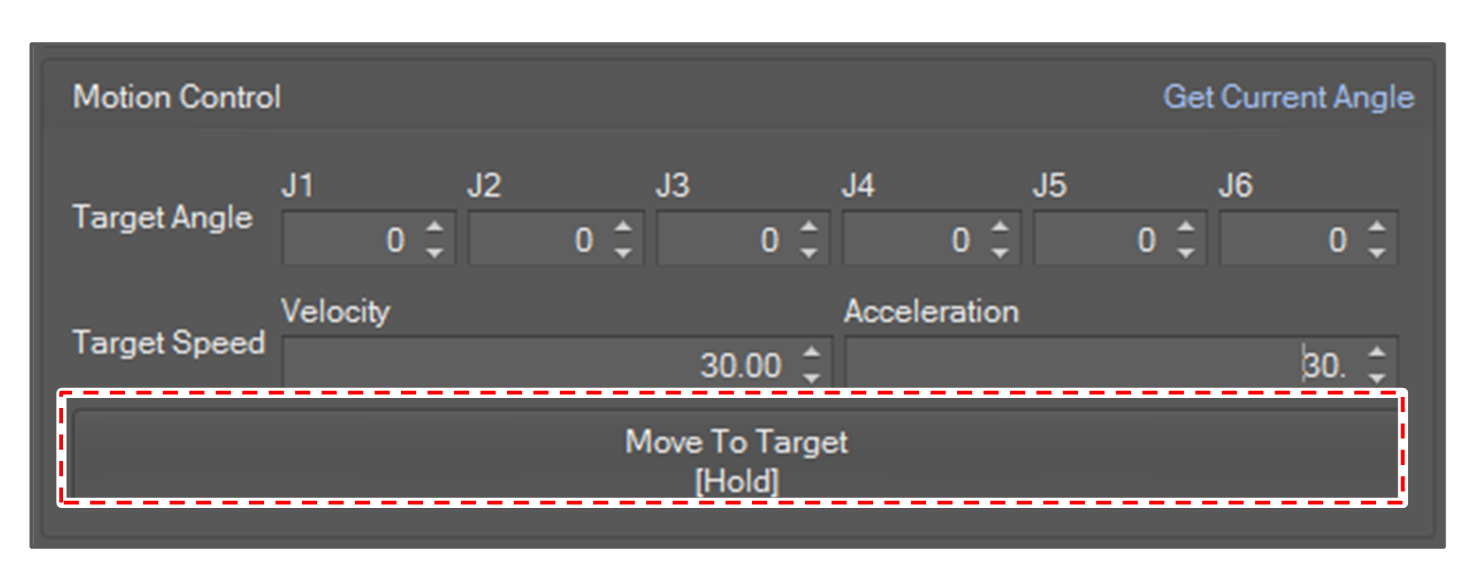

Start motion

Click and hold the Move To Target button to move the robot to the target angles in the way of “MoveJ.” If the button is released, the robot will stop.
