Align Motion

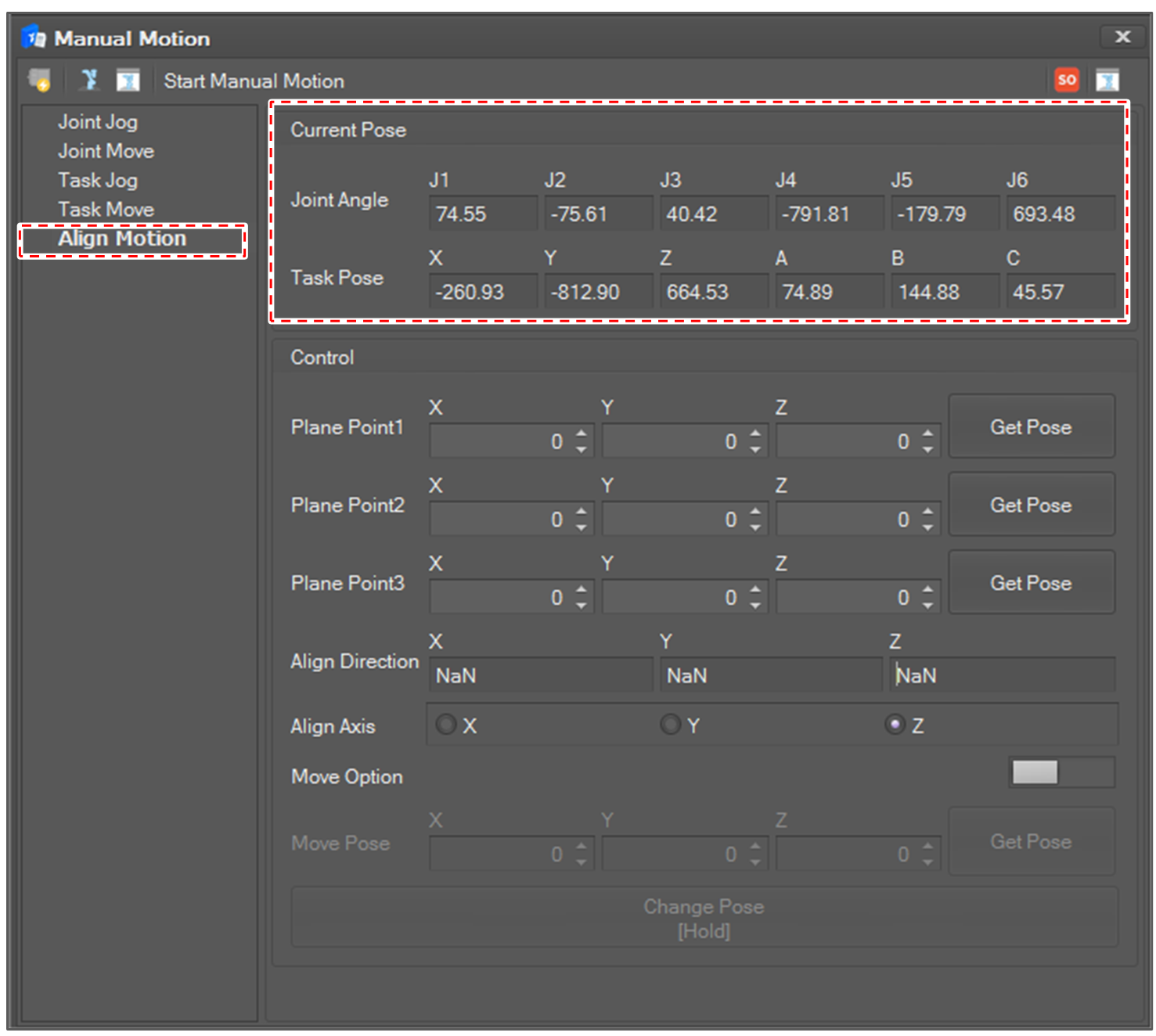

Select Align Motion in the Manual Motion list. Then, the current joint angles and TCP position are displayed and updated in 100 milliseconds.

Set Plane Points

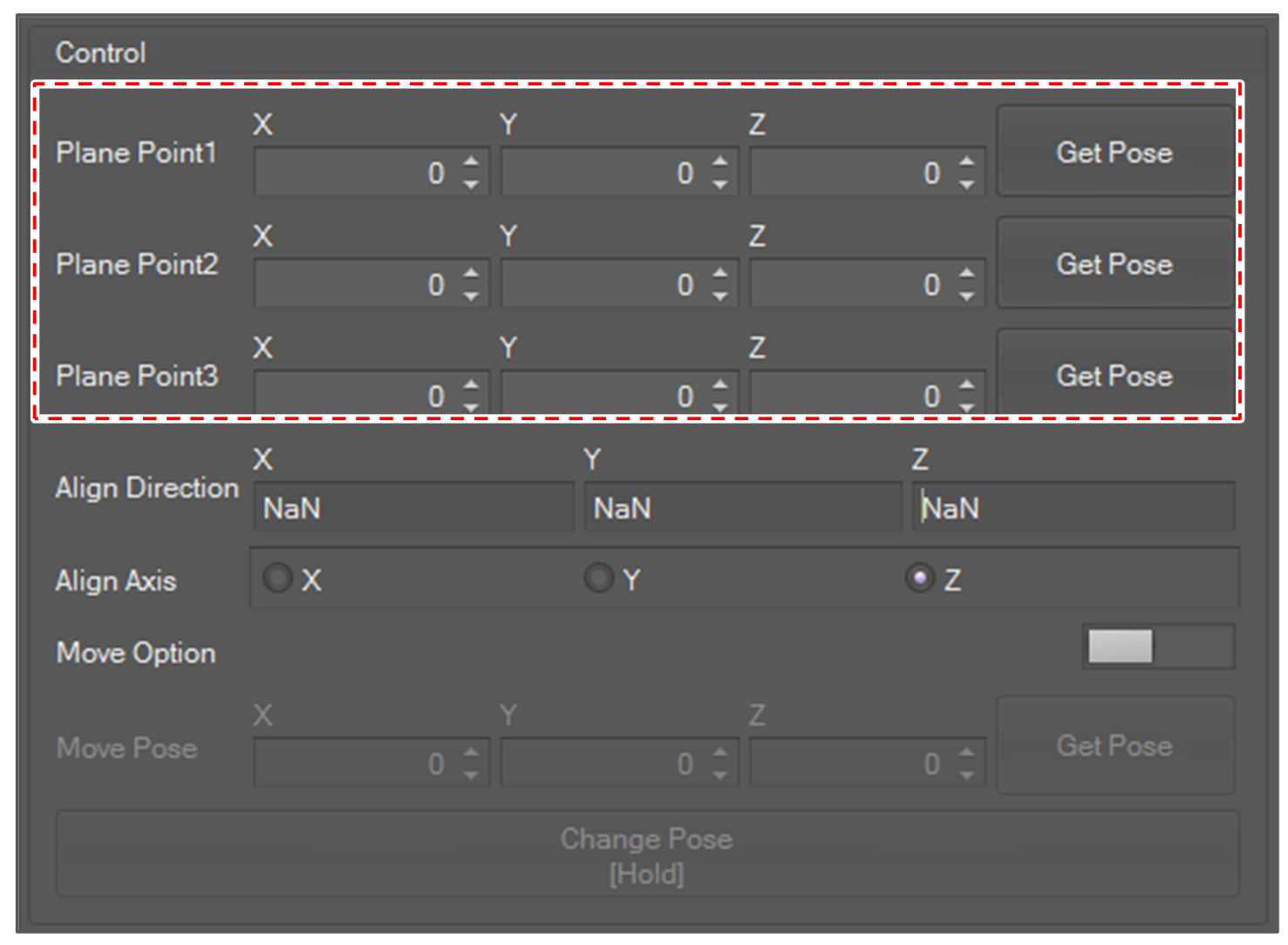

Set three plane points to decide the alignment direction. The alignment direction is the normal vector of the plane that the three plane points define.

To get the current pose, click the corresponding Get Pose button.

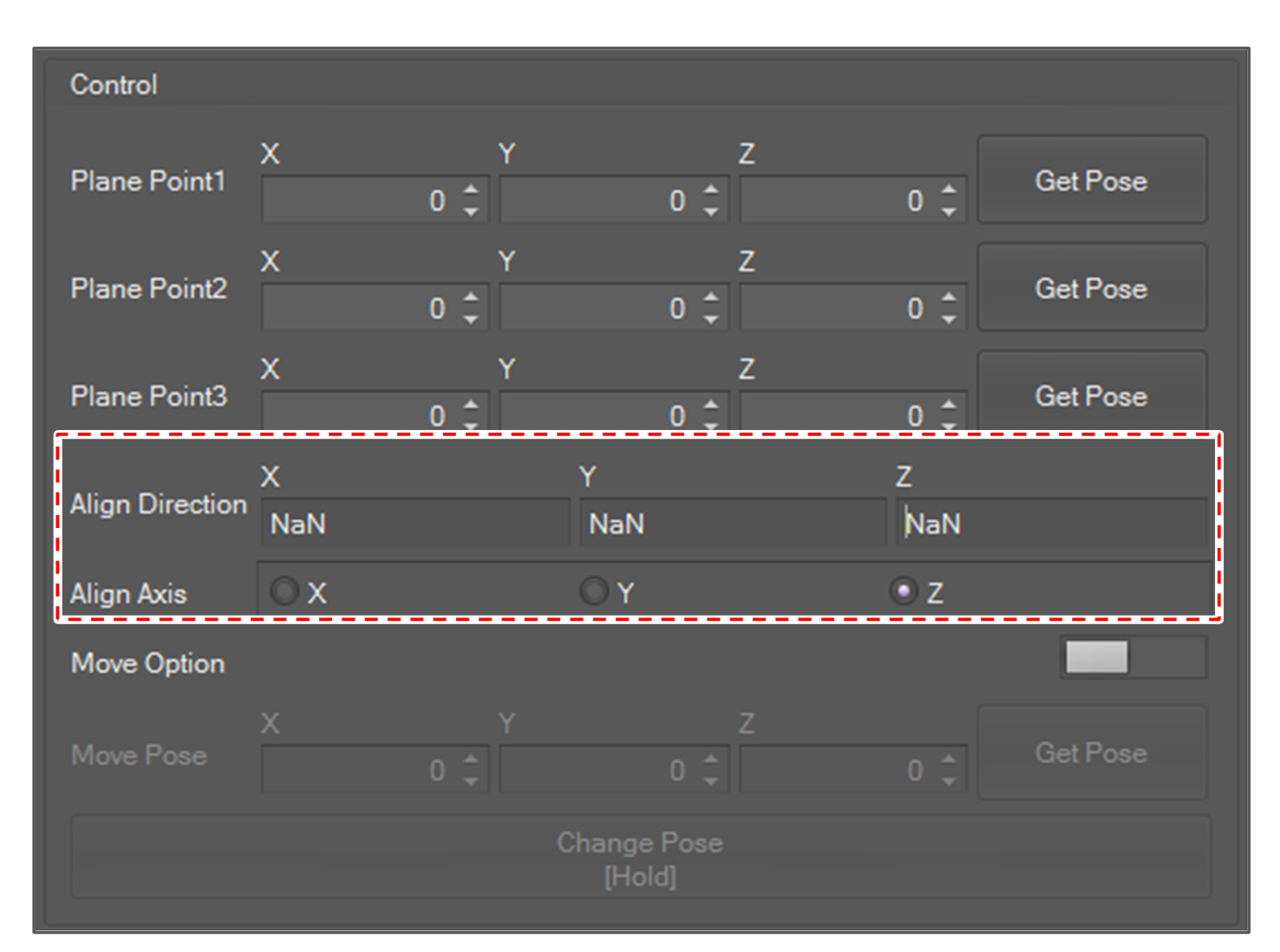

Select Alignment axis

Select the tool axis to align. If you select Z Axis, the tool’s z axis will align to the alignment direction. If you select X Axis, the tool’s x axis will align to the alignment direction.

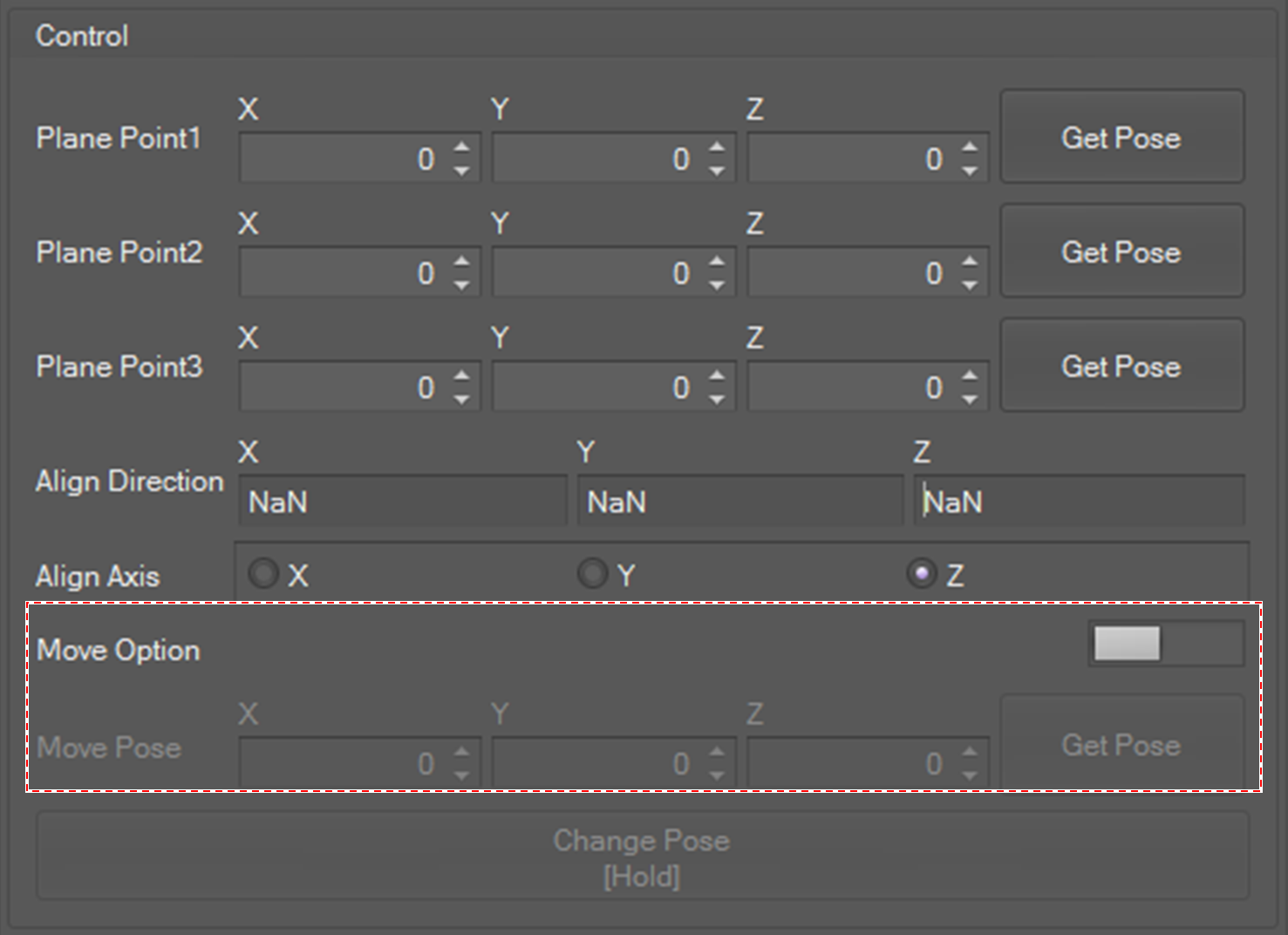

Select Target Coordinate Movement (Optional)

If the Target Coordinate Movement switch is on, the robot will move to the target position while changing the orientation of the tool. If the Target Coordinate Movement switch is off, the robot will change the orientation of the tool without changing the position.

Start Motion

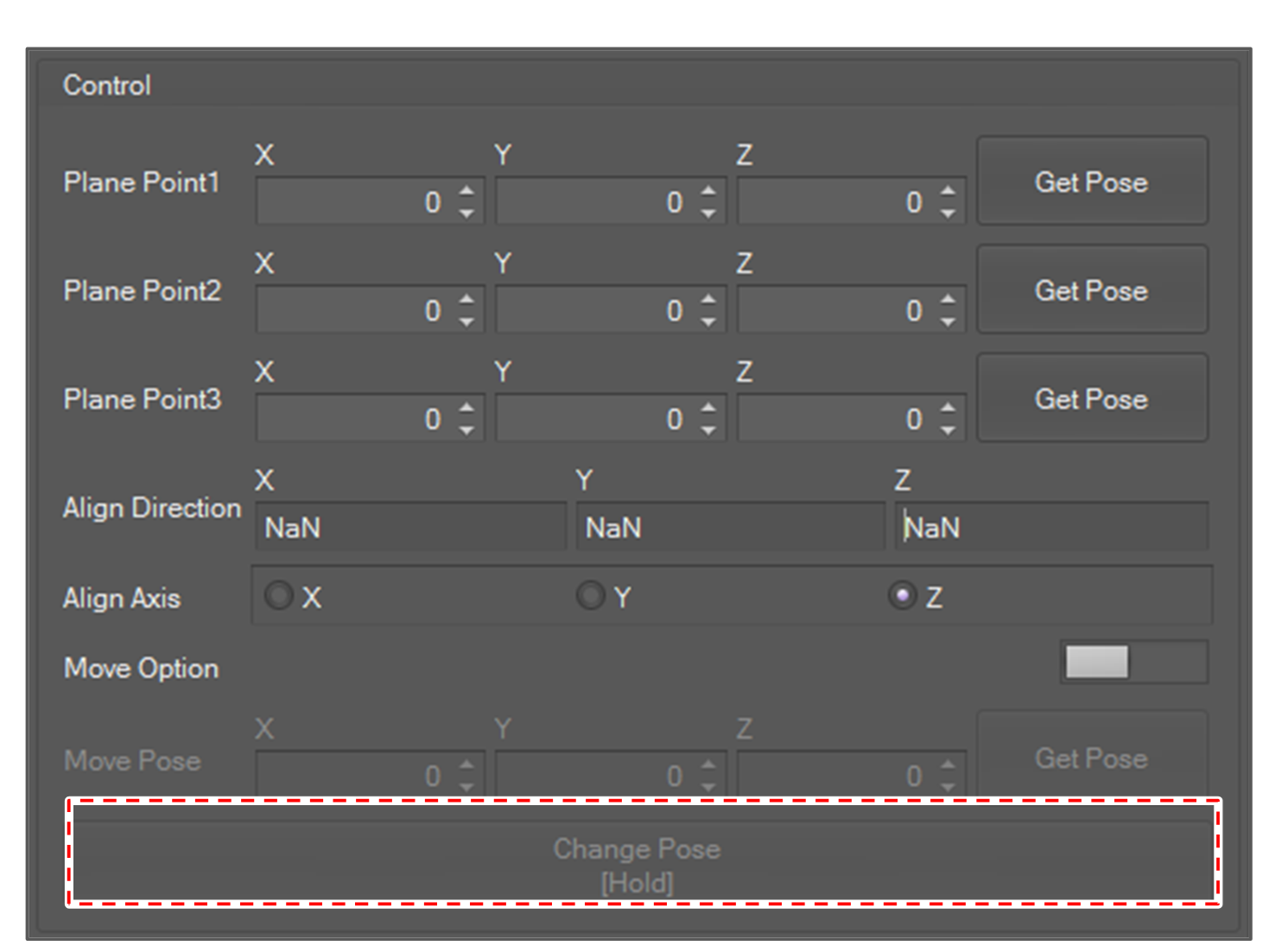

If you click and hold the Move To Align button, the robot will change its tool direction until you release the button.
