Power-up controller

MANDATORY EASY 3 MIN

The power switch of the controller is located at the bottom of the controller.

1. Press the Power button on the bottom of the controller. The power for systems such as the robot, controller, teach pendant and smart pendant is turned on.

 2. Press and hold the power button (Fig. 2) until the teach pendant screen powers up. The teach pendant LED (Fig. 1) and flange LED (Fig. 3) will blink red until the robot controller connects to the network.

• For more information about equipment other than the teach pendant, refer to Power on/off the system .

Note

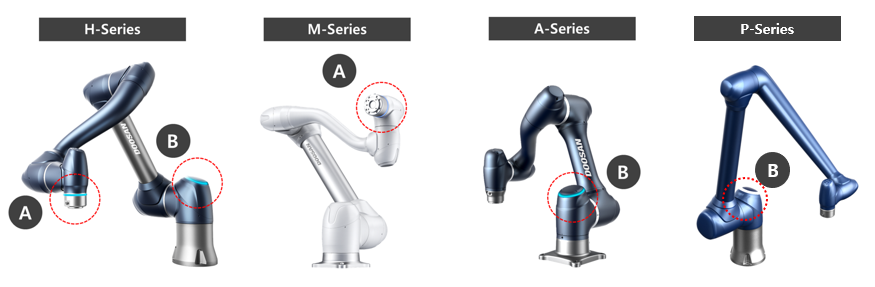

LED positions of each Doosan Robotics robot series are as follows:

• A: Flange LED
• B: Axis 1 LED
