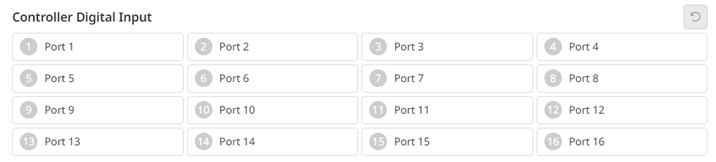

Controller Digital Input
- Check the port number of the device connected to the controller.
- The following is displayed depending on the digital input status of the corresponding number.
- If the digital signal is a high signal, the icon is displayed in light green.
- If the digital signal is a low signal, the icon is displayed in gray.
Note
- The same is true when the digital input is set as a safety input, the icon is displayed in blue when the digital signal is high, and gray when it is low.
