Names and Functions
Teach pendant

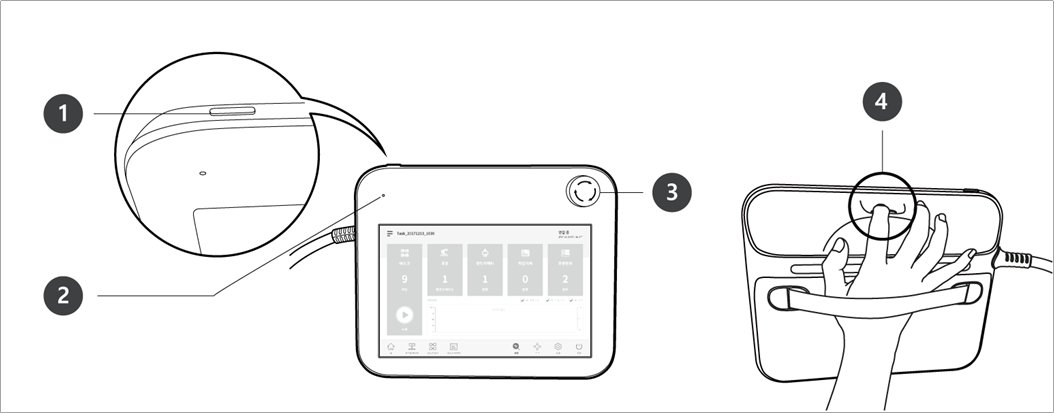

No. | Item | Description |
|---|---|---|
1 | Power button | Used to turn ON/OFF the main power of the teach pendant. For detailed product features, please refer System Power On/Off |
2 | Power LED | Turns ON when power is supplied. |
3 | Emergency stop button | Press the button to stop robot operation in case of an emergency. |
4 | Hand guiding button | Press and hold the button to move the robot freely into a desired pose. |
Note
- If you need to protect and hold the Teach Pendant during work, you can use it more safely and easily with a soft cover supplied by Doosan Robotics.
