Turn system power on

MANDATORY EASY 1 MIN

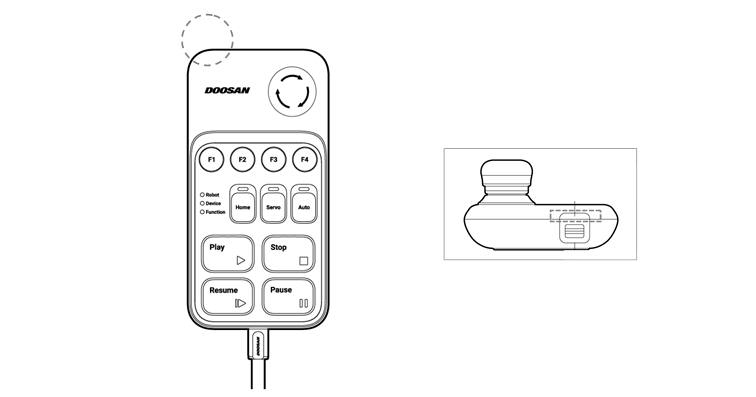

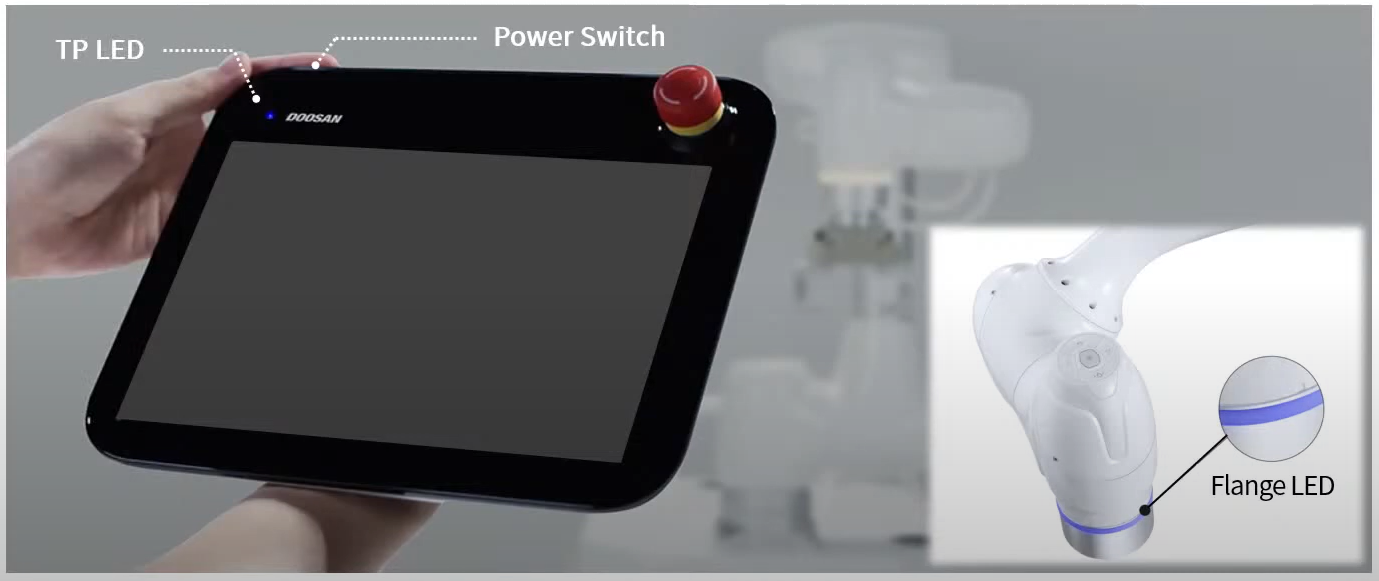

Turn the system power on again. Press and hold the power button until the teach pendant screen powers up.

Only when E-STOP Box is used

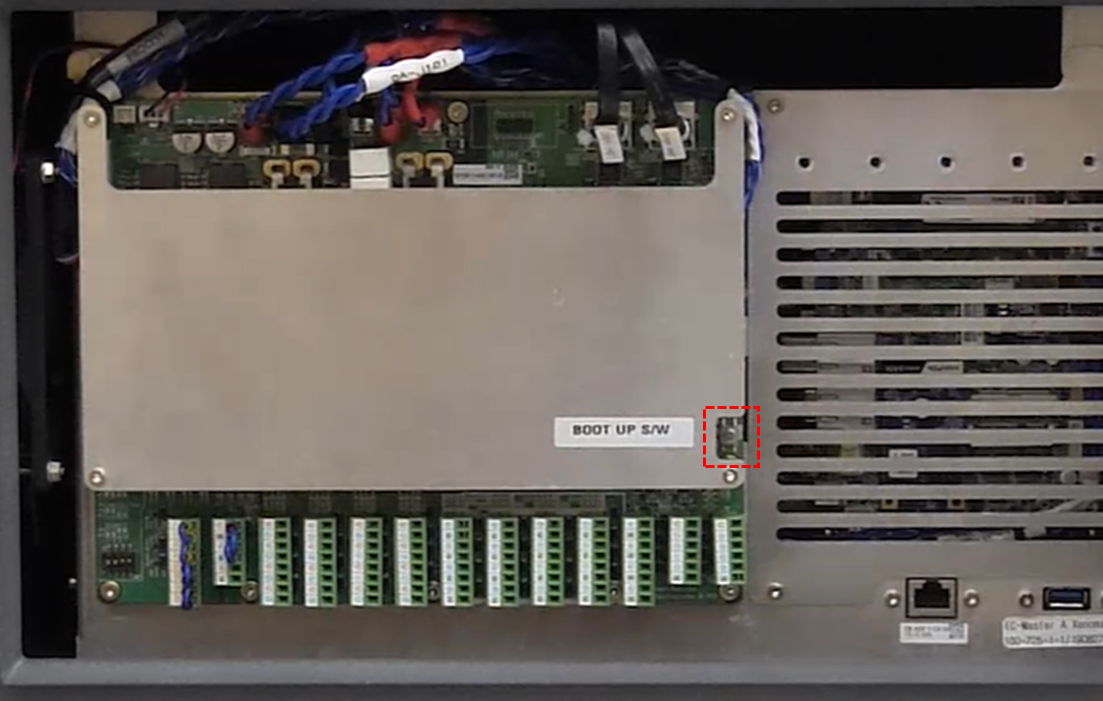

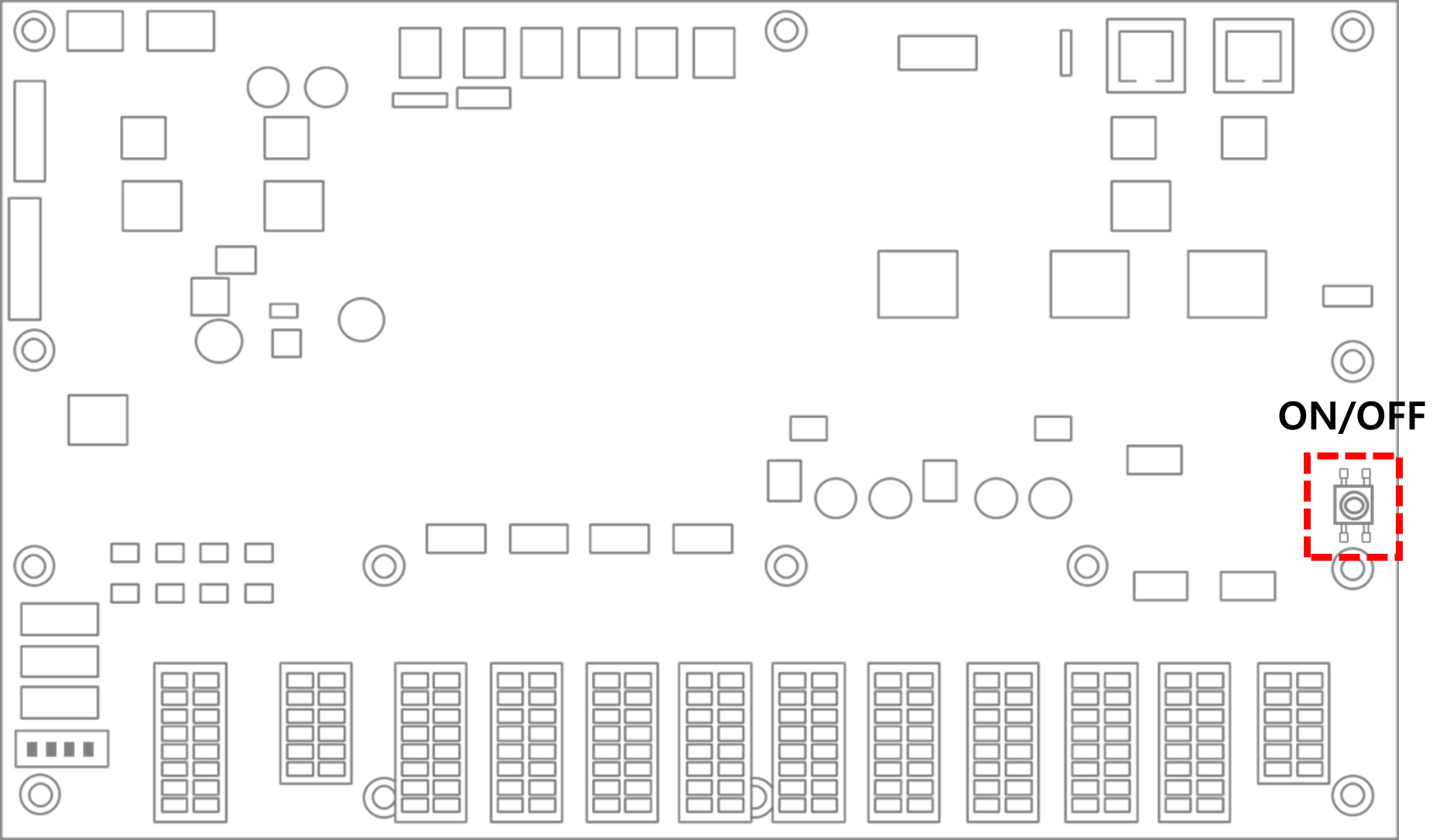

Open the controller door, and press and hold the power button located at the bottom right of the Safety board.

When smart pendant (optional) is used

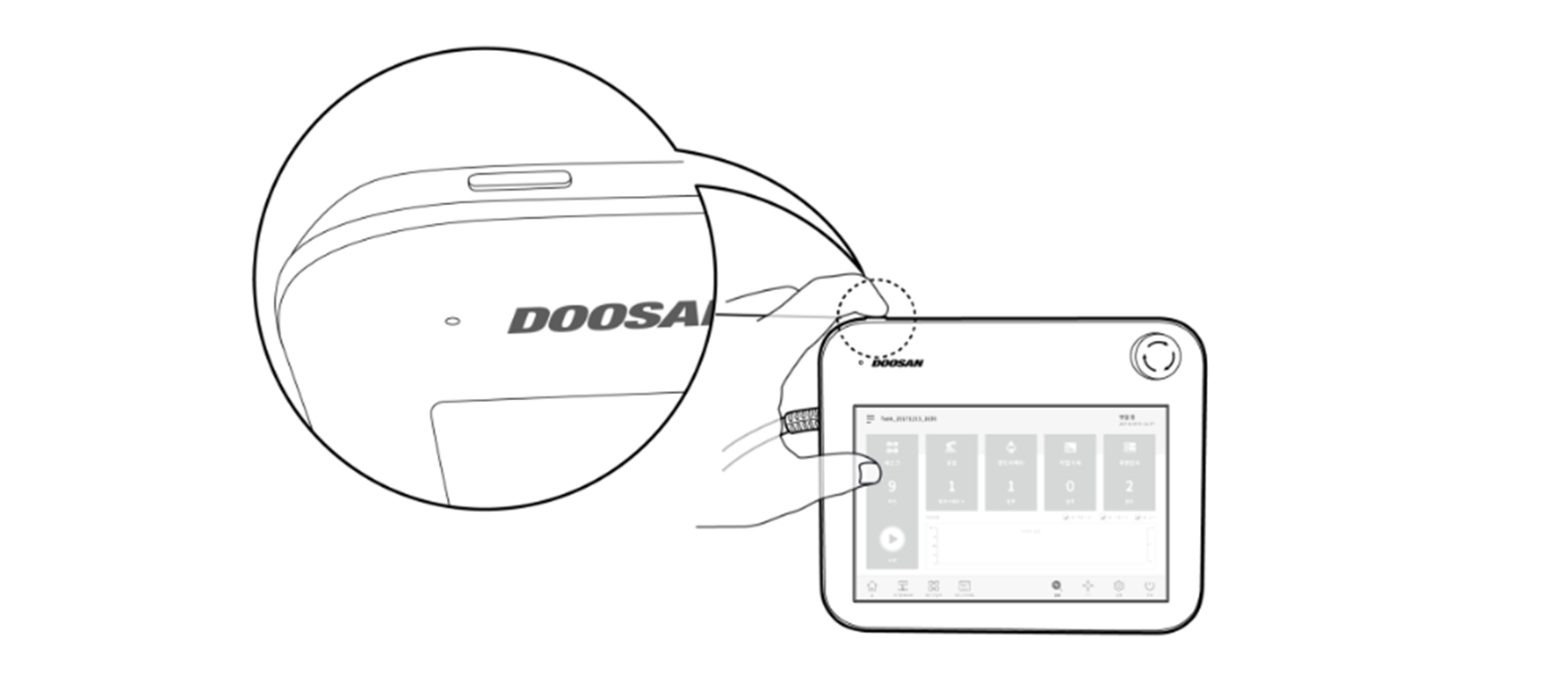

Press and hold the power button on the upper left of the smart pendant.
