Turn system power off

MANDATORY EASY 1 MIN

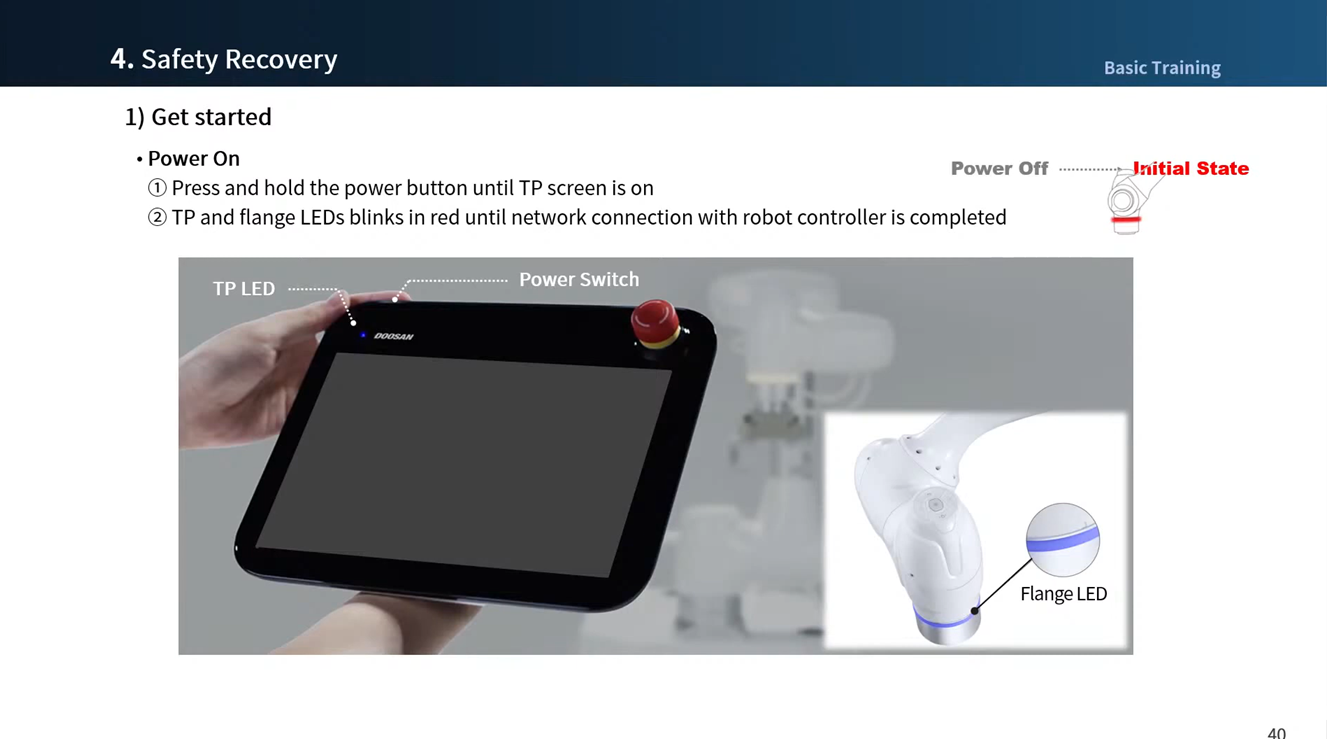

Press the shutdown button on the teach pendant or press and hold the power button on the upper left of the teach pendant for 2 seconds to turn off the system.

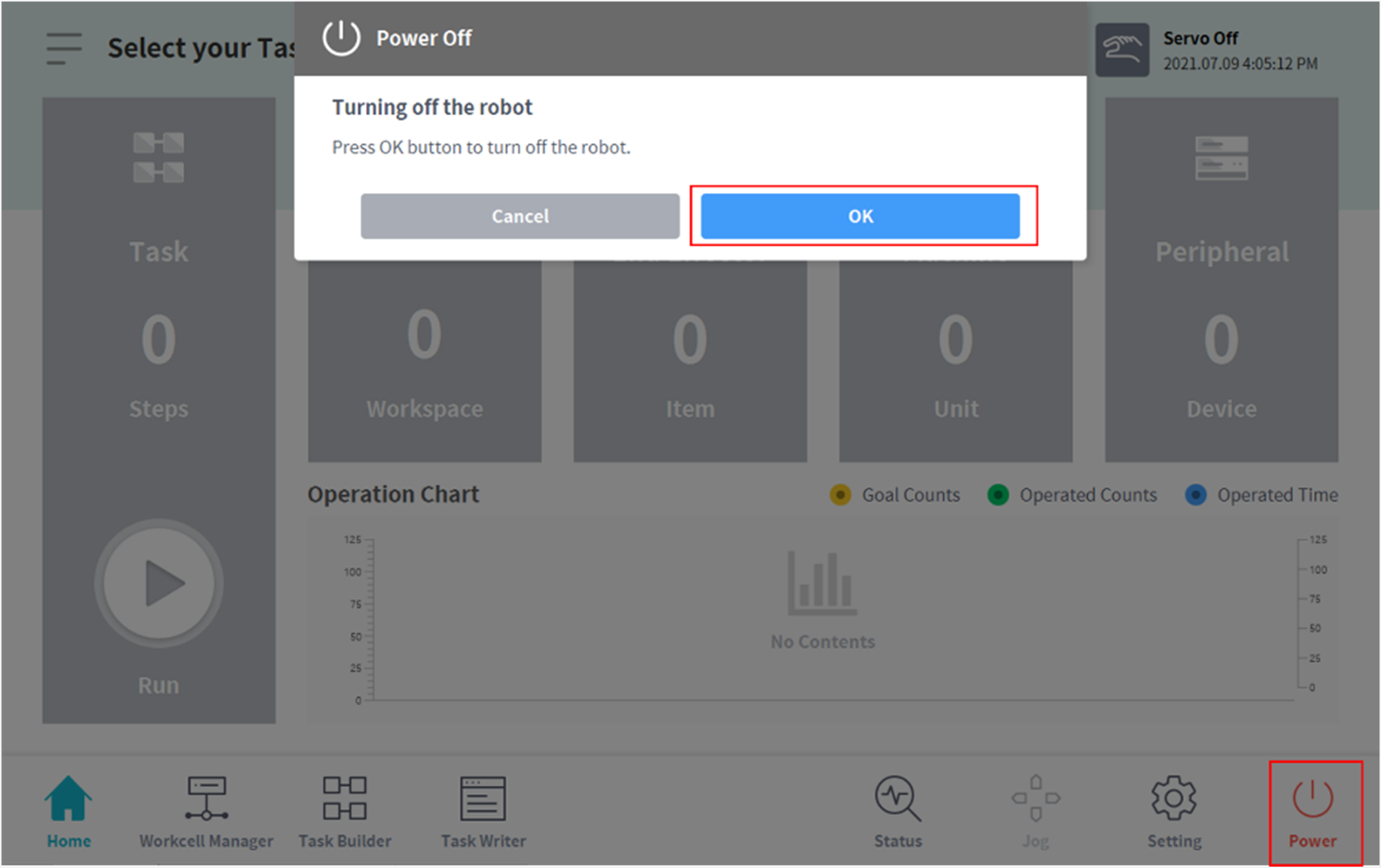

1. The shutdown popup is displayed on the screen.
2. Press the OK button on the shutdown popup to properly shutdown the system.

Caution

• Press and hold the power button for more than 4 seconds to force system shutdown.
• Forced shutdown may cause robot and controller failure.

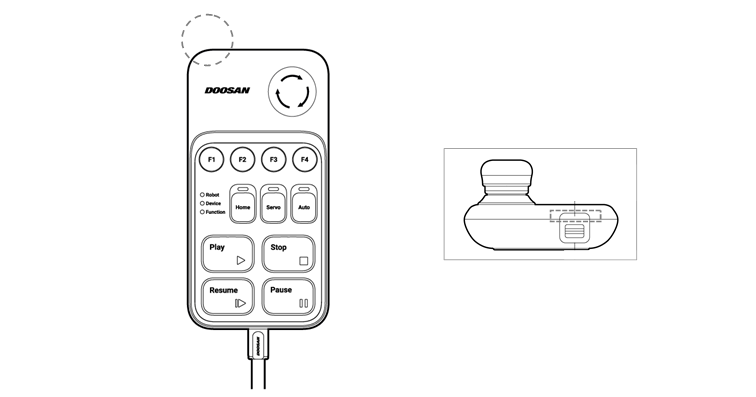

Only when E-STOP Box is used

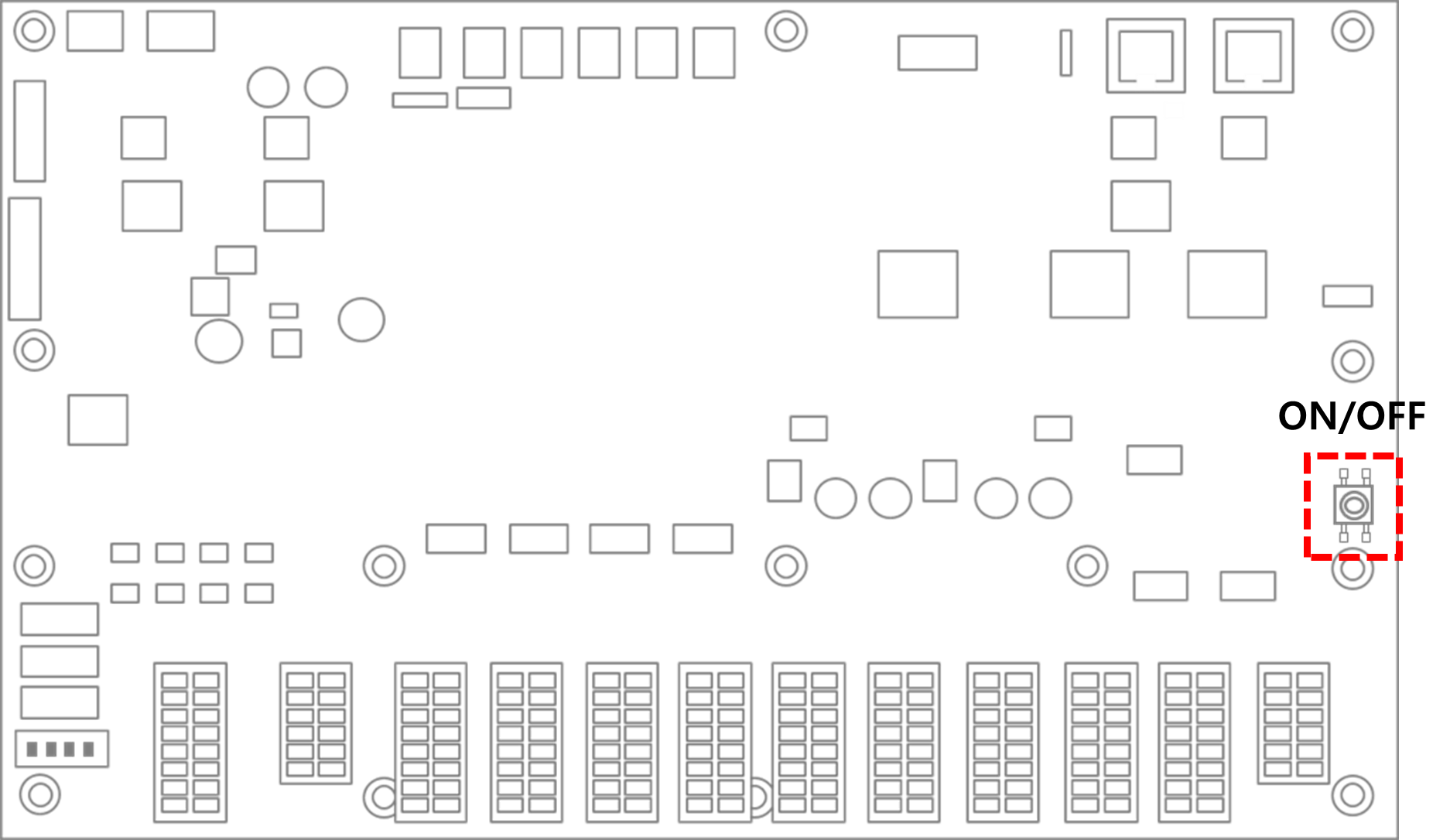

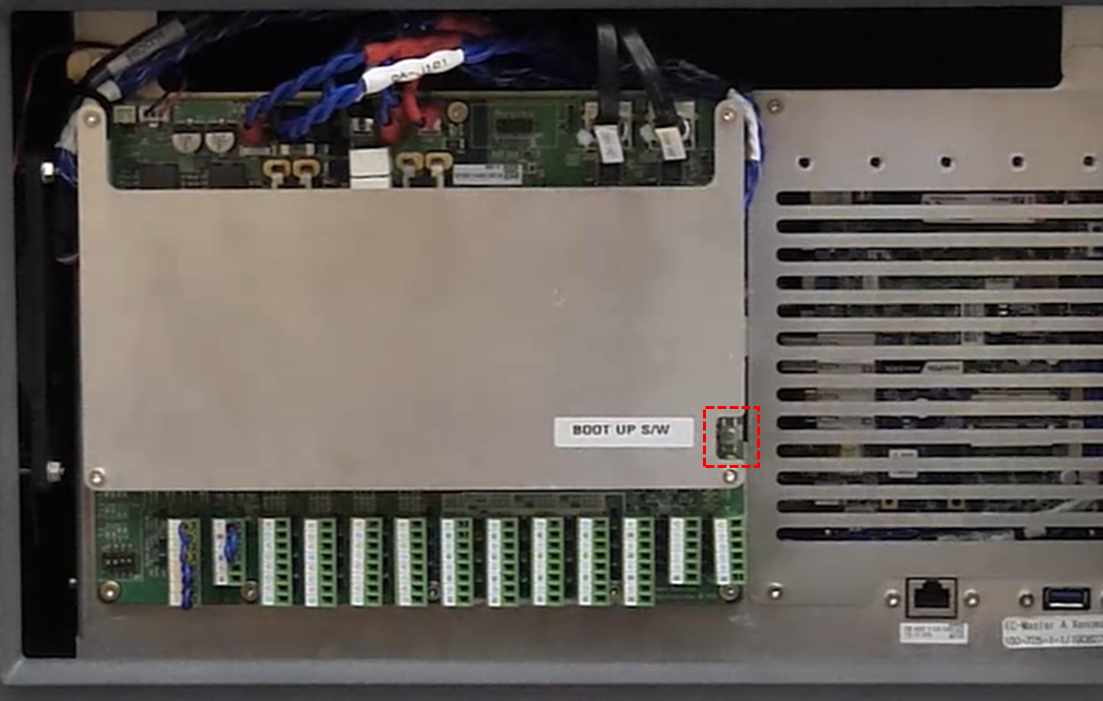

Open the controller door, and press and hold the power button located at the bottom right of the Safety board.

• To turn off the power, press and hold the button.

When smart pendant (optional) is used

Press and hold the power button on the upper left of the smart pendant.

• To turn off the power, press and hold the button.
