Test controller and flange I/O

MANDATORY NORMAL 10 MIN

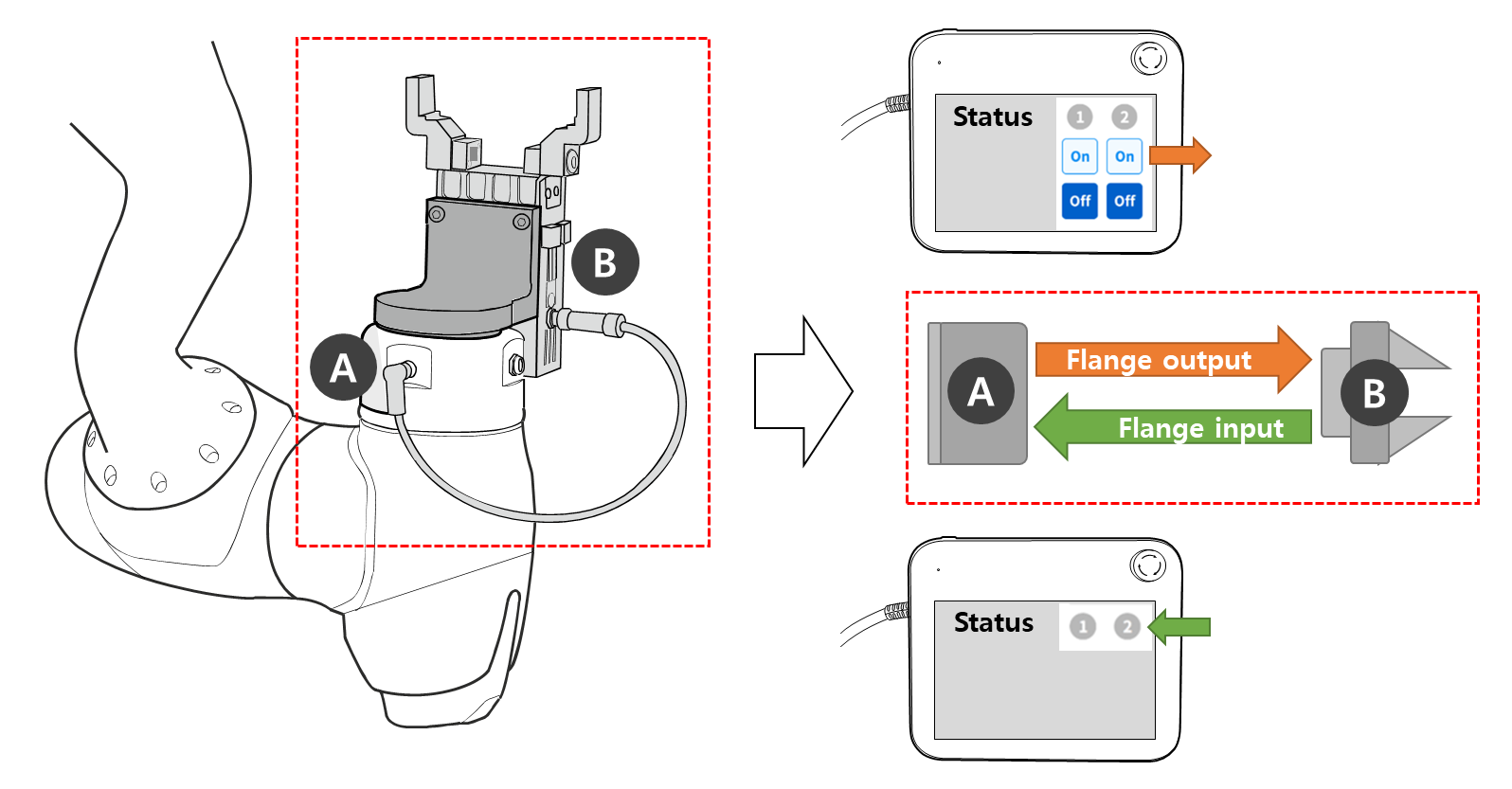

The teach pendant features a function capable of testing the operation of the tool connected to the flange I/O.

The following tests can be performed through Status > I/O Overview or I/O Test of the teach pendant screen. For more information, refer to each item.

• Controller/Flange Digital Input Check
• Controller Analog Input Check
• Controller/Flange Digital Output Setting
• Controller Analog Output Setting
