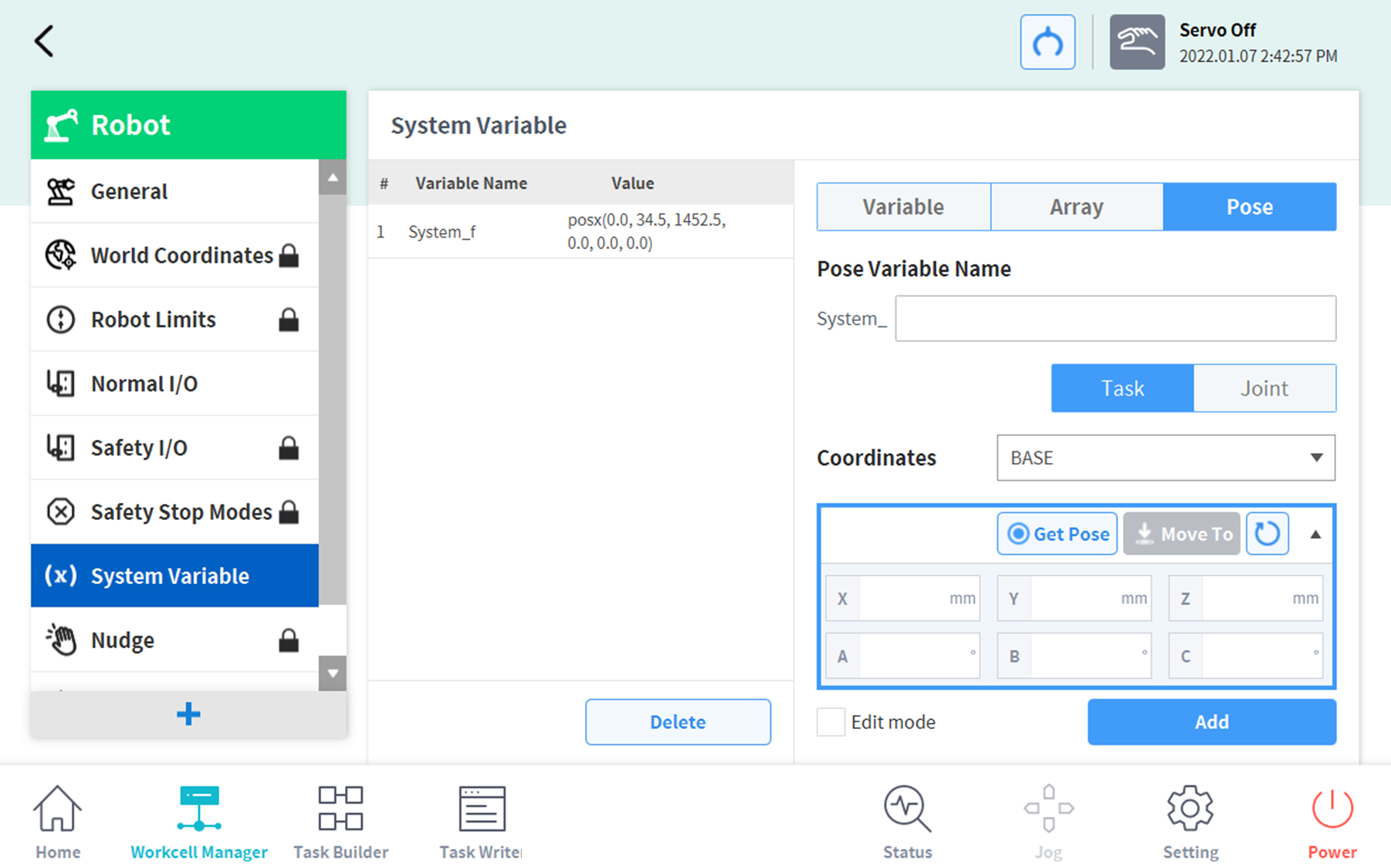

System Variable Setting

It is a variable with variable, sequence and pose values saved in preset names/values.

• System variable name starts with the prefix 'System_'.
• Other than the Workcell Manager, system variables can be edited from the Task Builder and Task Writer screens.
• Preset user coordinates can be assigned to poses.

The following is the method of creating/editing/deleting system variables.

• Create: Enter the variable name and value and click the Add button to create a system variable with the entered values.
• Edit: Click the edit mode checkbox to select system variables, edit the variable name and values, and click the Apply button to edit system variables.
• Delete: Select the system variables to delete from the system variable list and click the Delete button to delete system variables.

Caution

• When restoring teach pendant data, data restoration will stop if the number of variables exceeds 50, the maximum number of additional items.
