Product Introduction (CS-04)

Names and Functions

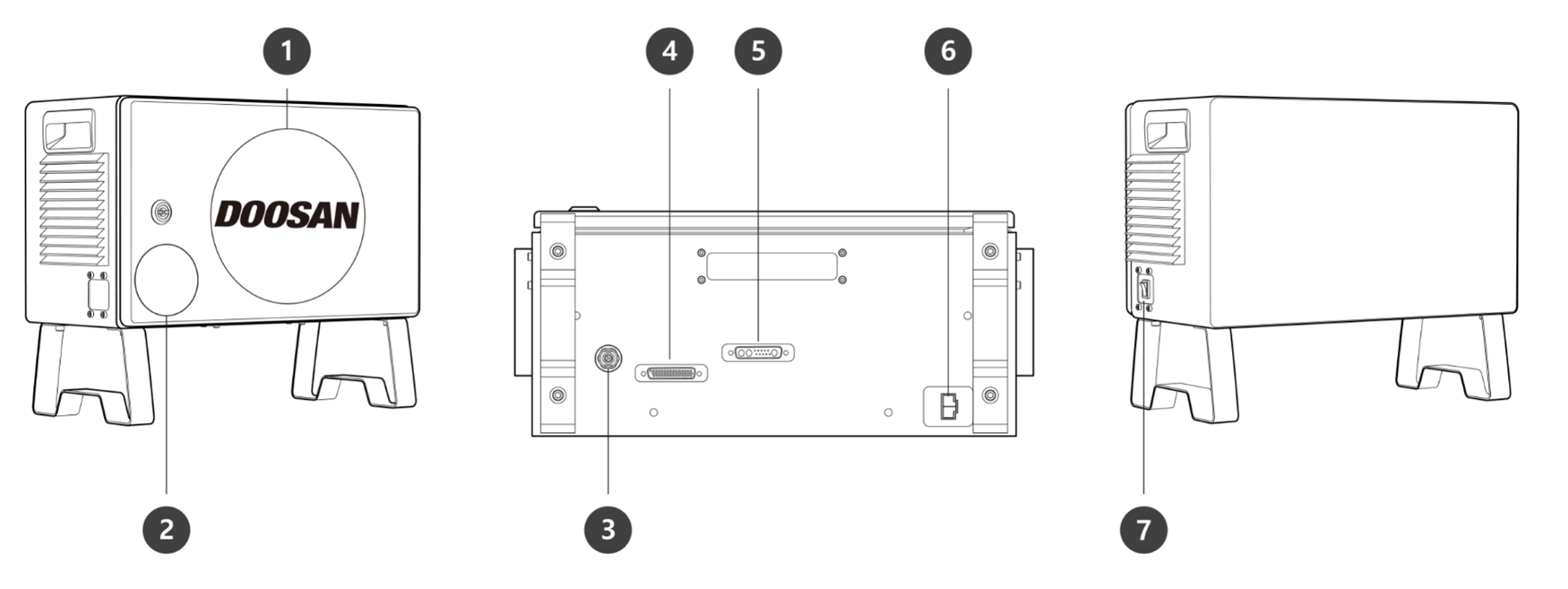

DC Controller  (CS-04)

No.

Item

Description

1

I/O connection terminal (internal)

Connecting with the controllers of other robots or surrounding equipment is not possible.

2

Emergency Stop Button

Setting switch

The switch must be set according to the actual composition in order to use the Smart Pendant or the emergency stop button.

3

Emergency stop button and Smart Pendant connection terminal

This connects the emergency stop button or Smart Pendant cable to the controller.

4

Teach Pendant cable connection terminal

This connects the Teach Pendant cable to the controller.

5

Manipulator cable connection terminal

This connects the cable of the manipulator to thecontroller.

6

Power connection terminal

This connects power to the controller.

7

Power switch

This turns the main power to the controller ON/OFF.

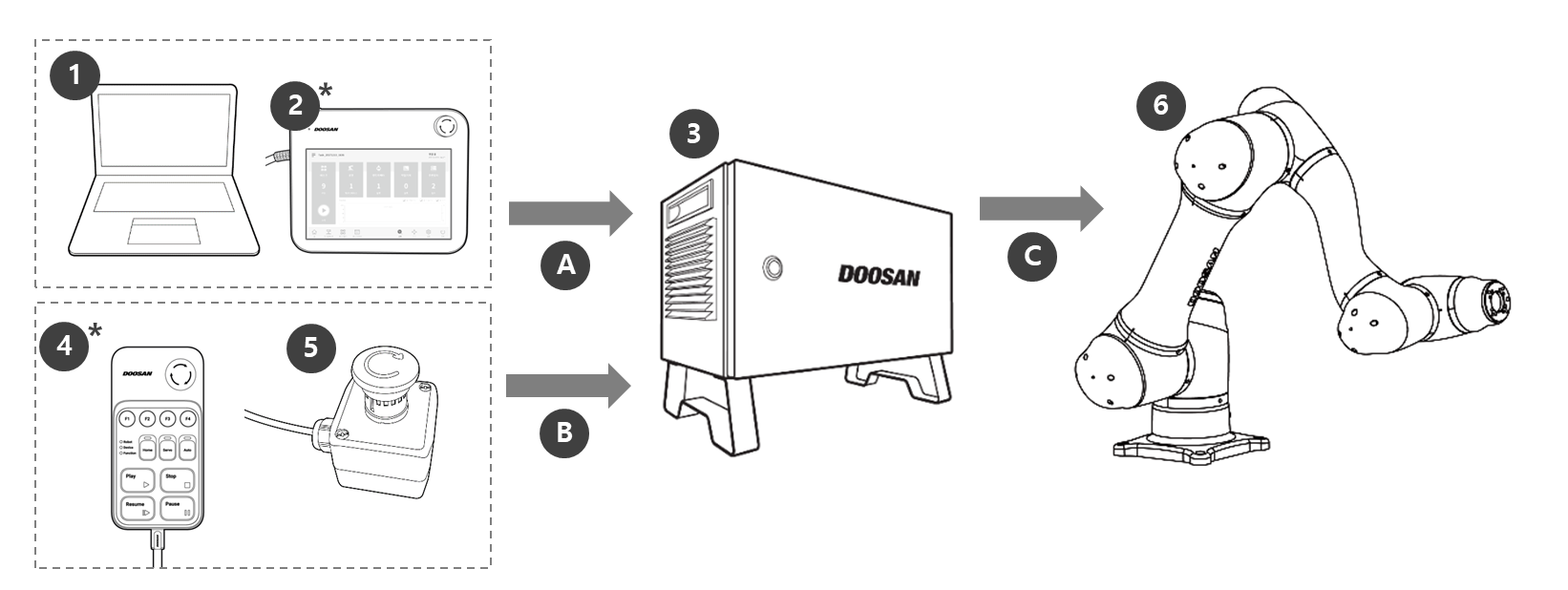

System Configuration

No.ItemDescription
1Laptop

After installing the DART Platform, a work environment identical to the teach pendant can be set up

The laptop is not included in the package and is required when installing and using the DART Platform.

2Teach pendant**

It is a device that manages the overall system, and it is capable of teaching the robot specific poses and setting the manipulator and items related to the installation of the controller and manipulator.
(purchased separately as an option)

3Controller

It controls the robot movement according to the pose or movement set by the teach pendant. It features various I/O ports that allow the connection and use of various equipment and devices.

4Smart Pendant**

The robot can be easily controlled using a pendant capable of performing simple functions such as turning on the servo ON/OFF or executing/closing preset programs.
(purchased separately as an option)

5Emergency Stop ButtonIf a laptop is used as part of the system, it acts as the emergency stop button of the teach pendant.
6ManipulatorIt is an industrial collaborative robot that can perform transport or assembly tasks with various tools
ACommand/
Monitoring

BCommand
CPower Supply/
Network

  • Items are indicated as standard items (*) and optional items (**, sold separately)

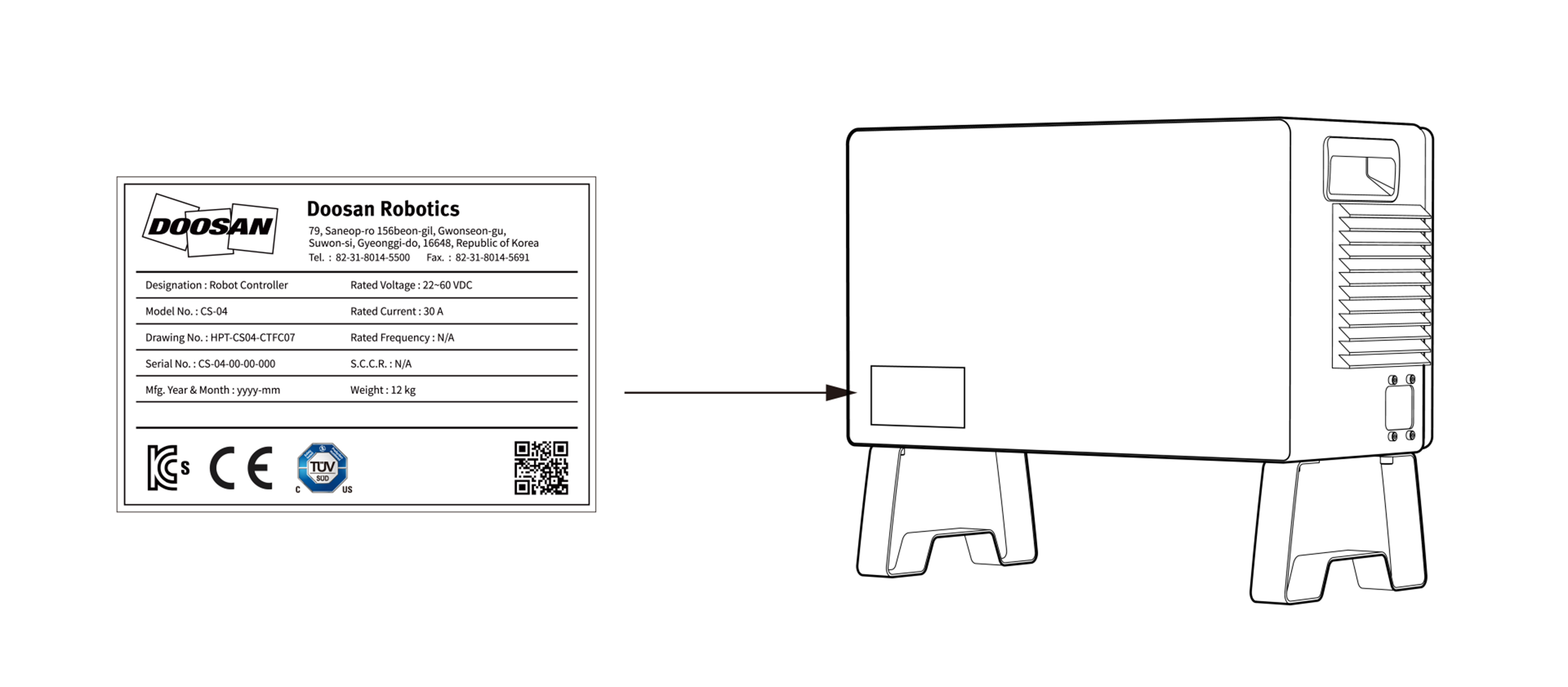

Nameplate and Label
