Install tool

MANDATORY EASY 5 MIN

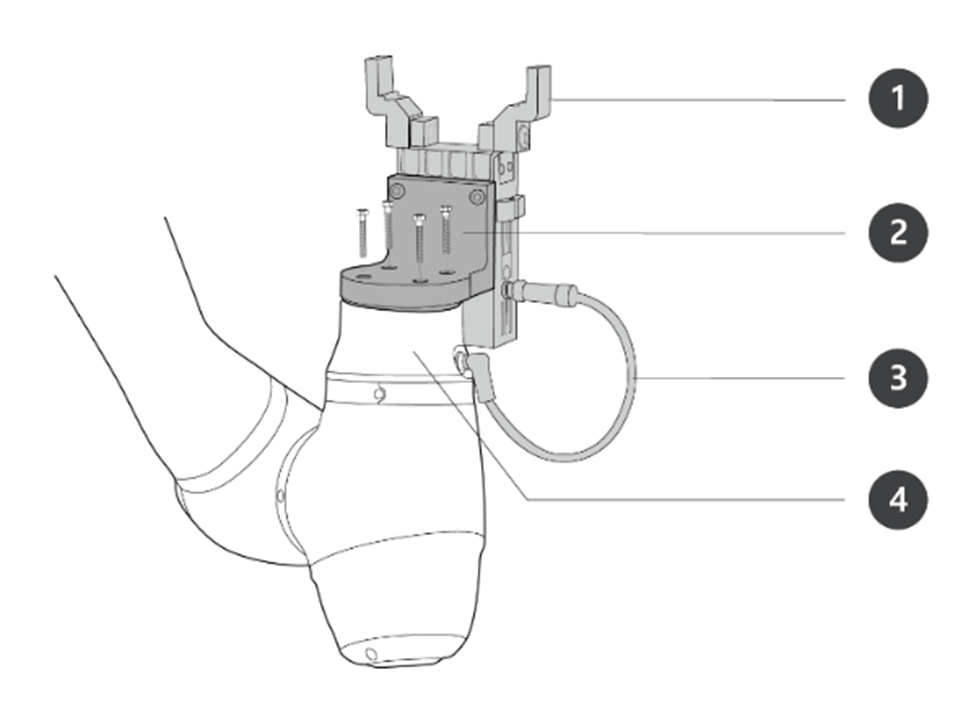

Use four M6 bolts to secure the tool on the tool flange.

  • It is recommended to use tightening torque of 9 Nm to tighten the bolts.
  • Use a Φ6 place marker pin to accurately install the robot in a fixed location.


Note

  • For more information about the tool flange, refer to Connecting the Robot and Tool.
  • Methods of securing the tool may vary according to the tool. For more information about tool installation, refer to the manual provided by the tool manufacturer.

No.

Item

1

Tool

2

Bracket

3

Cable

4

Tool Flange
