Execute Task

It is possible to test the task being created by executing it. To execute a task, follow these steps:

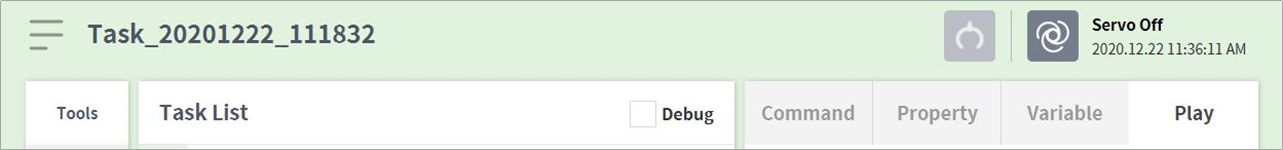

  1. Select the Play tab.

  2. Tap the Real Mode (
    ) button.
  3. Drag the speed slider to set the robot speed.
  4. Press
    to execute the task.
    • Pause (
      ): Pauses the task currently being executed.
    • Stop (
      ): Stops the task currently being executed.


Note

  • If Real mode is off, execution is made only in virtual mode where the robot is only operated in the simulator.
  • When Real mode is turned on, a status display showing the I/O status appears.
  • When executing a task program in virtual mode, it is only executed once regardless of the setting, and diverging through I/O signal within the task does not execute properly.
  • Tool center position and tool weight information on the play information screen are only displayed properly when the Set TCP command is executed or the tool center position and weight of the jog are set.
  • Commands that had issues occur during program execution are highlighted with orange.
