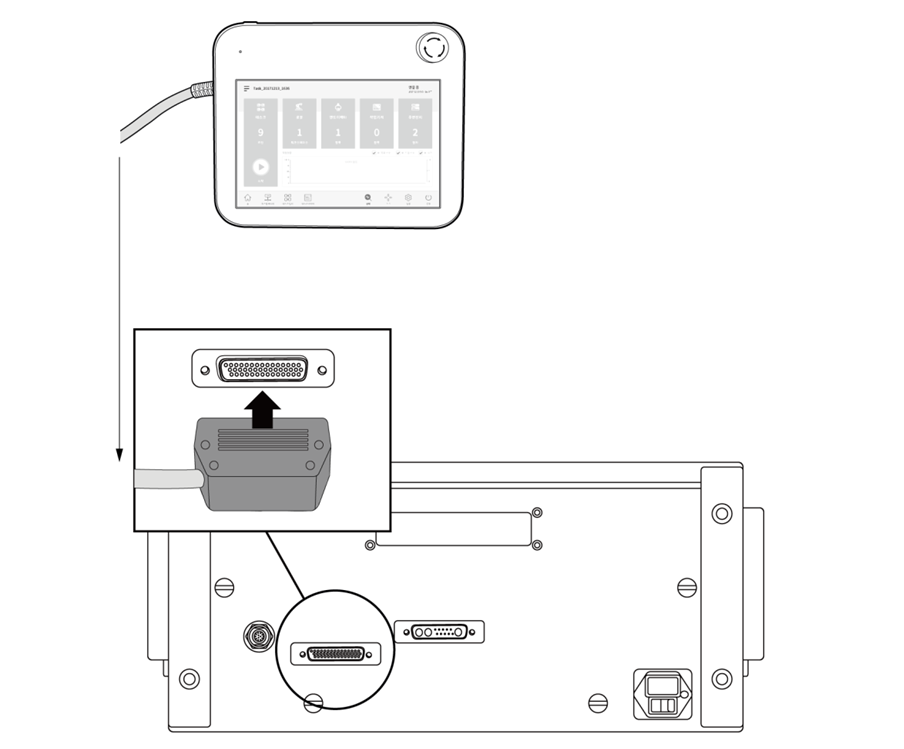

Connecting the Controller and Teach Pendant


Caution

  • Make sure that the pins of the cable end are not damaged or bent before connecting the cable.
  • If the teach pendant is used by hanging on a wall or on the controller, be careful not to trip on the connecting cables.
  • Be careful not to allow the controller, teach pendant and cable come in contact with water.
  • Do not install the controller and teach pendant a in a dusty or wet environment.
  • The controller and teach pendant must not be exposed to a dusty environment that exceeds IP20 ratings. Be especially careful in environments with conductive dust.

Note

  • When configuring the system, it is recommended that a noise reducer be installed to prevent noise effects and malfunction of the system.

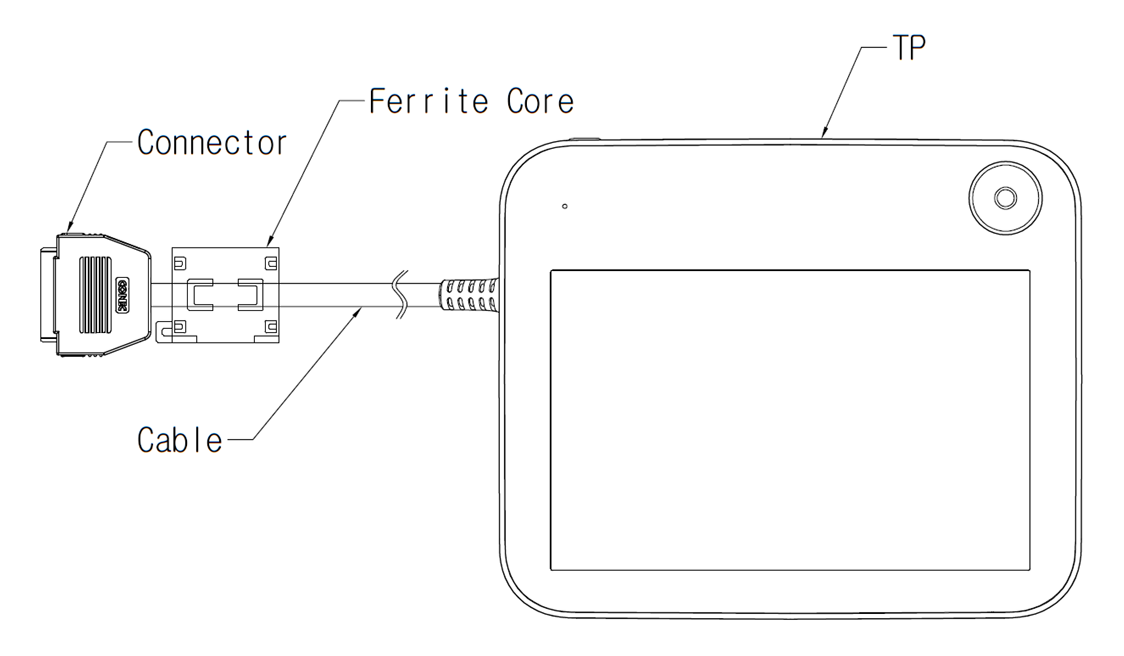

  • If the teach pendant is influenced by noise generated by electromagnetic waves, it is recommended to install a ferrite core on the Teach Pendant connection side to ensure normal operation. The installation location is as follows:
