Compliance Control and Contact Check

With the Compliance Control and Contact Sensing functions, which is the unique force control technology of Doosan Robotics, it is possible to easily perform teaching without repeated operation for accurate point designation since it allows position deviation within a tolerance range between the workpiece and surrounding items during robot operation.

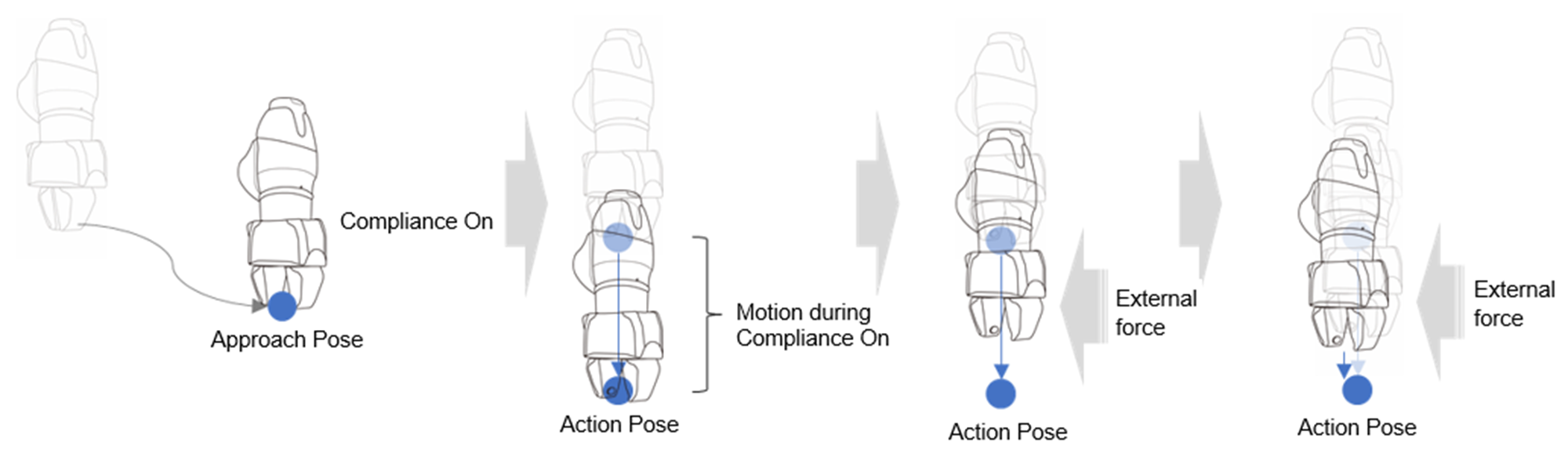

Compliance Control: If force is applied during Approach à, Action à and Retract, it allows deviation from the set position with some level of buffering, like a spring.

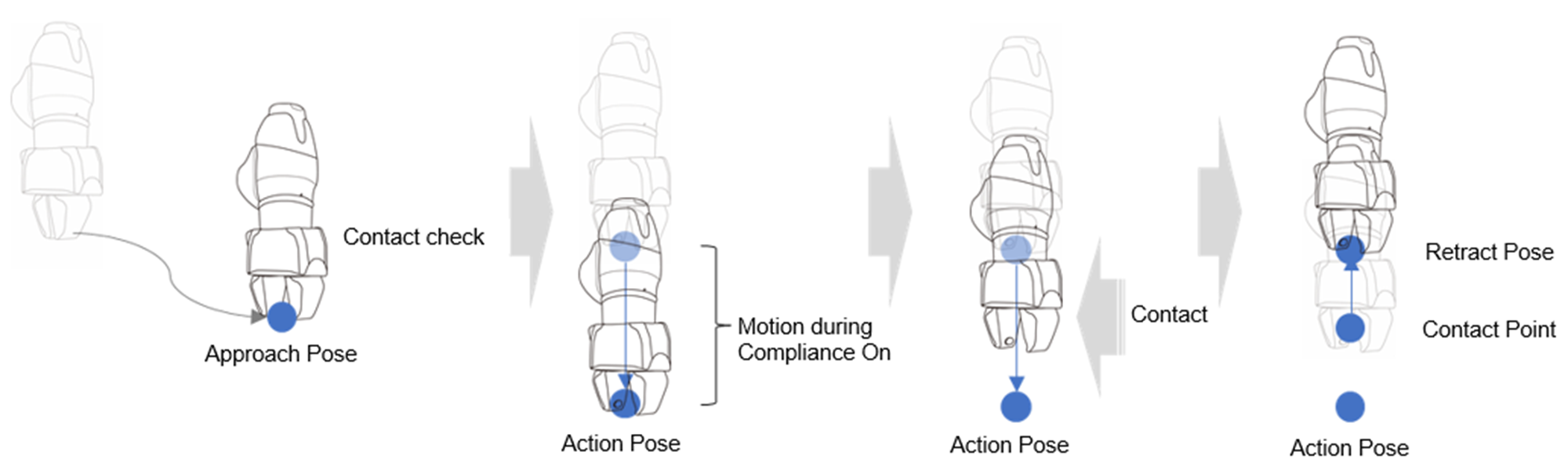

Contact Check: Based on the Contact Force and Contact Determination Range values entered, the function detects contact with the target, stops at a corresponding position and activates the gripper to grab the target.

• This function must be used with Compliance Control Function. If Force is entered and Compliance Control is not enabled, an error occurs.
• Contact is a function that detects contact with an external force, so the sensitivity of Collision Detection must be set at low levels or Collision Detection must be disabled.
• Be careful when using this function, as excessive force can be generated when contacting the external environment if the Compliance Control option stiffness (i.e., Z-direction) value is too large or the work speed is too high. (It is necessary to make adjustments according to the situation by lowering the stiffness value if the work speed is too high or by increasing the stiffness if work speed is too low.)

Note

• If FTS is not installed when using the A-Series, the Contact Detection function cannot be used. In this case, the use of compliance control is limited, and stiffness can be modified only in the translation (X, Y, Z) direction.
