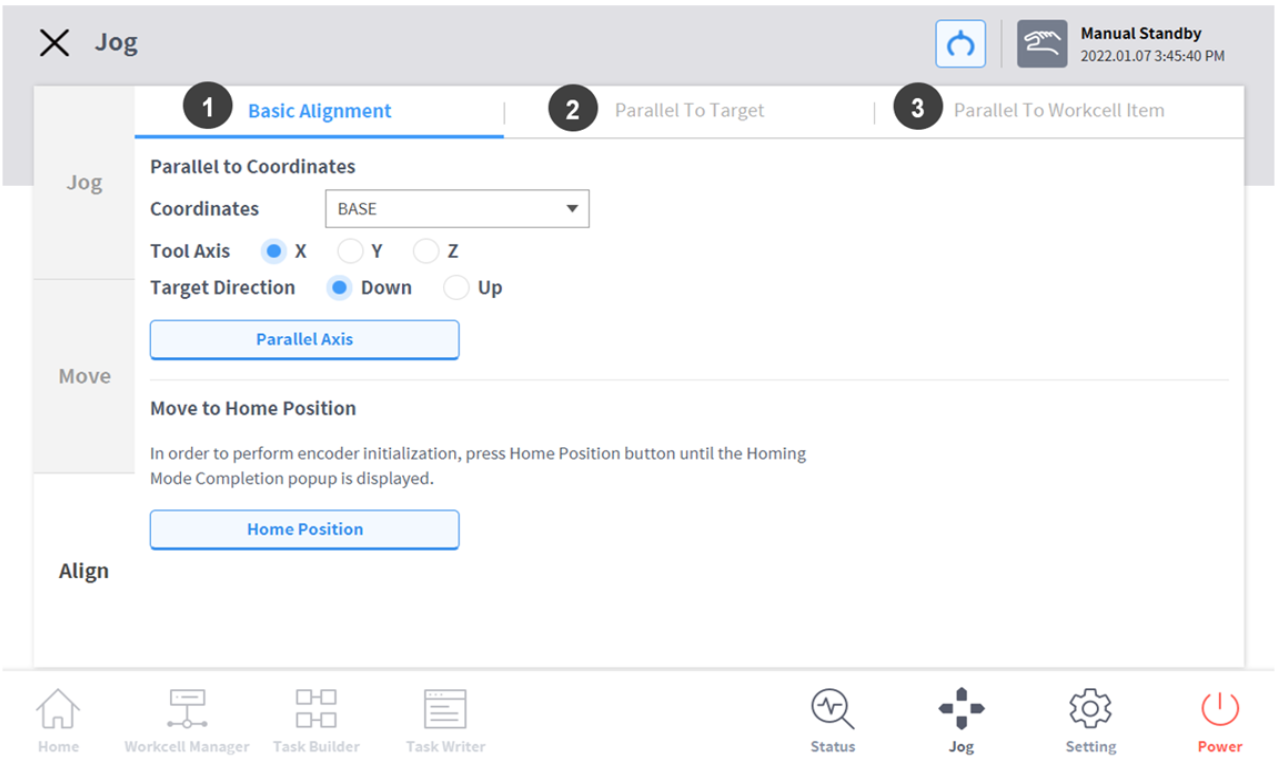

Align Screen

The robot's alignment reference can be set on the Align screen.

No.

Item

Description

1

Basic Alignment

It aligns the TCP based on the Base/World axis and target direction.

2

Align with Target

Aligns the TCP with the target.

3

Align with Workcell Item

Aligns the TCP with Workcell item.
