Flange I/O Setting

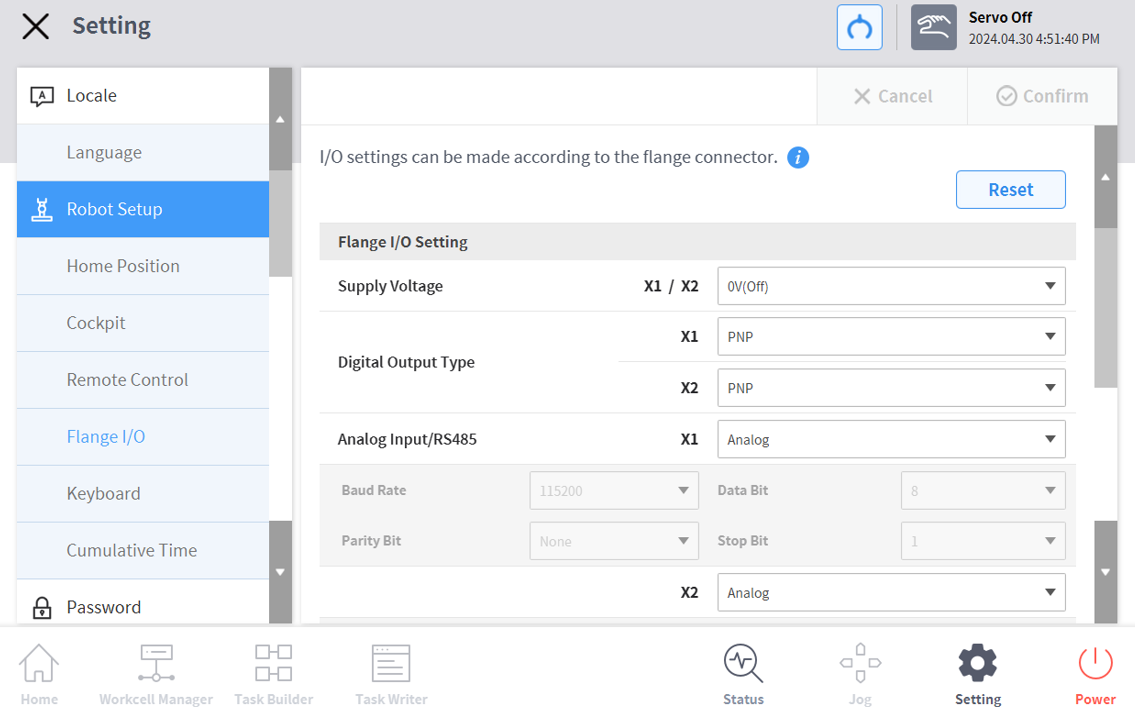

1. In the Settings menu area, select the Flange I/O menu in Robot Settings (only visible when a new flange is connected)

   • The currently set information appears in the Settings Management window.

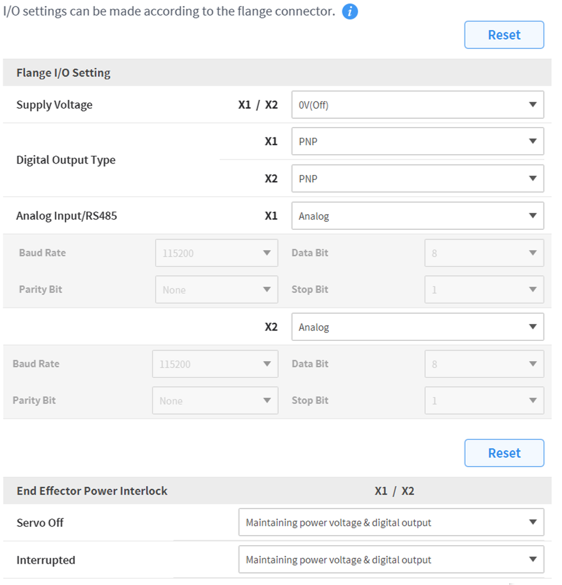

2. Change options in flange I/O settings (X1/X2)

   • Supply Voltage

     • 0V/12V/24V power supply function
   • Digital output type

     • PNP / NPN
   • Analog Input/RS485
     • Use X1/X2 ports as analog input or RS485
     • When selecting RS485, please set Baud Rate, Data Bit, Parity Bit, and Stop Bit.
3. Change options for End Effector Power Interlock

   • Servo Off
     • Maintaining power voltage & digital output
     • Switch the power voltage & digital output to 0V and revert to the last state when Servo On.
   • Interrupted

     • Maintaining power voltage & digital output
     • Switch the power voltage & digital output to 0V and revert to the last state when reset.
4. When finished, press the OK button.

   • Your environment setup to use flange I/O is now complete.

Note

• A series only displays X1.

×
