Controller/Flange Digital Output Setting

Old Flange

New Flange

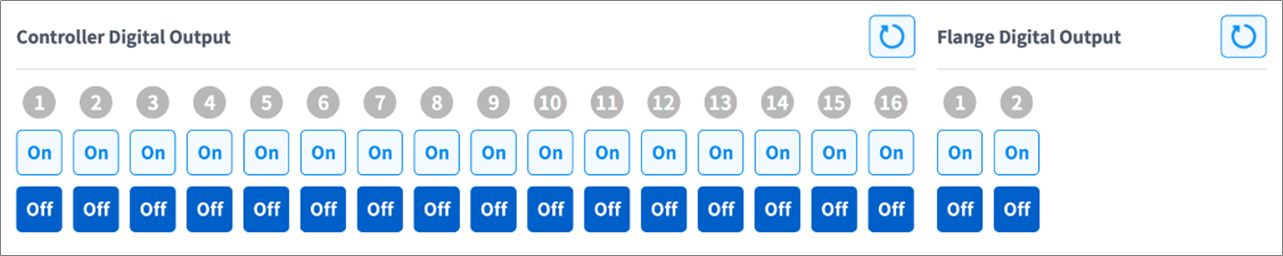

1. Check the port number of the device connected to the controller or flange.

2. Press the On/Off icon corresponding to the port number to activate or deactivate digital output.

   • The icon changes to light green and the corresponding port is enabled when the On icon is pressed.

   • The icon changes to light green and the corresponding port is disabled when the Off icon is pressed.

3. Only two flange IOs are displayed in the A Series's flange digital output.
