Connect cable to the controller
MANDATORY EASY 1 MIN

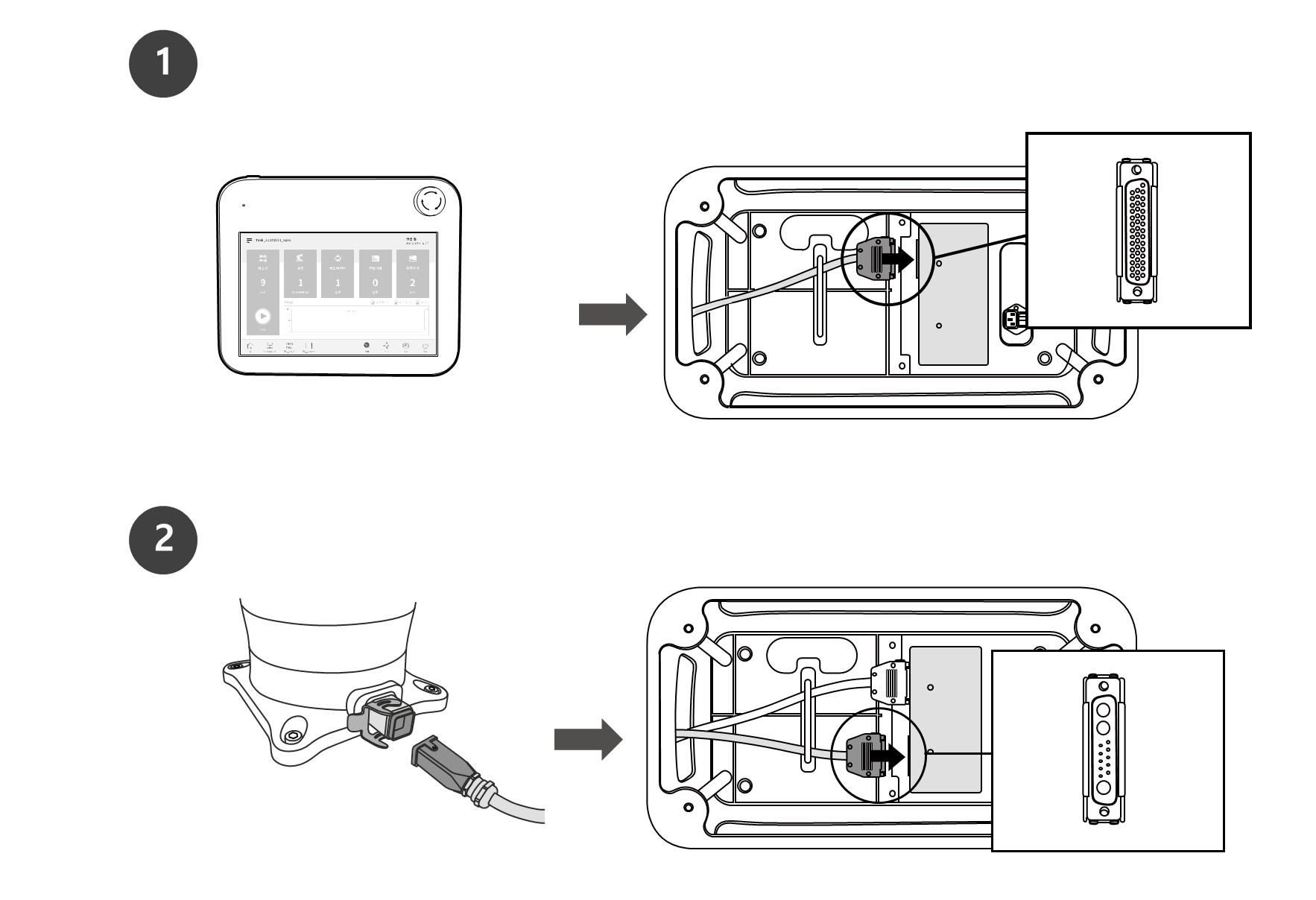

Connect the teach pendant and robot cable to the controller.
Push the teach pendant cable into the corresponding controller connector until a click is heard. This will prevent the cable from becoming loose.
Push the robot cable’s opposite end into the corresponding controller connector until a click is heard to prevent the cable from becoming loose.
Caution
Make sure to check that the pins in the cable end are not damaged or bent before connecting the cable.
If the noise generated by electromagnetic waves causes issues, it is necessary to install a ferrite core to ensure normal operation. For more information about the ferrite core installation location, refer to the followings:
