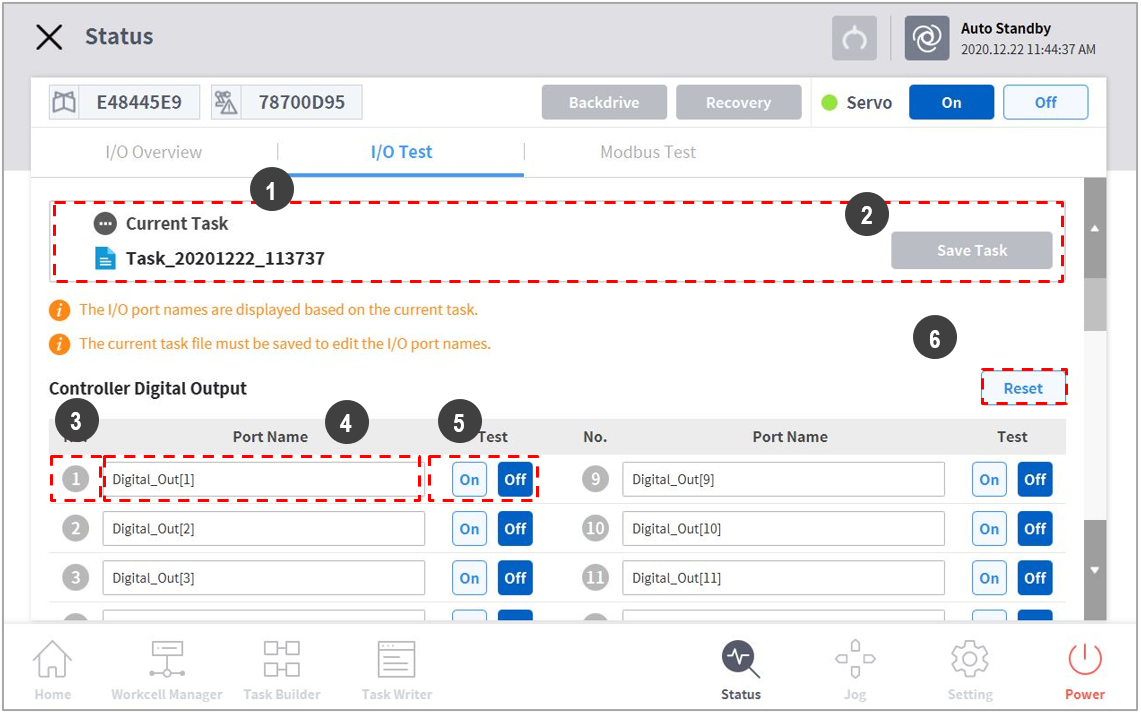

I/O Test

1

Current Task

Displays the task currently being edited or executed.

2

Save Task

If changes are made to the task being edited, they must be saved in order to test the I/O device.

3

Port Number

It displays the port number used for testing the I/O device, and it is displayed when the signal is on.

4

Port Name

The port name of the I/O device for testing can be designated.

5

I/O Test

A signal can be sent to the corresponding port.

6

Initialization

Initializes all signals of the device as off.
