Alignment based on Workcell Items

Aligns the robot TCP based on the Workcell item.

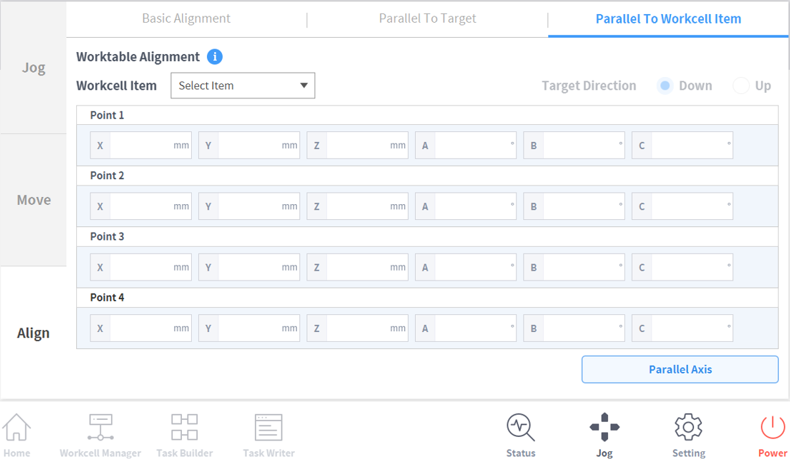

1. Select the Align screen and select the Parallel To Workcell Items tab.
2. Select the desired item from the Workcell Item.
3. Select the alignment direction.
4. Tap and hold the Align Axis button to align the axis.




Note

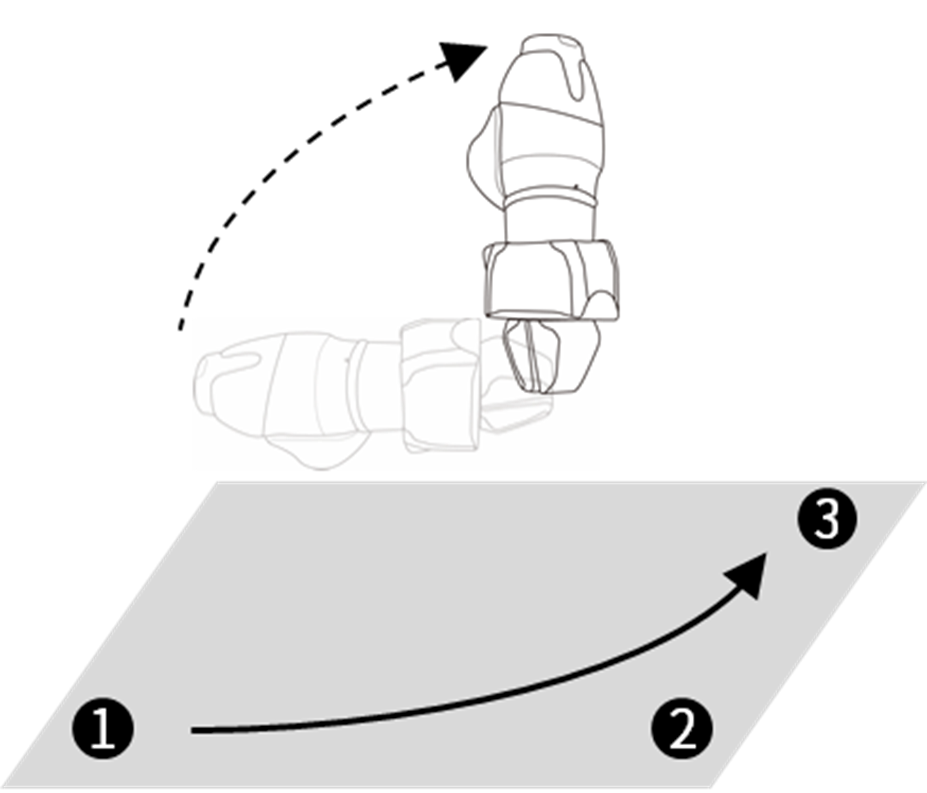

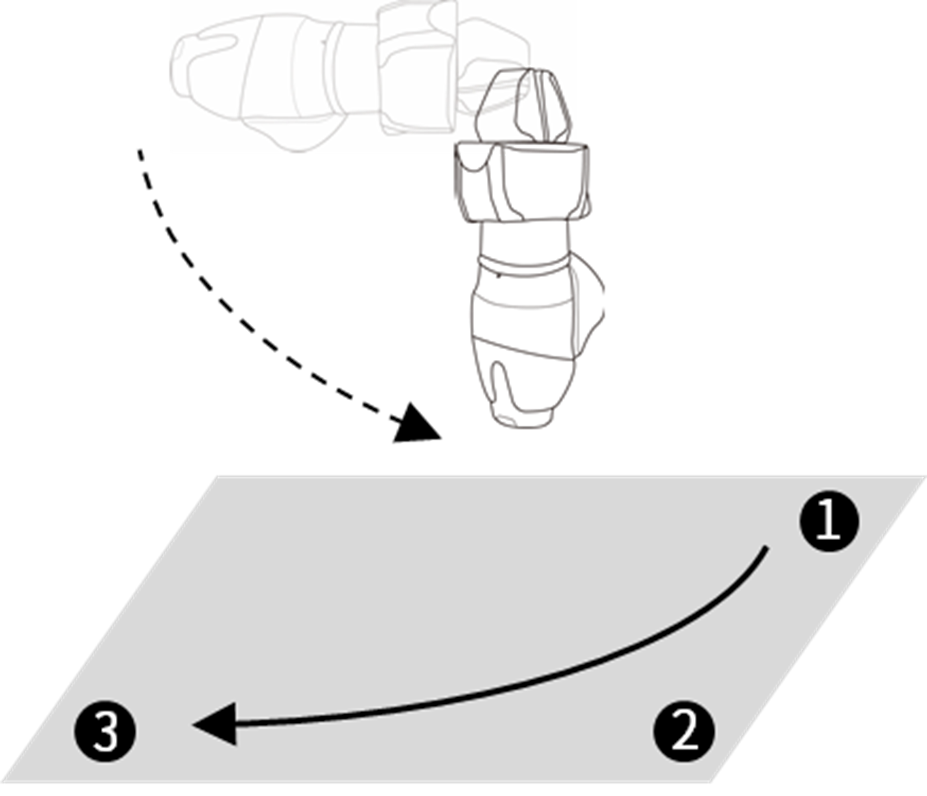

The sorting directions for Alignment based on Target and (2.11.0.1_temp-en_US) Alignment based on Workcell Items are determined according to whether the teaching sequence of three points taught in the Workcell Item was clockwise or counter clockwise. [Refer to Figure below]
