A0509(S) Stop Category 1

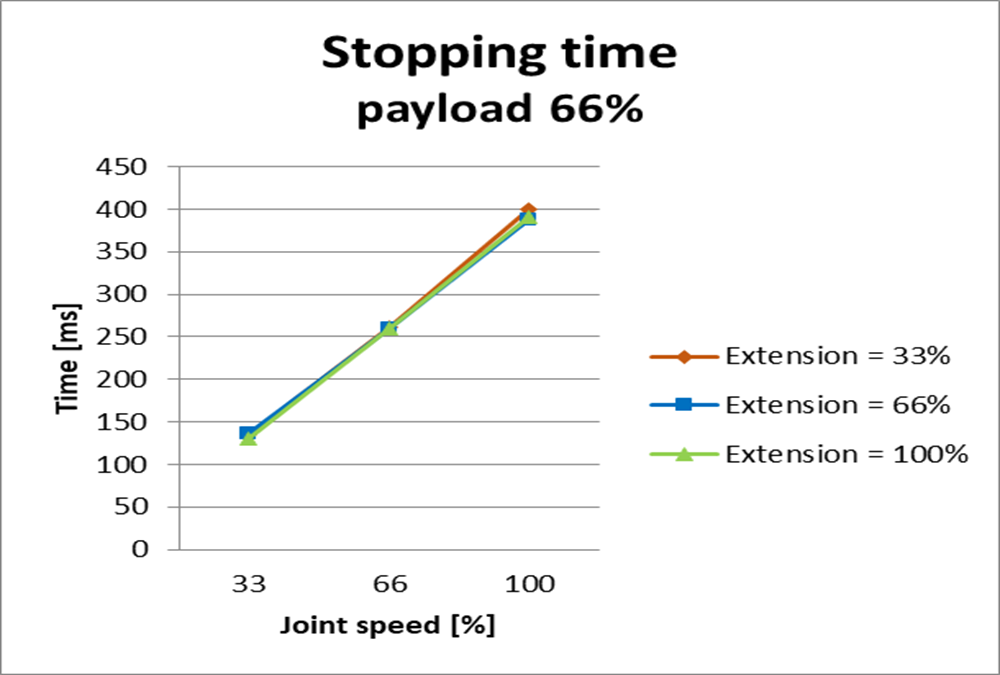

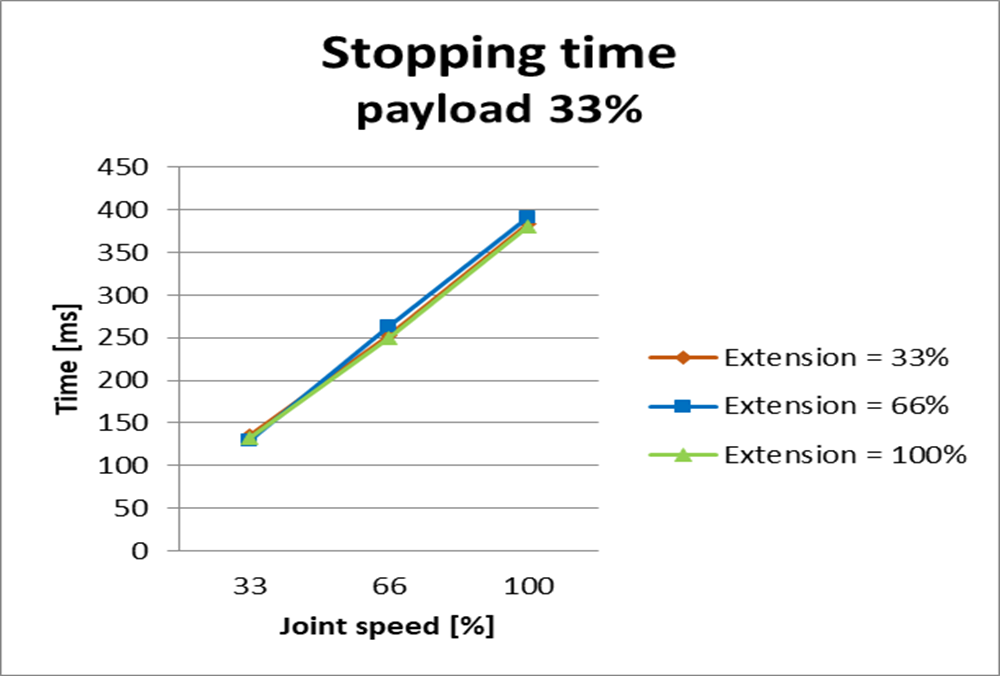

Stop Distance and Stop Time of Joint 1 (Base)

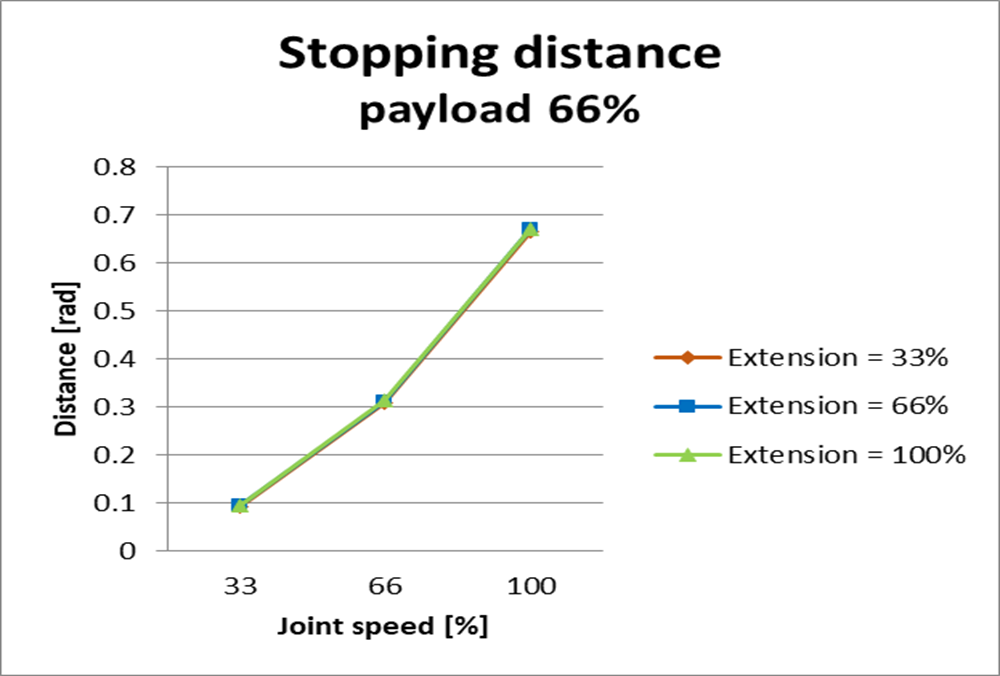

Stop Distance at 33% of Max. Load (rad) | Stop Distance at 66% of Max. Load (rad) |
|
|

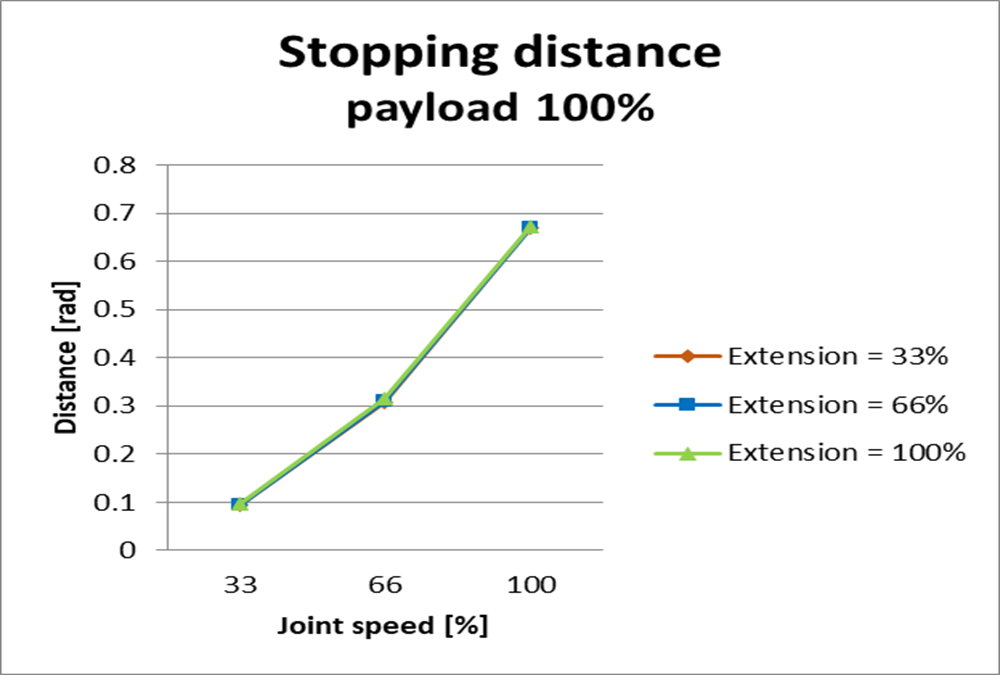

Stop Distance at Max. Load (rad) | Stop Time at 33% of Max. Load (ms) |
|
|
Stop Time at 66% of Max. Load (ms) | Stop Time at Max. Load (ms) |
|
|

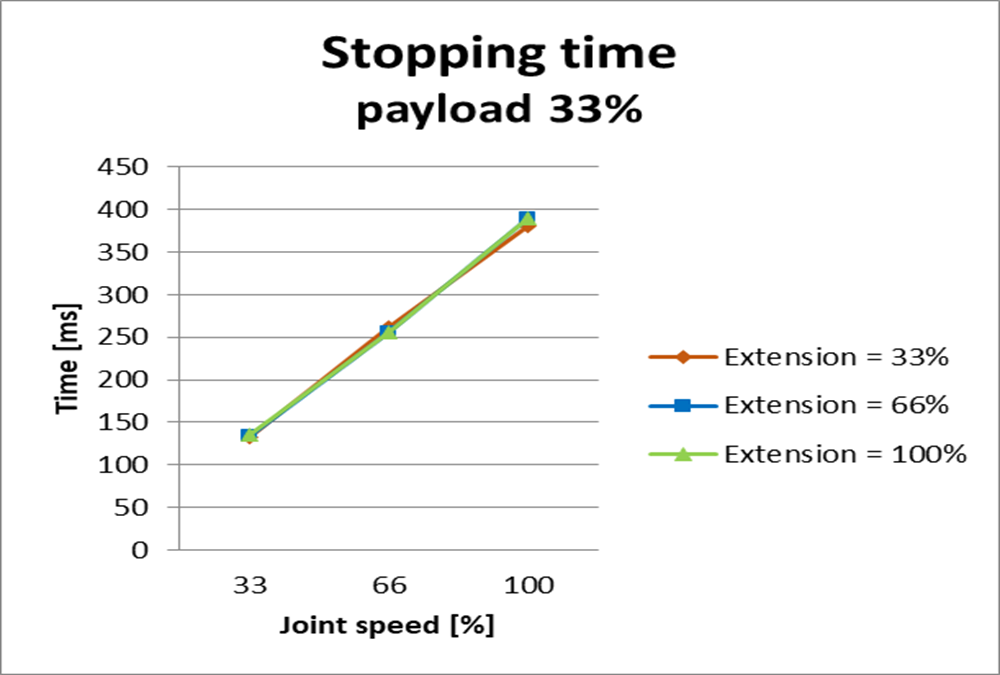

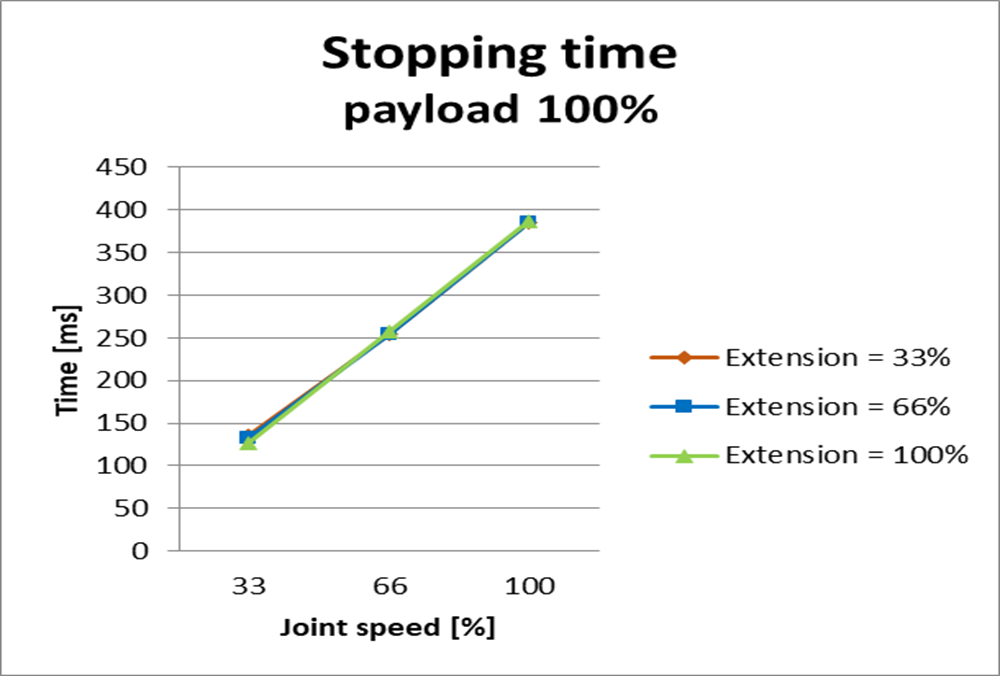

Stop Distance and Stop Time of Joint 2 (Shoulder)

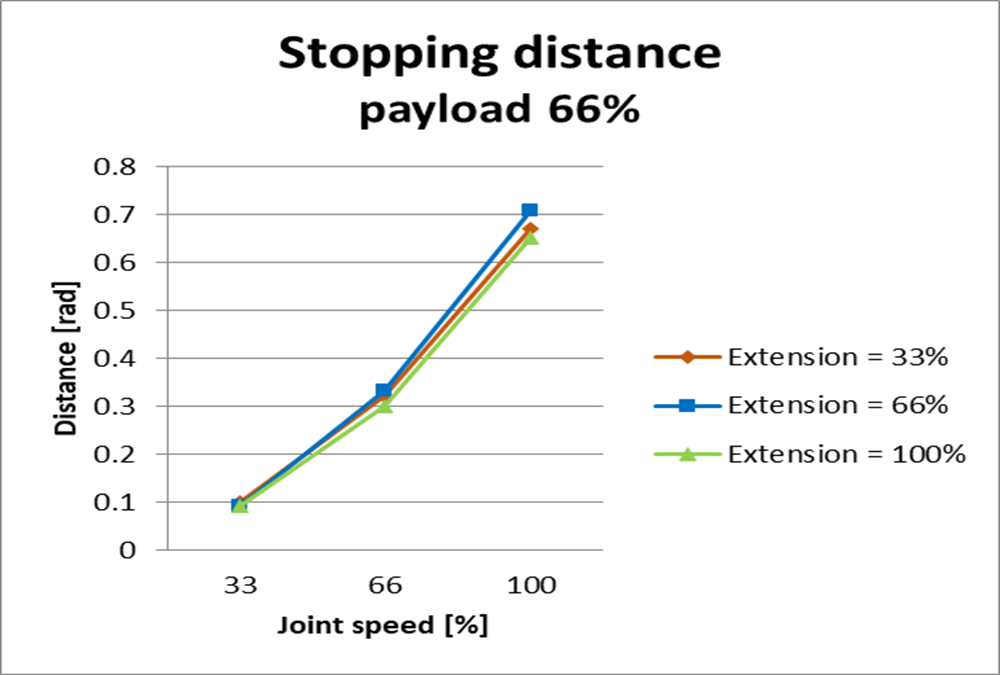

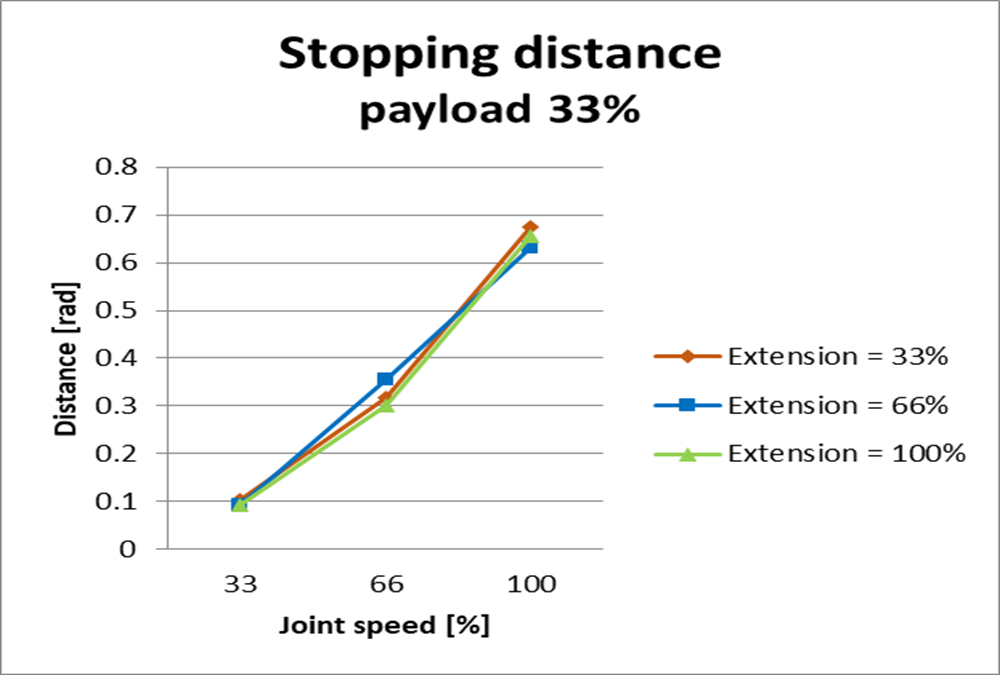

Stop Distance at 33% of Max. Load (rad) | Stop Distance at 66% of Max. Load (rad) |
|
|

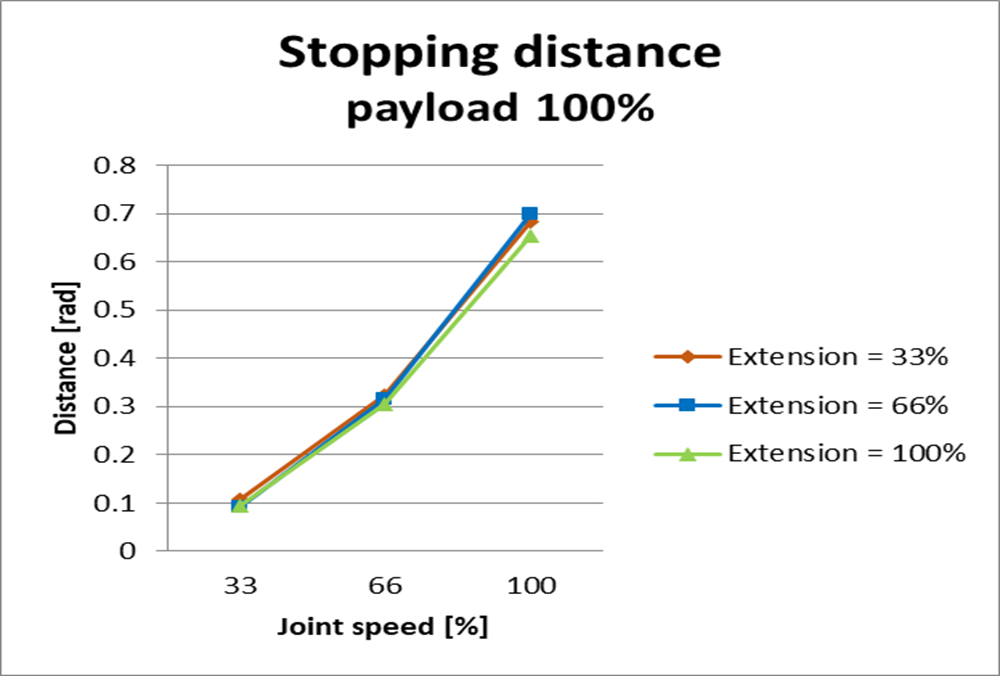

Stop Distance at Max. Load (rad) | Stop Time at 33% of Max. Load (ms) |
|
|

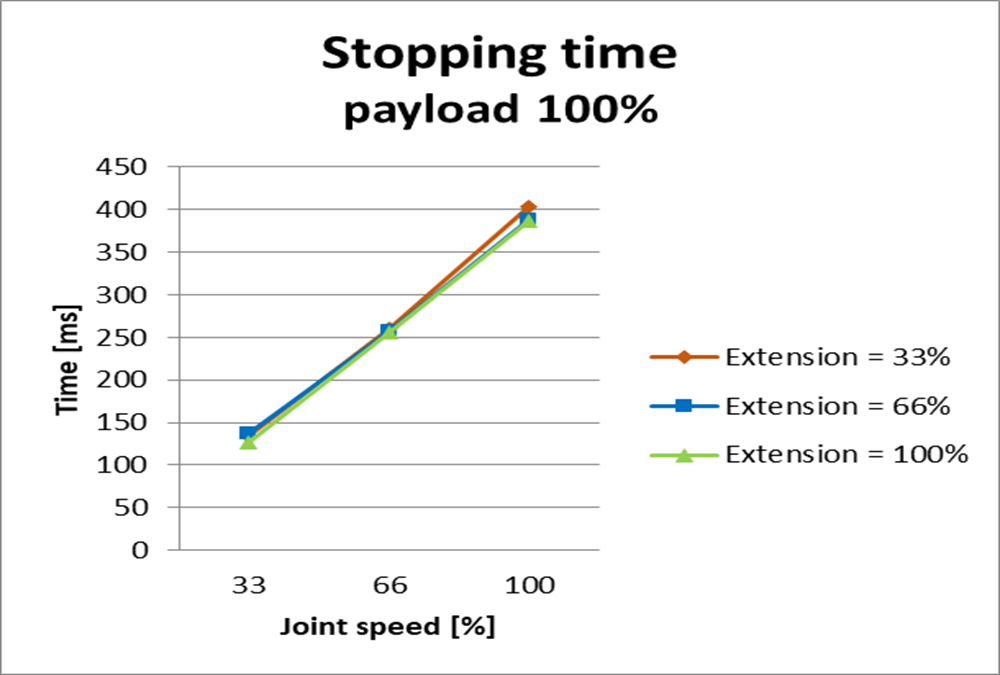

Stop Time at 66% of Max. Load (ms) | Stop Time at Max. Load (ms) |
|
|
Stop Distance and Stop Time of Joint 3 (Elbow)

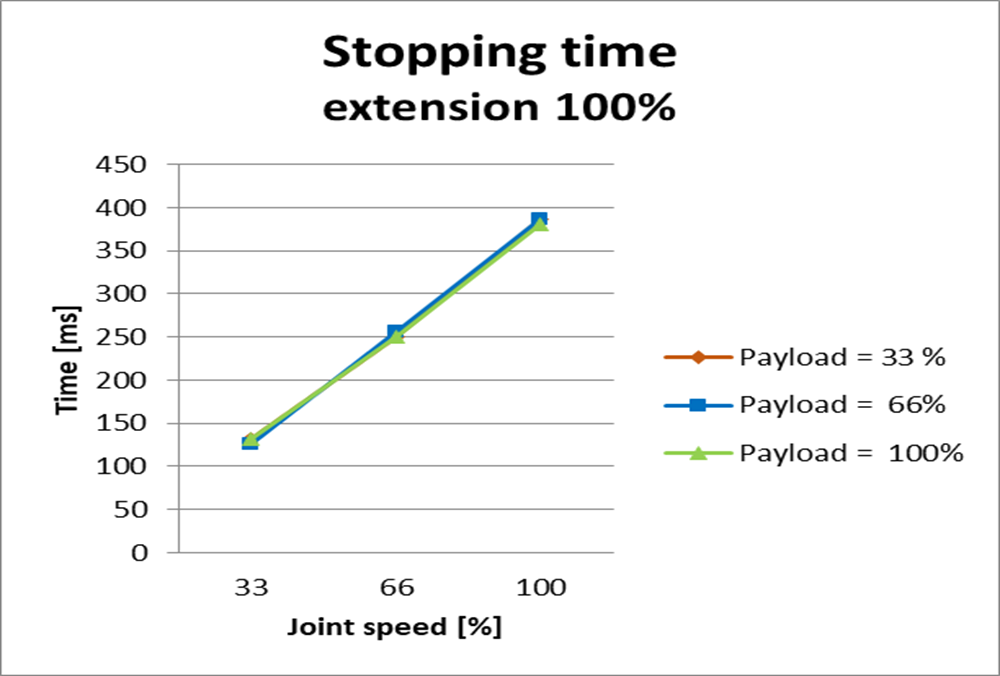

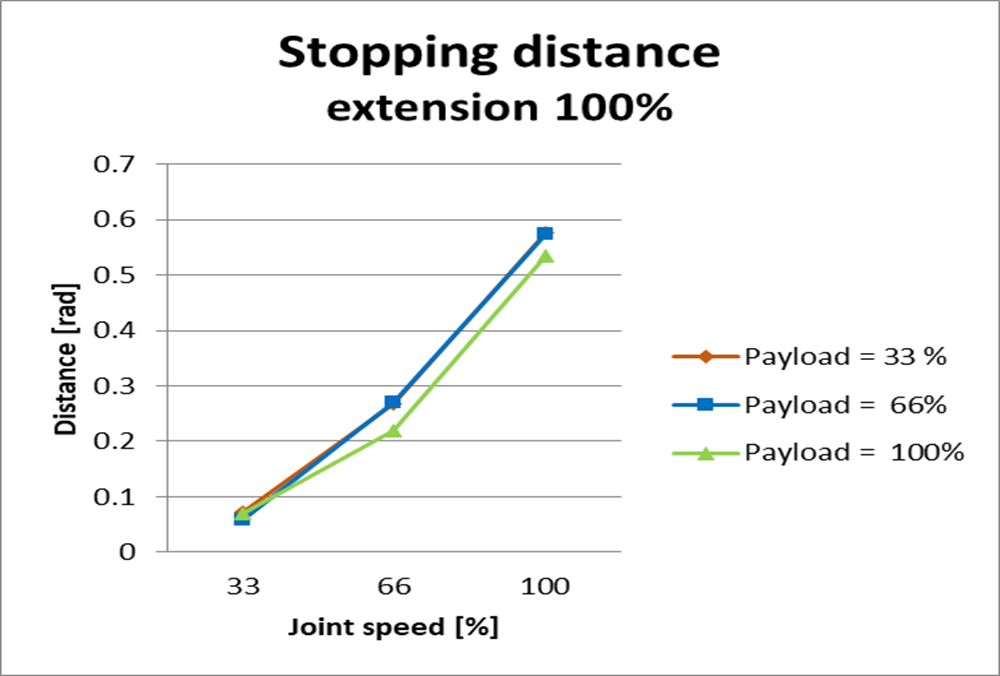

Stop Distance at Max. Stretch Level (rad) | Stop Time at Max. Stretch Level (ms) |
|---|---|
|
|
