Tool Weight Setting

To configure the robot tool weight, tap the

“Add” button on the Robot Workcell and select Robot > Tool Weight.

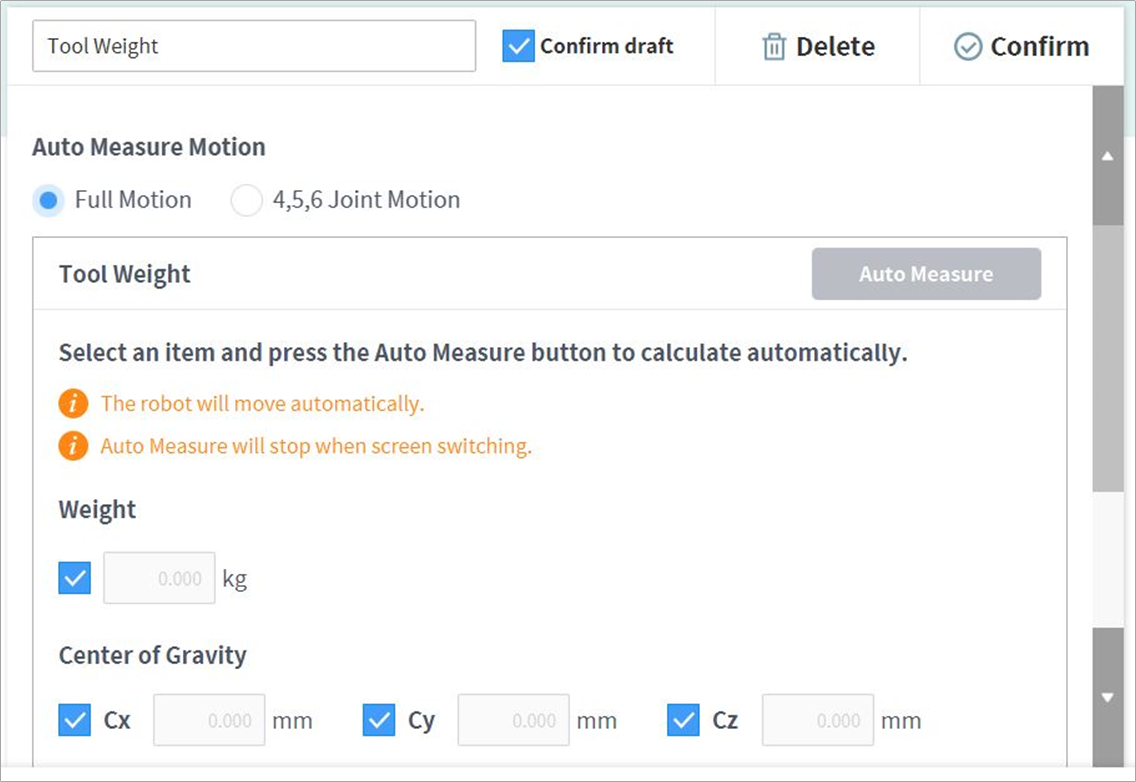

Auto Tool Weight Measurement:

Select an Auto motion calculation method.
- All Motion: All joints are used to measure tool weight.
- 4, 5, 6 Motion: Joints 4, 5 and 6 are used to measure tool weight.
Enable the checkbox of the parameter (weight, center of gravity) to estimate.
- It is possible for the user to enter a known parameter value without enabling the checkbox.
- If the user enters a known parameter, the values for parameters with their checkboxes enabled calculate the weight or center of gravity according to the entered parameter value.
Tap the Auto Calculate

Warning

If the Auto Calculate checkbox for weight is disabled, enter a positive real number.
(the center of gravity can be a negative real number or 0)
Remove all obstacles before executing auto calculate.
To execute Auto Calculate of 4, 5 and 6, the 3-axis angle must be greater than +30 degrees or less than -30 degrees.
Note that safety monitoring functions are disabled during Auto Calculate.
During Auto Calculate, the Auto Calculate button becomes the Stop button, which allows the user to stop Auto Calculate. If calculation is stopped, the weight and center of gravity values are reset.

Note

When automatically measuring tool weight, there is a margin of error of ±0.5 kg (1.1 lb.).
