Tool Shape Setting

To set the robot tool shape, tap the

Add button on the Robot Workcell and select Robot > Tool Shape. The Safety Password is required during setup.

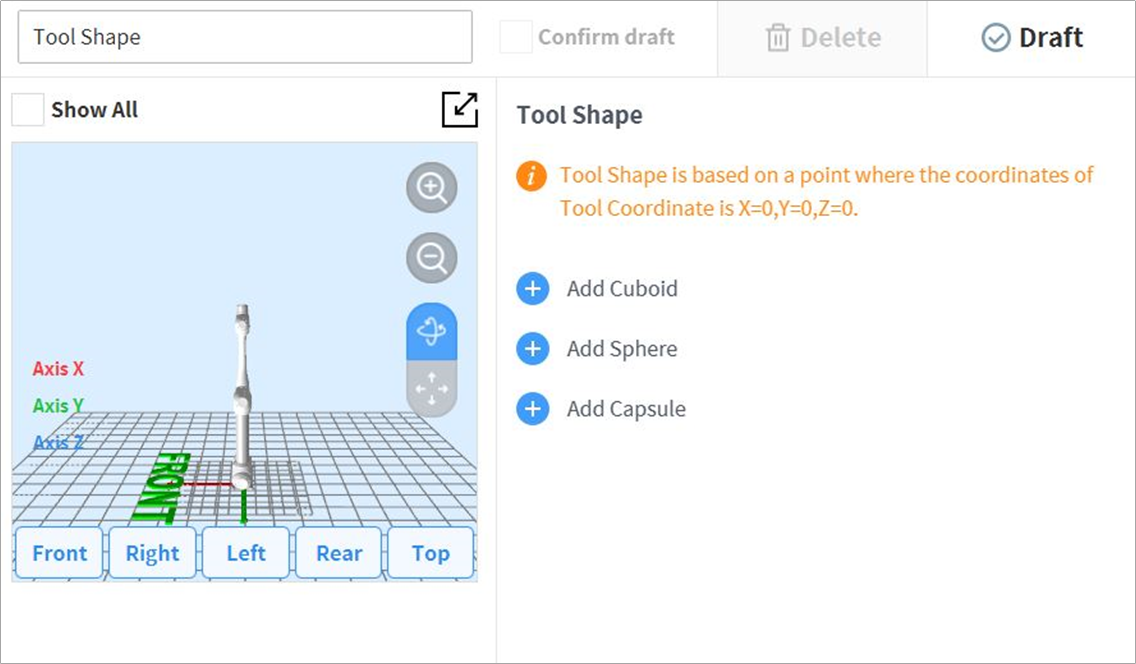

Tool shape can be set by adding Cuboid, Sphere, and Capsule shapes.

Select a shape that matches the tool and tap the Confirm button.
