Power-up controller

MANDATORY EASY 3 MIN

• For more information about robot booting, refer to Connecting External Device – DART Platform

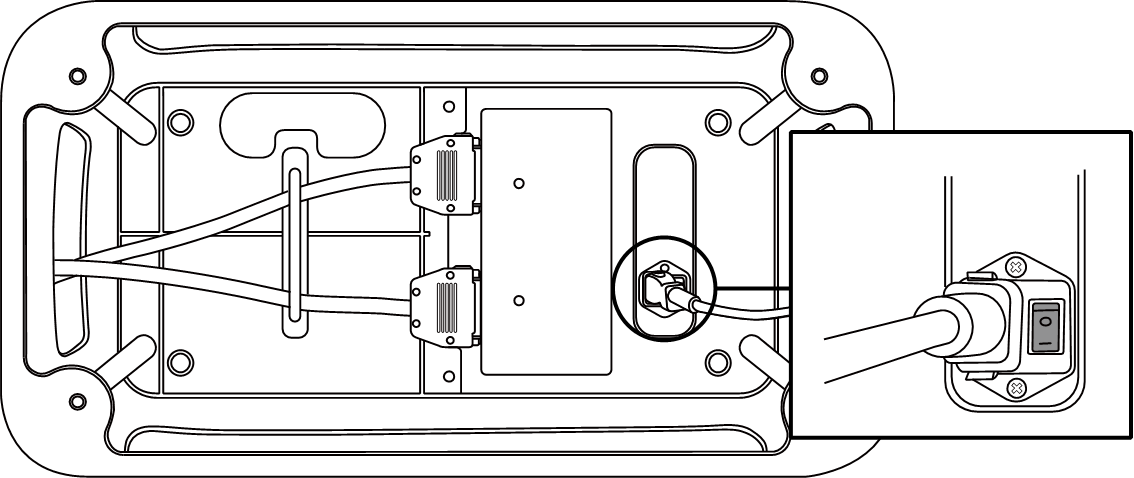

The power switch of the controller is located at the bottom of the controller.

 2. Press and hold the power button (Fig. 2) until the teach pendant screen powers up. The teach pendant LED (Fig. 1) and flange LED (Fig. 3) will blink red until the robot controller connects to the network.

• For more information about equipment other than the teach pendant, refer to System Power On/Off.

Note

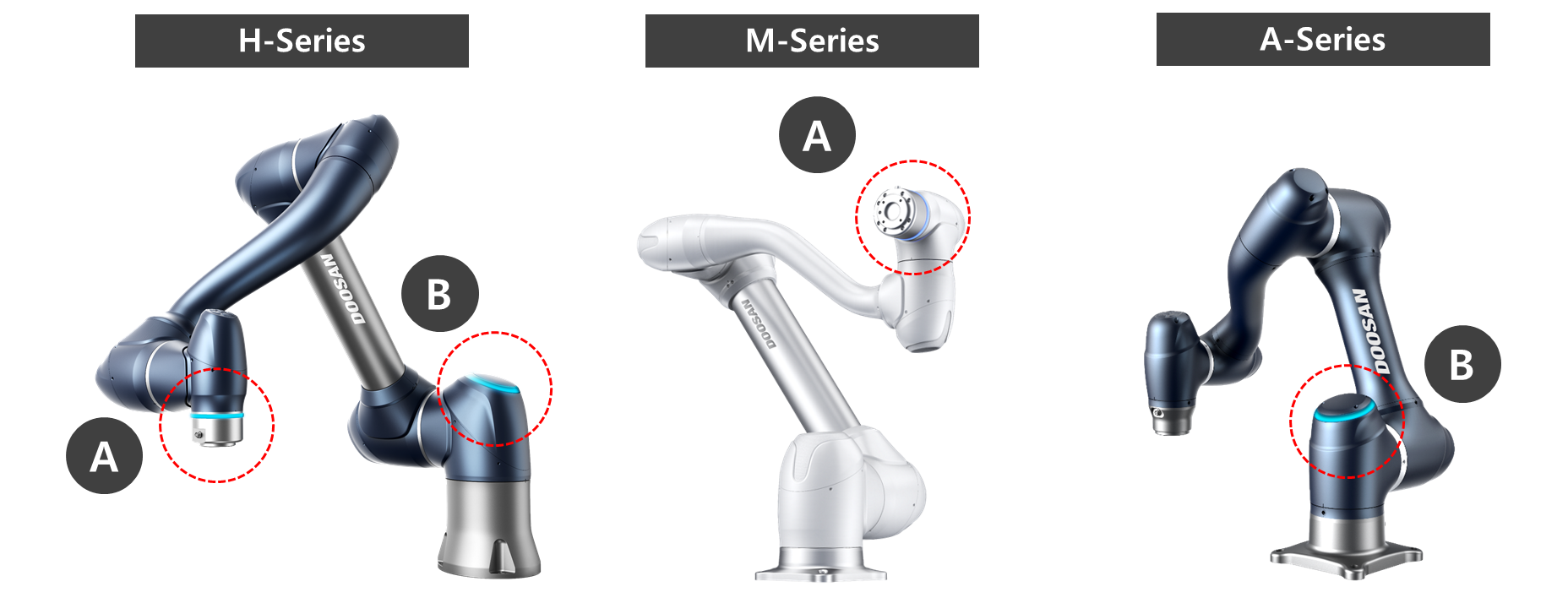

LED positions of each Doosan Robotics robot series are as follows:

• A: Flange LED
• B: Axis 1 LED
