Installation (CS-01P)

Cautions during Installation

Caution

  • Secure sufficient space for installation before installing the controller. If not enough space is secured, the controller may be damaged or the robot or teach pendant cable may have a shortage.
  • Check the input power supply when connecting power to the product. If the connected input power supply is different from the rated power input (100-240VAC 50/60Hz), the product many not operate properly or the controller may be damaged.

Installation Environment

When installing the controller, consider the following.

  • Secure sufficient space for installation before installing the controller.
  • The controller must be fixed.

Hardware Installation

Install the robot, controller and teach pendant, the key components of the system, and supply power to them before operating the robot. Installation of each component is as follows:

Connecting the Manipulator and Controller


Description
1

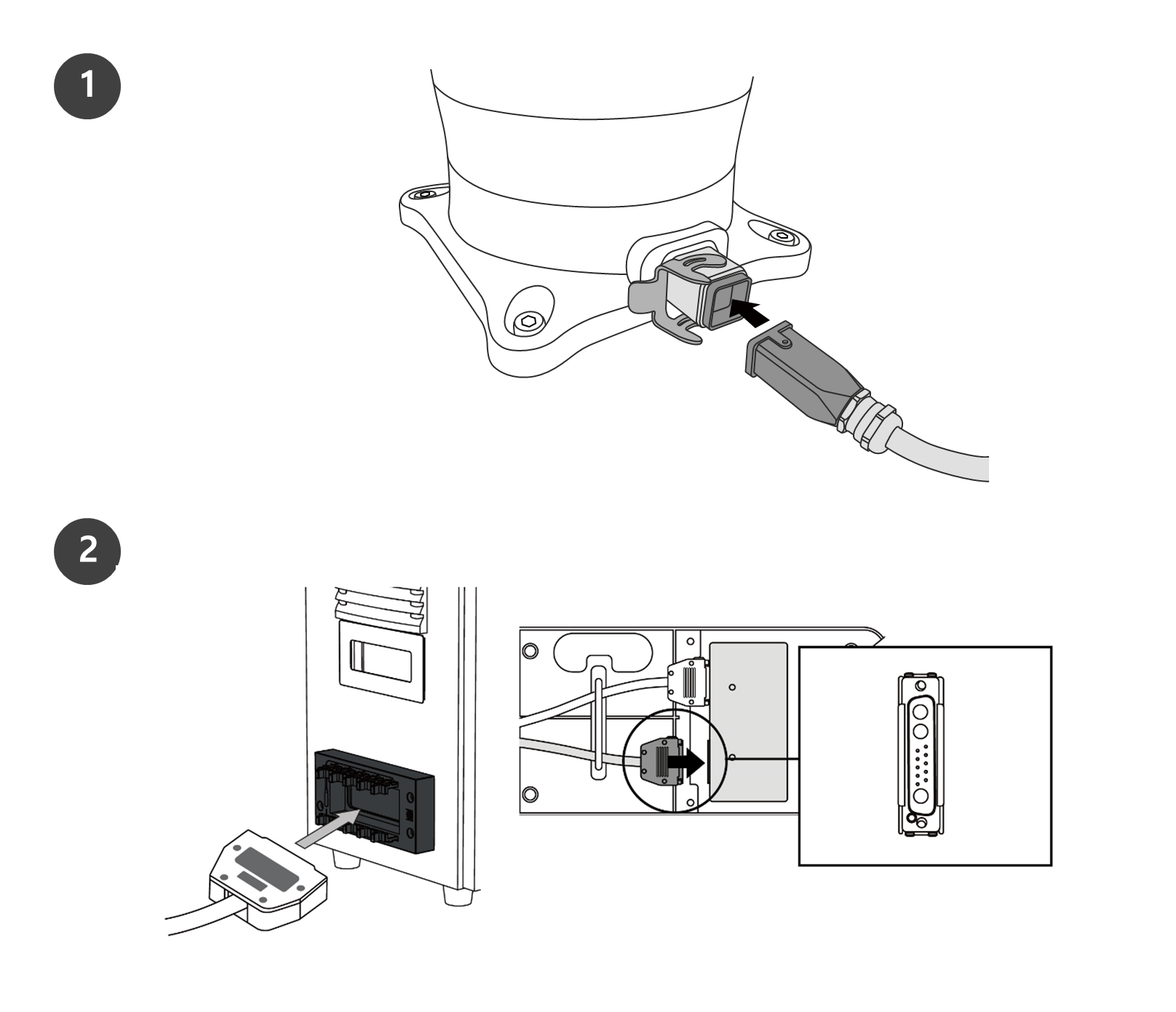

Connect the Manipulator cable to the controller, place a securing ring

  • Connect the manipulator cable to the corresponding controller connector and place a securing ring on it to prevent the cable from becoming loose.
2

Connect the Manipulator cable’s opposite end to the controller connector

  • Push the manipulator cable’s opposite end into the corresponding controller connector until a click is heard to prevent the cable from becoming loose.

Caution

  • Do not disconnect the robot cable while the robot is turned on. This can cause damage to the robot.
  • Do not modify or extend the manipulator cable.
  • When installing the controller, secure at least 50 mm of space on each side of the controller to enable ventilation.
  • Make sure that connectors are properly connected before turning on the controller.

Note

  • When configuring the system, it is recommended that a noise reducer be installed to prevent noise effects and malfunction of the system.

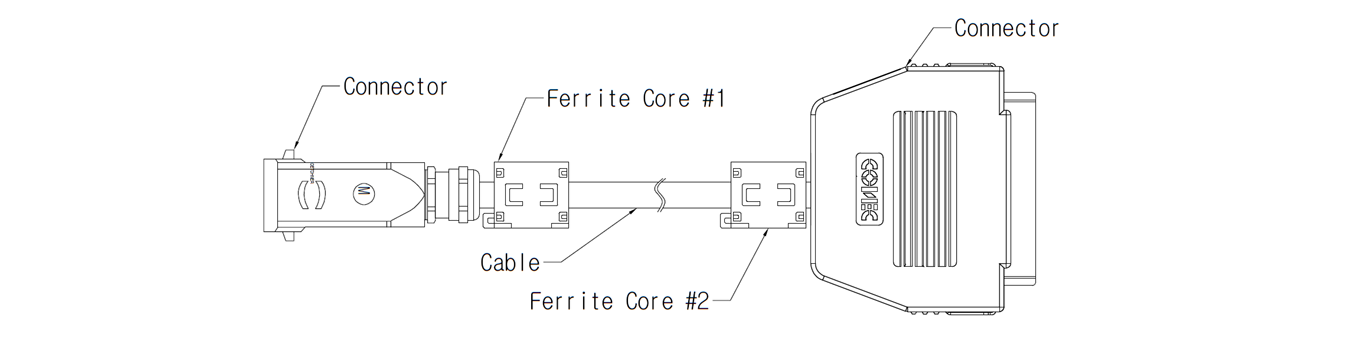

  • If the controller is influenced by noise generated by electromagnetic waves, it is necessary to install a ferrite core to ensure normal operation. The installation location is as follows:

Connecting the Controller and Teach Pendant

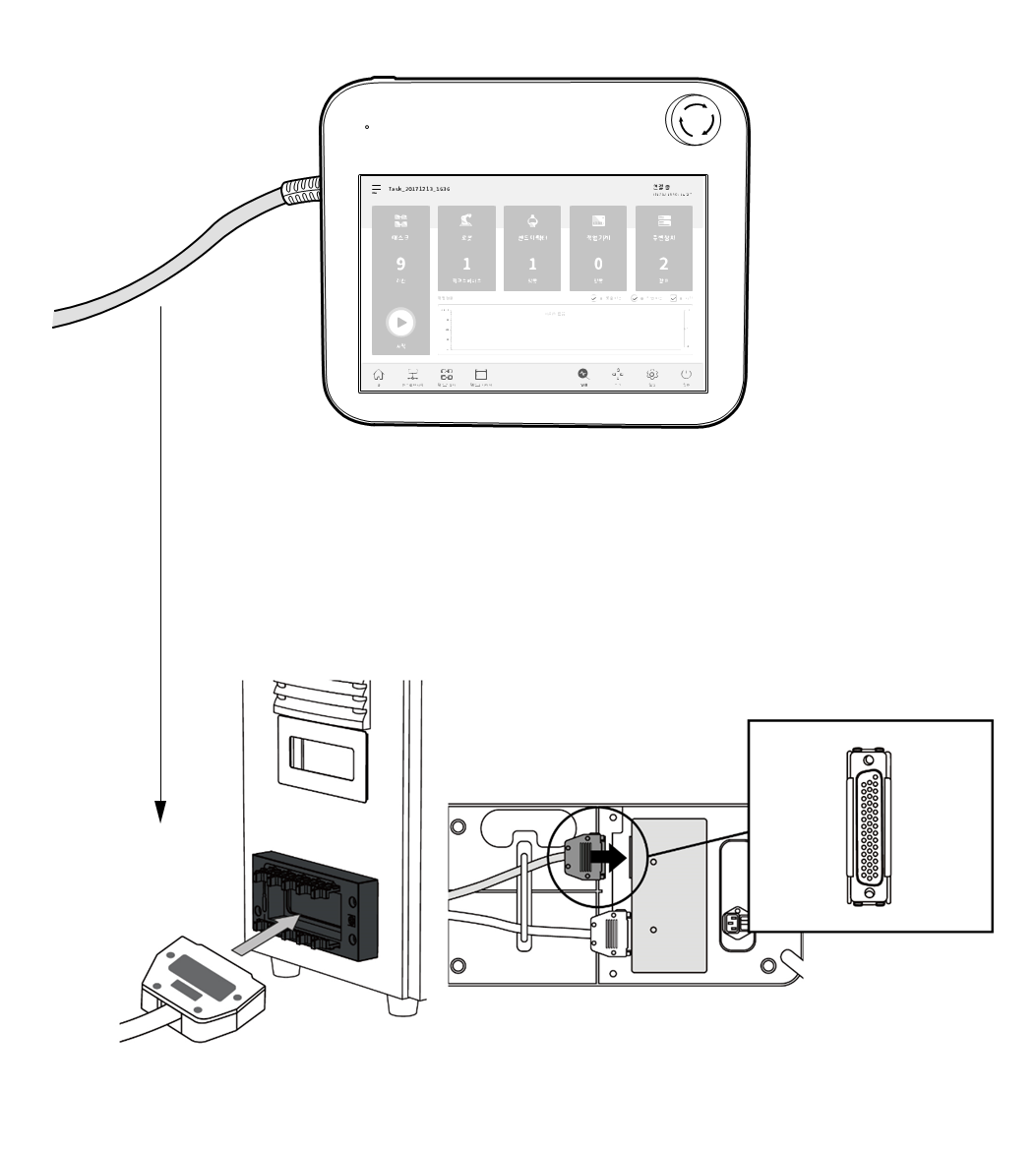

Push the teach pendant cable into the corresponding controller connector until a click is heard to prevent the cable from becoming loose.

Caution

  • Make sure that the pins of the cable end are not damaged or bent before connecting the cable.
  • If the teach pendant is used by hanging on the AGV or on the controller, be careful not to trip on the connecting cables.
  • Be careful not to allow the controller, teach pendant and cable come in contact with water.
  • Do not install the controller and teach pendant in a dusty or wet environment.
  • The controller and teach pendant must not be exposed to a dusty environment. Be especially careful in environments with conductive dust.

Note

  • When configuring the system, it is recommended that a noise reducer be installed to prevent noise effects and malfunction of the system.

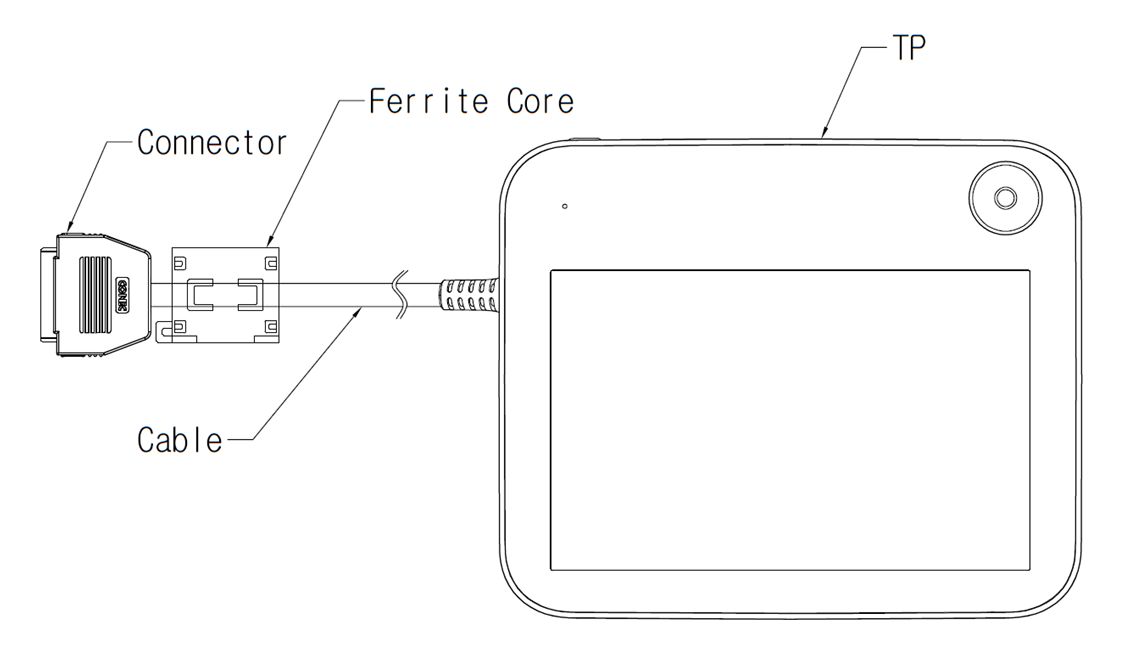

  • If the teach pendant is influenced by noise generated by electromagnetic waves, it is necessary to install a ferrite core to ensure normal operation. The installation location is as follows:

Routing of Manipulator Cable and Teach Pendant Cable

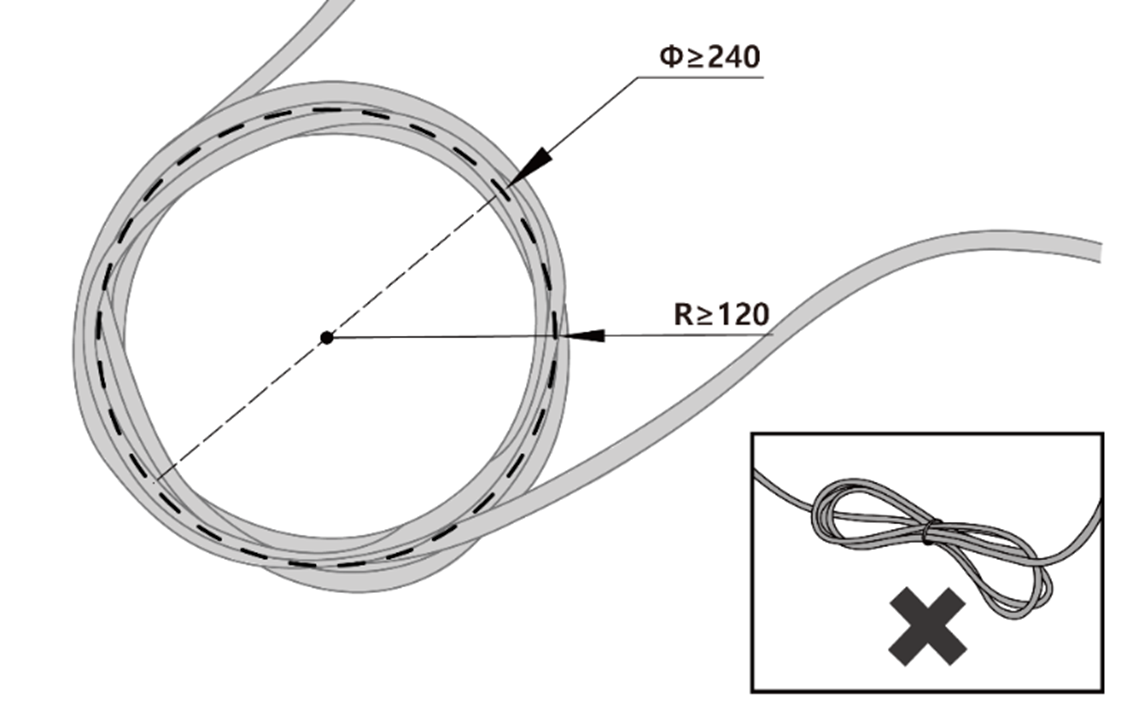

Ensure that the manipulator and teach pendant cable curvature radius is greater than the minimum curvature radius (120 mm).


Supplying Power to the Controller

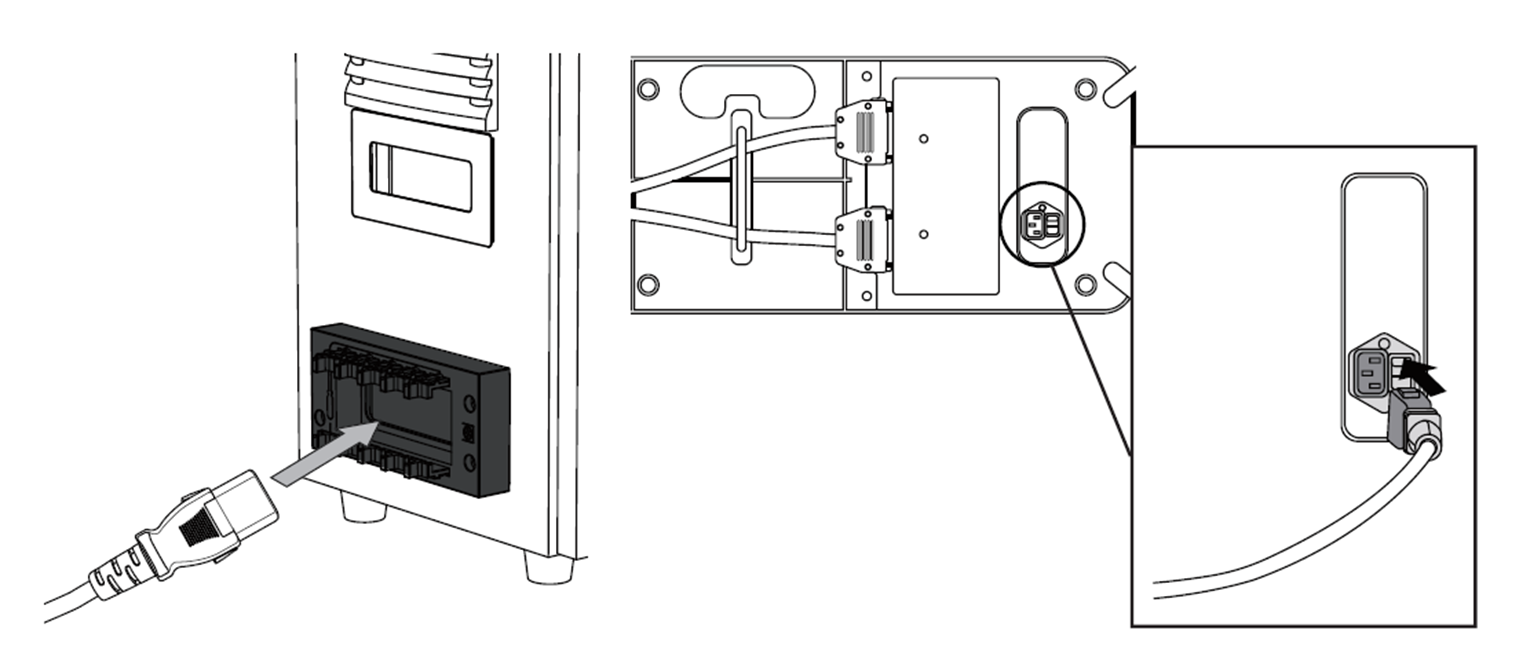

Push the power cable into the corresponding controller connector until a click is heard to prevent the cable from becoming loose.

Warning

  • After connecting the power cable, make sure that the robot has established a proper ground (electronic ground connection). Establish a common ground for all equipment in the system with an unused bolt related to the ground symbol inside the controller. The ground conductor must satisfy the maximum current rating of the system.
  • Protect the input power of the controller using devices such as a circuit breaker.
  • Do not modify or extend the robot cable. It can cause fire or controller breakdown.
  • Make sure that all cables are properly connected before supplying power to the controller. Always use the original cable included in the product package.
  • Be careful not to connect the polarity of the input voltage incorrectly.

Note

  • When configuring the system, it is recommended to install a power switch that can turn off power to all devices in the system at once.
  • If the input voltage is less than 195V, the robot’s movement may be limited according to the load and motion.
  • The power supply must satisfy minimum requirements such as ground and circuit breakers. The electrical specifications are as follows: (If you selected an optional controller, check the instructions in the appendix)

    Parameter

    Specification

    Input Voltage

    100 – 240 VAC

    Input Power Fuse (@100-240V)

    15 A

    Input Frequency

    47 – 63 Hz
