Status Module
The Status module is a module that can monitor the controller, the input/output of the flange, and the communication register.

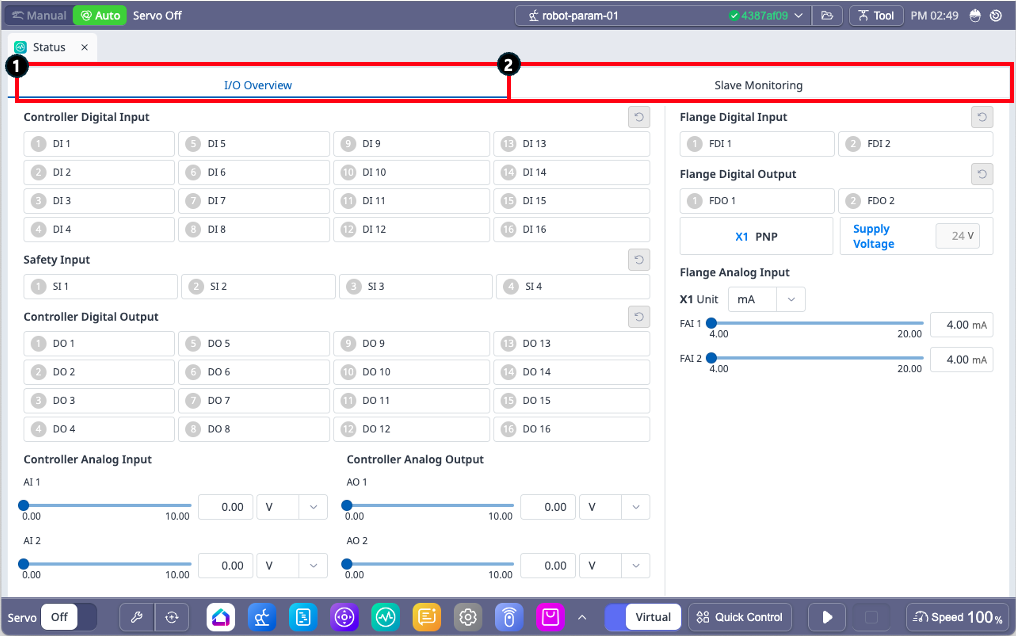

Status Module Screen layout
Items | Description | |
|---|---|---|
| 1 | I/O Overview | Set analog and digital input/output settings for controllers, flanges. |
| 2 | Slave Monitoring | Monitor General Purpose Register (GPR) information for Modbus, Ethernet IP, and PROFINET Slave. |
