E0509 Stop Category
E0509 Stop Category 0
Joint 1
Extension=100%, Speed=100%, Payload=100%
Stopping distance (rad) | Stopping time (ms) | |
|---|---|---|
Joint 1 | 0.49 | 300 |
Joint 2
Extension=100%, Speed=100%, Payload=100%
Stopping distance (rad) | Stopping time (ms) | |
|---|---|---|
Joint 2 (θj2) | 0.53 | 300 |
Joint 3 (θj3) | 0.0037 | |
Distance (θd) | 0.532 |
Joint 3
Extension=100%, Speed=100%, Payload=100%
Stopping distance (rad) | Stopping time (ms) | |
|---|---|---|
Joint 2 (θj2) | 0.00035 | 40 |
Joint 3 (θj3) | 0.00018 | |
Distance (θd) | 0.00070 |
The joint 2 and joint 3 angles are refer to θj2, θj3, θd in Measurement Poses and Conditions.
E0509 Stop Category 1
Stop Distance and Stop Time of Joint 1 (Base)

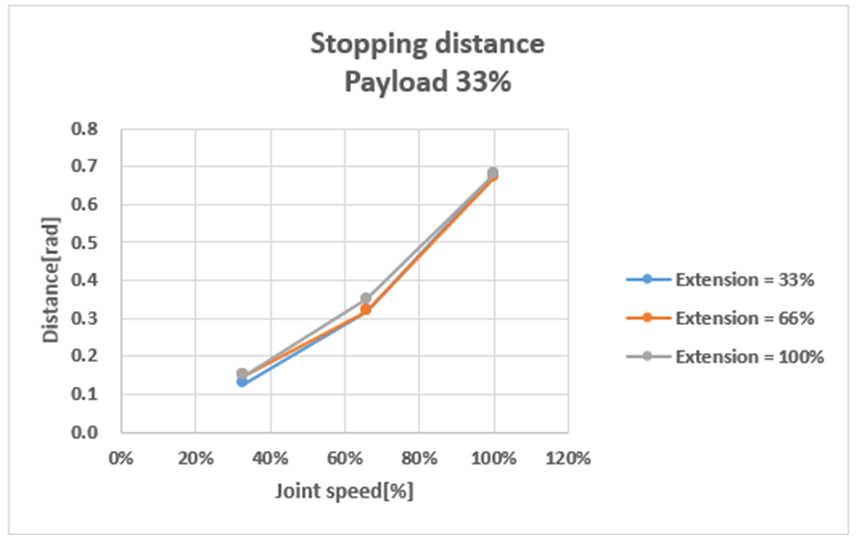

Stop Distance at 33% of Max. Load (rad) | Stop Distance at 66% of Max. Load (rad) |
 |  |

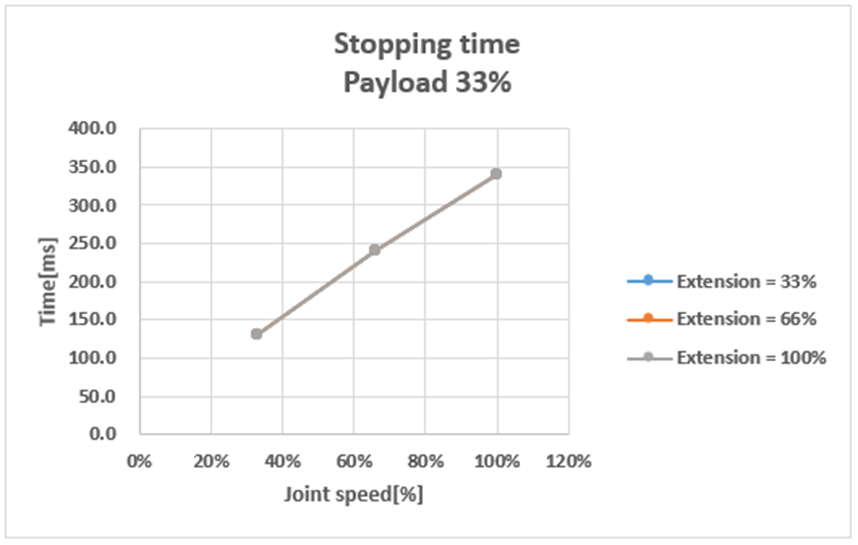

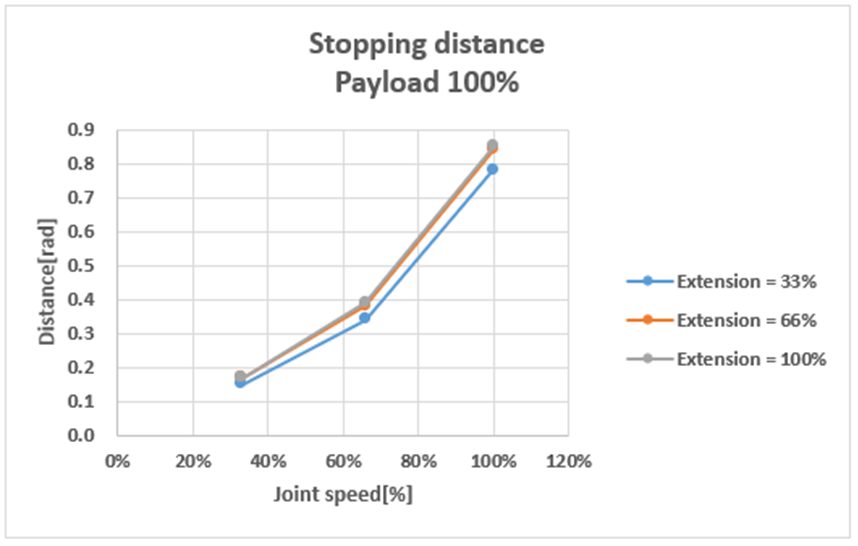

Stop Distance at Max. Load (rad) | Stop Time at 33% of Max. Load (ms) |
 |  |

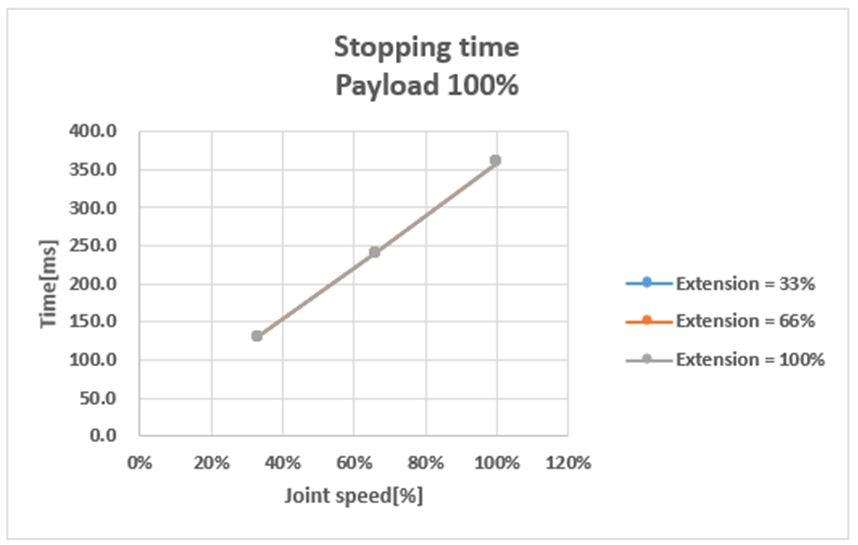

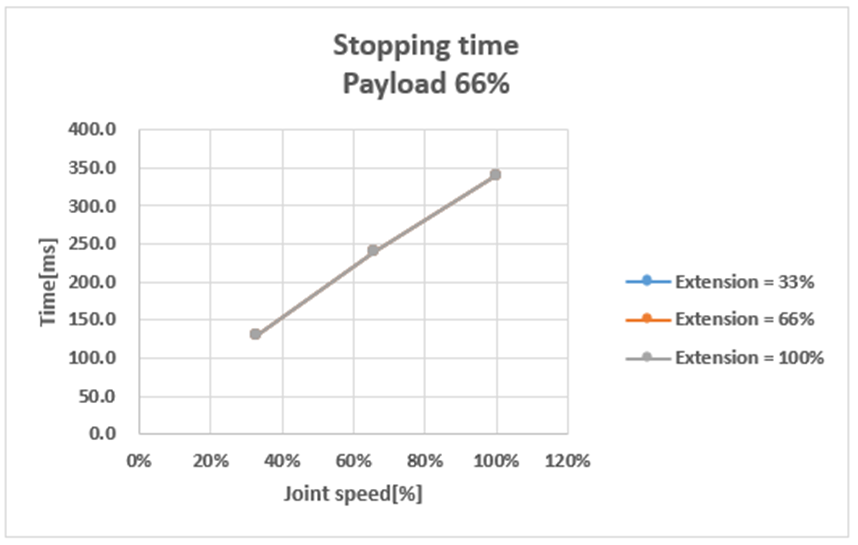

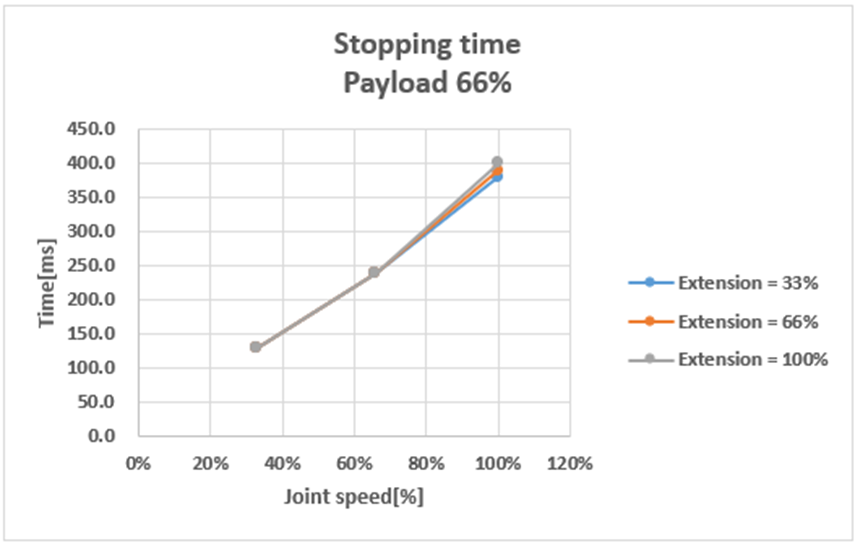

Stop Time at 66% of Max. Load (ms) | Stop Time at Max. Load (ms) |
 |  |
Stop Distance and Stop Time of Joint 2 (Shoulder)

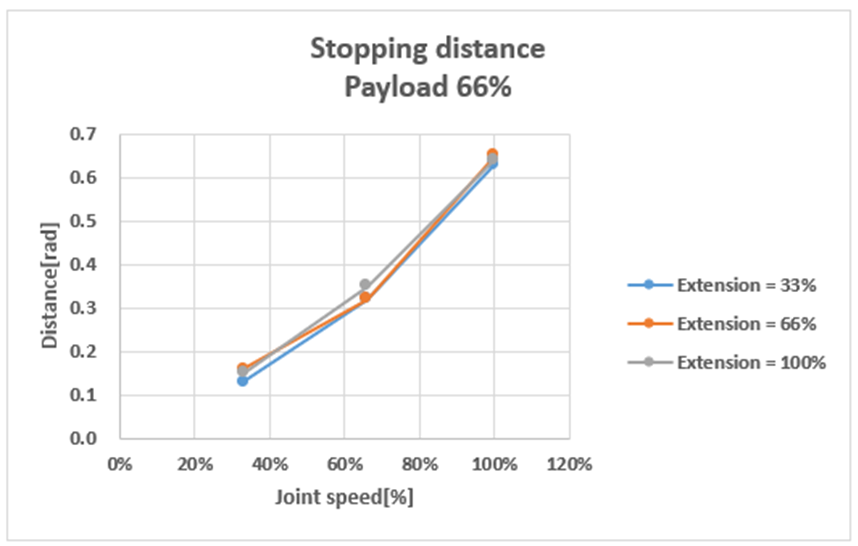

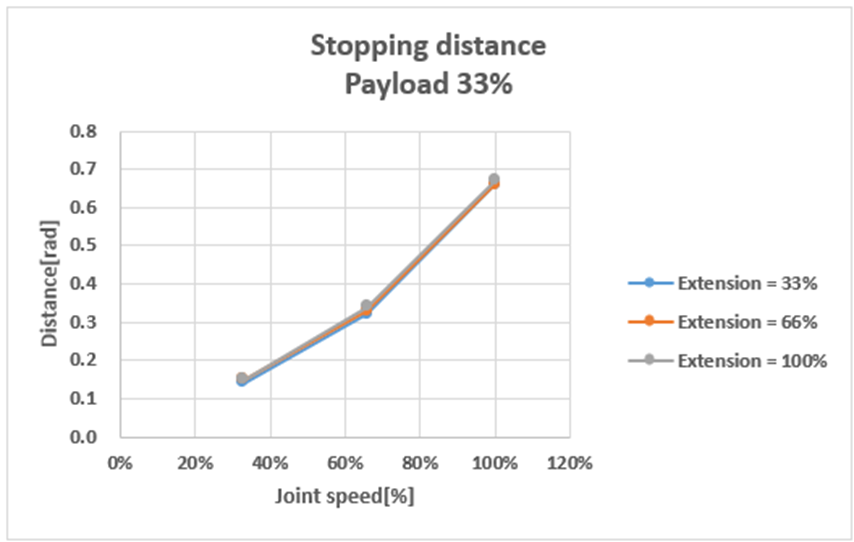

Stop Distance at 33% of Max. Load (rad) | Stop Distance at 66% of Max. Load (rad) |
 |  |
Stop Distance at Max. Load (rad) | Stop Time at 33% of Max. Load (ms) |
 |  |

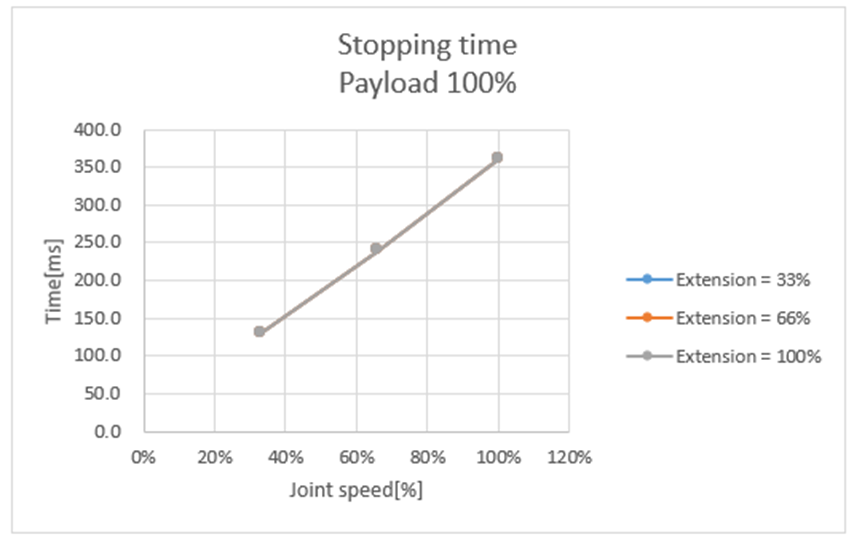

Stop Time at 66% of Max. Load (ms) | Stop Time at Max. Load (ms) |
 |  |
Stop Distance and Stop Time of Joint 3 (Elbow)
Stop Distance at Max. Stretch Level (rad) | Stop Time at Max. Stretch Level (ms) |
|---|---|
 |  |
