Configure in the Network section

In the Network section, you can set it up in relation to the controller and IDE connection.

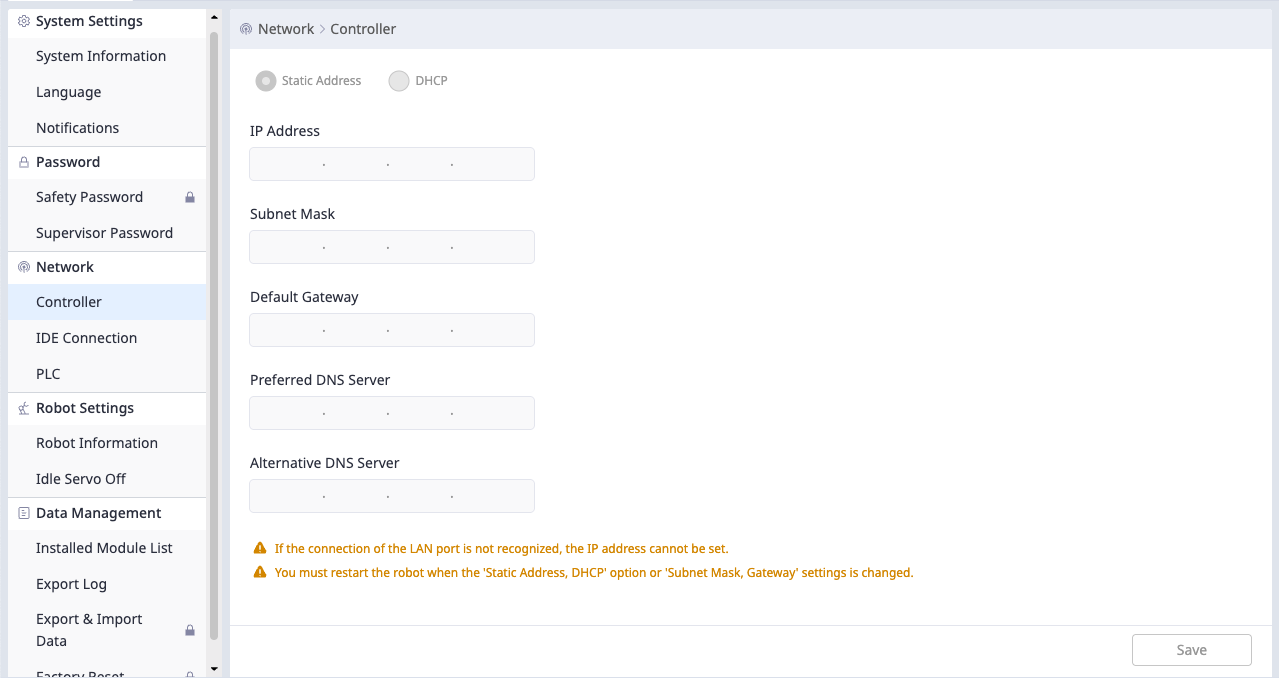

Controller

For the controller settings, you can choose either a fixed address or DHCP.

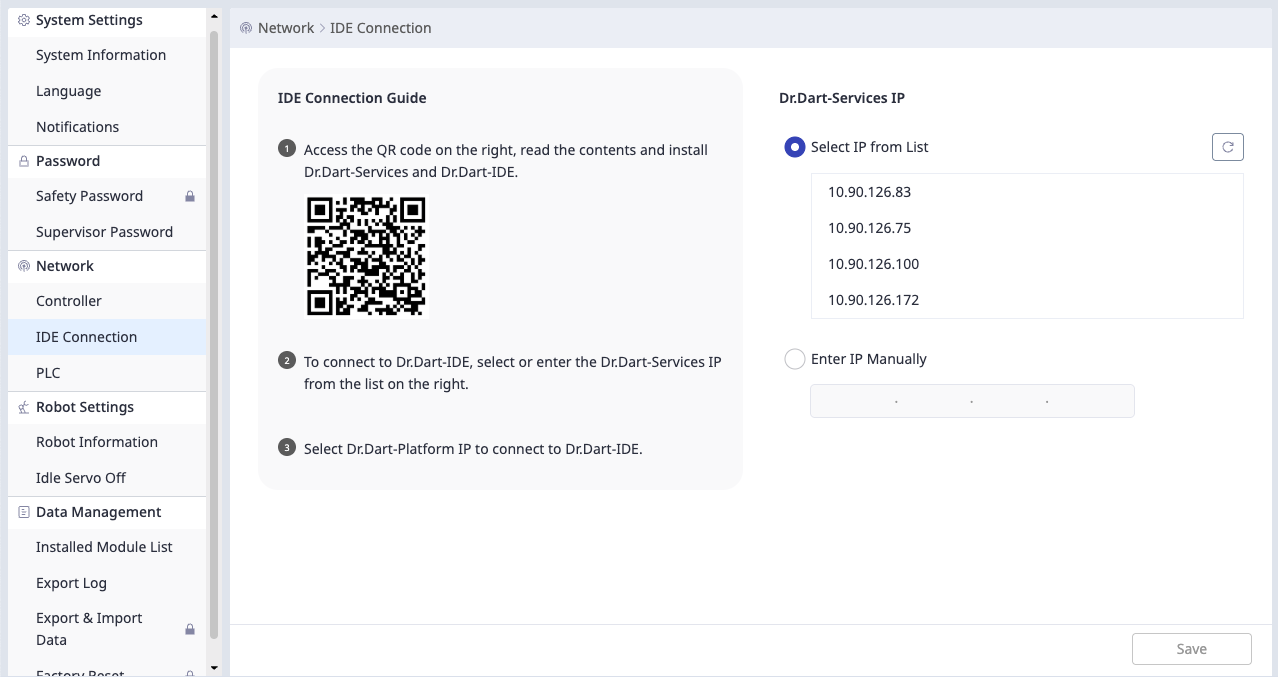

IDE Connection

In the IDE Connection tab, you can select the IP to connect with Dr.Dart-IDE.

User can select a connectable IP from the list or enter it directly.

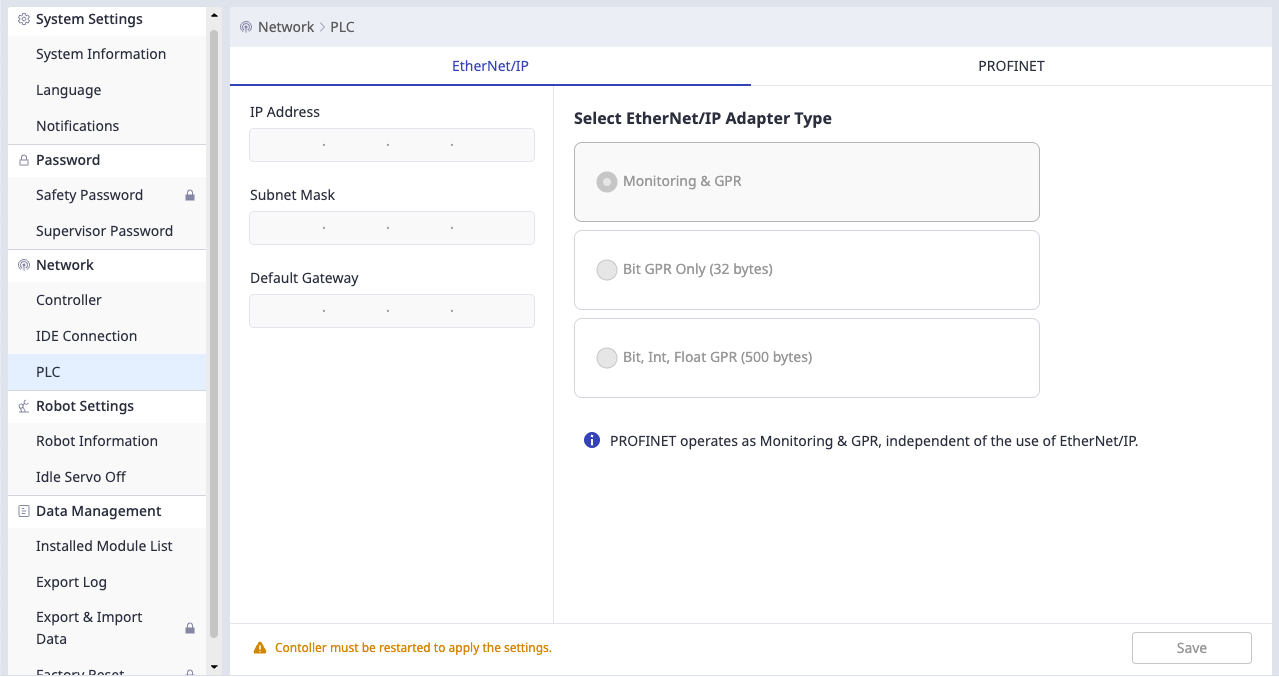

PLC

This menu allows you to view and configure the EtherNet/IP and PROFINET network settings of the controller, including communication methods and data configuration.

Note

• The settings will not be saved until you press the Save button at the bottom.

• If you are using industrial communications, use a static address.
