I/O Overview

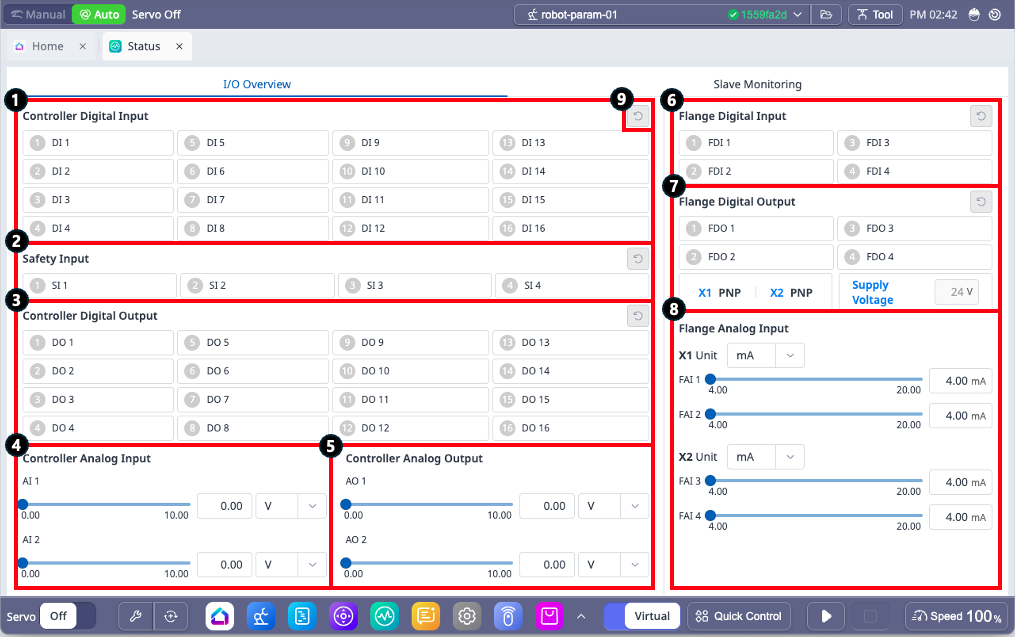

I/O Overview Screen Layout
Items | Description | |
|---|---|---|
| 1 | Controller Digital Input | Set the digital input settings for the controller. |
| 2 | Safety Input | Set the safety input settings. |
| 3 | Controller Digital Output | Set the digital output settings for the controller. |
| 4 | Controller Analog Input | Set the analog input settings for the controller. |
| 5 | Controller Analog Output | Set the analog output settings for the controller. |
| 6 | Flange Digital Input | Set the digital input settings for the flange. |
| 7 | Flange Digital Output | Set the digital output settings for the flange. |
| 8 | Flange Analog Input | Set the analog input settings for the flange. |
| 9 | Refresh | Reset the settings to default values. |
