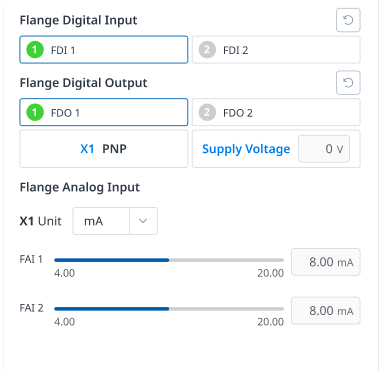

Flange I/O Port Setting

Flange Digital Input

1. Check the port number of the device connected to the flange.
2. The following is displayed depending on the digital input status of the corresponding number.
   • If the digital signal is a high signal, the icon is displayed in light green.
   • If the digital signal is a low signal, the icon is displayed in gray.

Note

• If the digital signal is High even when the digital input is set as the safety input, the icon is displayed in blue, and if it is Low, it is displayed in gray.

Flange Digital Output

1. Check the port number of the device connected to the flange.
2. Press the On/Off icon corresponding to the port number to activate or deactivate digital output.
   • When the On icon is pressed, the icon changes to light green and the corresponding port is enabled.
   • When the Off icon is pressed, the icon changes to light green and the corresponding port is disabled.

Flange Analog Input

1. Press the drop-down list on the flange analog input of the controller to select the item to check.
2. Check the flange analog input information of the selected item displayed on the screen.

Note

• The flange analog input value cannot set the input value in the status window.
